Overview
Tool operated lock keys are used on our range of tool operated water resistant locks and our tool operated locks.

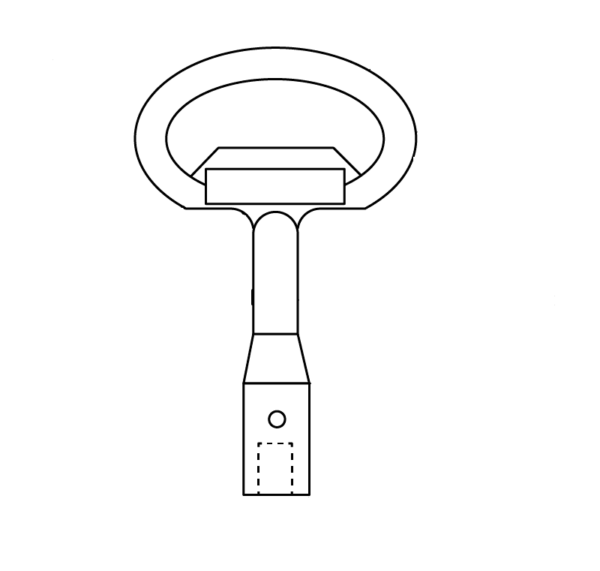

This is the basic key shape. Details of all the keys available can be found below.
3mm Double Barb Key
| Product Code: | F8074 |
|---|---|
| Key Diameter: | 13.3mm |
| Key Length: | 70mm |
| Key Width: | 56mm |
| Key Shape/Size: | 3mm Double Barb |
| Material: | Zamak |
| Compatible with: | 0014, F457, F445, F470 |
3mm Double Barb Key
| Product Code: | 9304672 |
|---|---|
| Key Diameter: | – |
| Key Length: | 90mm |
| Key Width: | 32mm |
| Key Shape/Size: | 3mm Double Barb |
| Material: | Zamak |
| Compatible with: | 0014 |
5mm Double Barb Key
| Product Code: | F8075 |
|---|---|
| Key Diameter: | 13.3mm |
| Key Length: | 70mm |
| Key Width: | 56mm |
| Key Shape/Size: | 5mm Double Barb |
| Material: | Zamak |
| Compatible with: | 0011, F464, F183, F471 |
5mm Double Barb Key
| Product Code: | 9304670 |
|---|---|
| Key Diameter: | – |
| Key Length: | 90mm |
| Key Width: | 32mm |
| Key Shape/Size: | 5mm Double Barb |
| Material: | Zamak |
| Compatible with: | 0011 |
6.5mm Triangle Key
| Product Code: | F8412-T6.5 |
|---|---|
| Key Diameter: | 13.3mm |
| Key Length: | 70mm |
| Key Width: | 56mm |
| Key Shape/Size: | 6.5mm Triangle |
| Material: | Zamak |
| Compatible with: | F354, F465 , F208, F472 |
6.5mm Triangle Key
| Product Code: | F8197 |
|---|---|
| Key Diameter: | 11mm |
| Key Length: | 70mm |
| Key Width: | 56mm |
| Key Shape/Size: | 6.5mm Triangle |
| Material: | Zamak |
| Compatible with: | F354, F465 , F208, F472 |
6mm Square Key
| Product Code: | F8412-C6M |
|---|---|
| Key Diameter: | 13.3mm |
| Key Length: | 70mm |
| Key Width: | 56mm |
| Key Shape/Size: | 6mm Square |
| Material: | Zamak |
| Compatible with: | B236, F463, F258, F187, F475 |
6mm Square Key
| Product Code: | 8005405 |
|---|---|
| Key Diameter: | 12mm |
| Key Length: | 90mm |
| Key Width: | 32mm |
| Key Shape/Size: | 6mm Square |
| Material: | Zamak |
| Compatible with: | B236, F463, F258, F187, F475 |
6mm Square Key (Female)
| Product Code: | F8080 |
|---|---|
| Key Diameter: | 13.3mm |
| Key Length: | 70mm |
| Key Width: | 56mm |
| Key Shape/Size: | 6mm Square (Female) |
| Material: | Zamak |
| Compatible with: | F476 |
7mm Square Key
| Product Code: | F8412-C7M |
|---|---|
| Key Diameter: | 13.3mm |
| Key Length: | 70mm |
| Key Width: | 56mm |
| Key Shape/Size: | 6mm Square |
| Material: | Zamak |
| Compatible with: | B971, 0012, F504, F184 |
7mm Square Key
| Product Code: | 9304671 |
|---|---|
| Key Diameter: | – |
| Key Length: | 90mm |
| Key Width: | 32mm |
| Key Shape/Size: | 7mm Square |
| Material: | Zamak |
| Compatible with: | 0012 |
7mm Triangle Key
| Product Code: | F8412-T7M |
|---|---|
| Key Diameter: | 13.3mm |
| Key Length: | 70mm |
| Key Width: | 56mm |
| Key Shape/Size: | 7mm Square |
| Material: | Zamak |
| Compatible with: | C675, B884, F7B, F254 |
7mm Triangle Key
| Product Code: | 8005403 |
|---|---|
| Key Diameter: | 12mm |
| Key Length: | 90mm |
| Key Width: | 32mm |
| Key Shape/Size: | 7mm Square |
| Material: | Zamak |
| Compatible with: | C675, B884, F7B, F254 |
8mm Square Key
| Product Code: | F8412-C8M |
|---|---|
| Key Diameter: | 13.3mm |
| Key Length: | 70mm |
| Key Width: | 56mm |
| Key Shape/Size: | 8mm Square |
| Material: | Zamak |
| Compatible with: | F274, F186, F478 |
8mm Triangle Key
| Product Code: | F8412-T8M |
|---|---|
| Key Diameter: | 13.3mm |
| Key Length: | 70mm |
| Key Width: | 56mm |
| Key Shape/Size: | 8mm Triangle |
| Material: | Zamak |
| Compatible with: | 5524-0100, B576, F428-H, F428-AH, B929, 0013, F458, F48, F174, F262, F185, F473 ,C987 , F600, F550 |
8mm Triangle Key
| Product Code: | 8005401 |
|---|---|
| Key Diameter: | 12mm |
| Key Length: | 90mm |
| Key Width: | 32mm |
| Key Shape/Size: | 8mm Triangle |
| Material: | Zamak |
| Compatible with: | 4282-1400, 4283-1400, 4284, 5500-0501, 5502-0100, 5503-0100 |
8mm Triangle Key
| Product Code: | 9304673 |
|---|---|
| Key Diameter: | 90mm |
| Key Length: | 32mm |
| Key Width: | 56mm |
| Key Shape/Size: | 8mm Triangle |
| Material: | Zamak |
| Compatible with: | 4282-1400, 4283-1400, 4284, 5500-0501, 5502-0100, 5503-0100 |
9mm Triangle Key
| Product Code: | F8412-T9M |
|---|---|
| Key Diameter: | 13.3mm |
| Key Length: | 70mm |
| Key Width: | 56mm |
| Key Shape/Size: | 9mm Triangle |
| Material: | Zamak |
| Compatible with: | B900, F146, F209 |
| Product Code: | 80054-0100 |
|---|---|
| Compatible with: | 2401, 4282, 4283, 4284, 4285, 5500 |
| Product Code: | 87343-0401DA |
|---|---|
| Compatible with: | 5505 |
