Overview
Keying Details
Keyed to pass: All locks have the same key number (Differ number), with one key opening all locks.
Keyed to differ: All locks have different key numbers (Differ number), each lock requiring its own key to open.
Note: Locks can also be supplied ‘Keyed in sets to pass’ – ‘Each set to differ’. This arrangement caters for places such as offices, hotel rooms and hospital rooms where all units in a given room will operate one key number, but differ from adjoining rooms.
D.N.O.C.: (Differ Number On Cap) will result in the key number being stamped on the lock front (cap). This assists in obtaining replacement keys if they are lost.
Mastering: Key series can be mastered at extra cost.
Please see the list below highlighting the Key Series available, and their attributes.
| Image | Series | Description | Discs | Levers | Pins | Entry | Combs. | Code Numbers |
|---|---|---|---|---|---|---|---|---|
 |
FFE | 5 Disc | 5 | Single | 4 | FFE 3, 8, 17, 31 | ||
 |

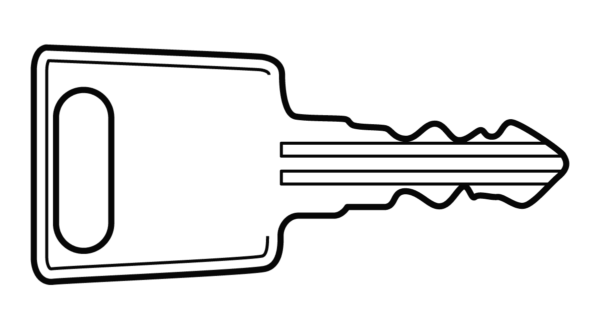

H | 4 Disc | 4 | Double | 50 | H500 – H550 | ||
 |

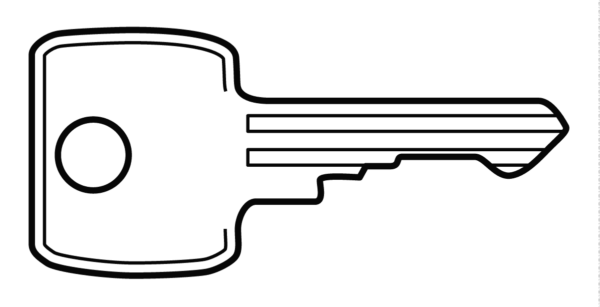

FS | 5 Disc | 5 | Single | 80 | FS 876 – FS 995 | ||
 |

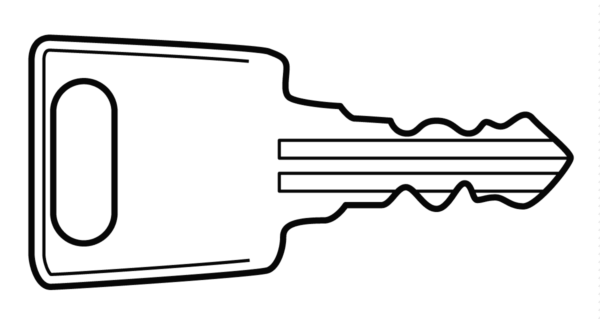

1F | 5 Disc | 5 | Double | 200 | 1F001 – 1F200 | ||
 |
FH | 5 Disc | 5 | Double | 200 | FH001 – FH200 | ||
 |

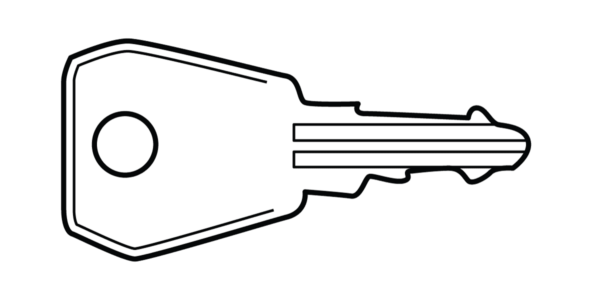

800 | 5 Disc | 5 | Double | 200 | 801 – 1000 | ||
 |

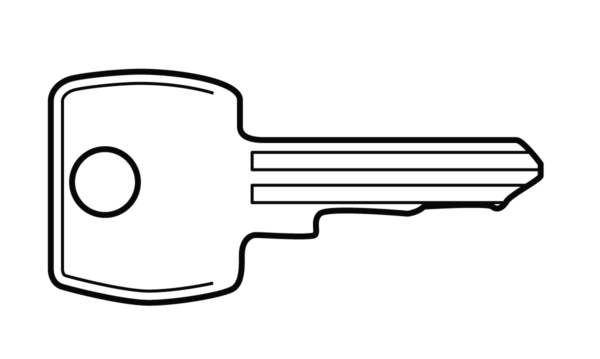

92 | 5 Disc | 5 | Single | 200 | 92201 – 92400 | ||
 |

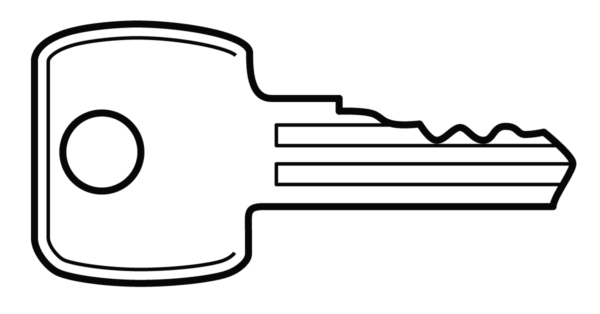

A.C.E.Y.Z | Refer to sales department for specific information | Single | |||||
 |

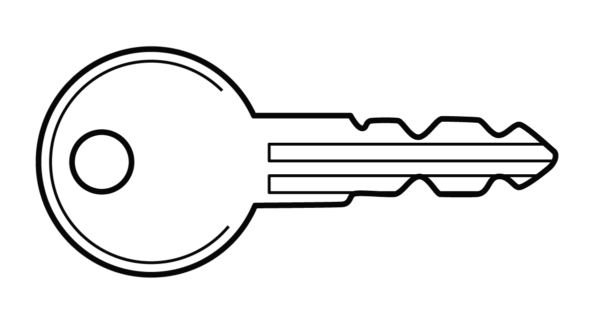

89 | 5 Disc | 5 | Double | 200 | 89001 – 89200 | ||
 |

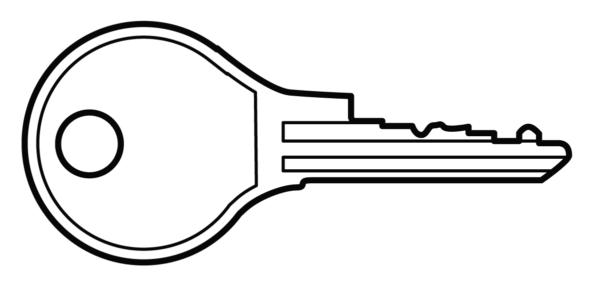

2D | 5 Disc | 5 | Single | 200 | 2D001 – 2D200 | ||
 |

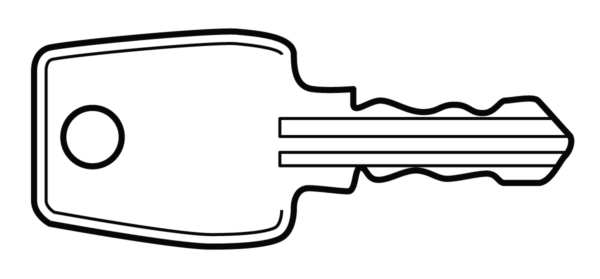

93E | 5 Disc | 5 | Double | 200 | 93401 – 93600 | ||
 |

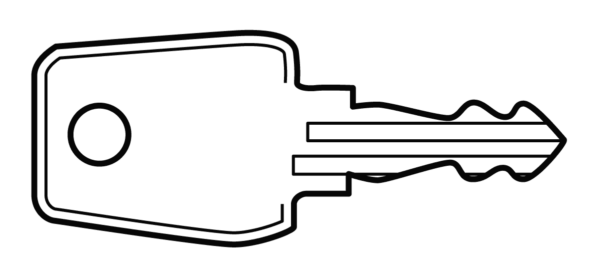

9000 | 5 Disc | 5 | Double | 500 | 9001 – 9500 | ||
 |

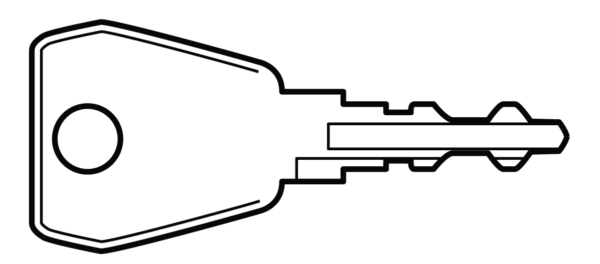

35 | Removable barrel series | 6 | Double | 500 | 35000 – 35499 | ||
 |

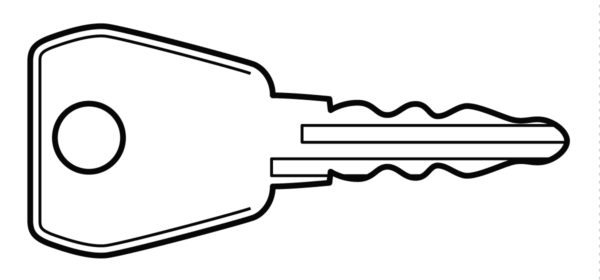

18 | 6 Disc | 6 | Double | 1000 | 18000 – 18999 | ||
 |

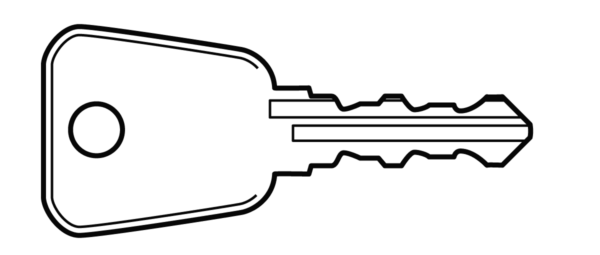

64 | 6 Disc | 6 | Double | 1000 | 64001 – 65000 | ||
 |

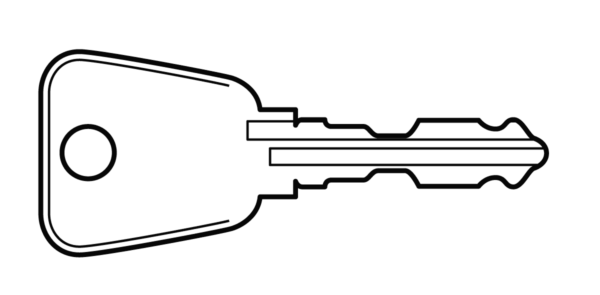

66-67 | 8 Disc | 8 | Double | 1200 | 66001 – 67200 | ||
 |

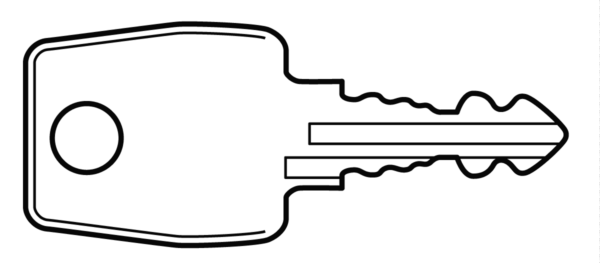

2000 | 7 Disc | 7 | Double | 2000 | 2001 – 4000 | ||
 |

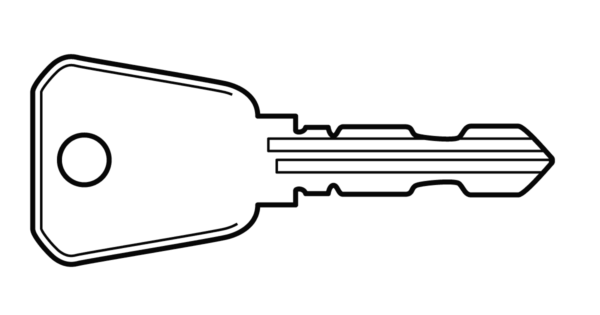

85-87 | 8 Disc | 8 | Double | 2000 | 85001 – 87000 | ||
 |

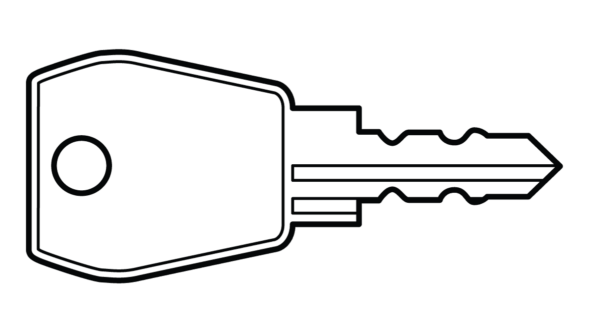

25-27 | 7 Disc | 7 | Double | 2000 | 25001 – 27000 | ||
 |

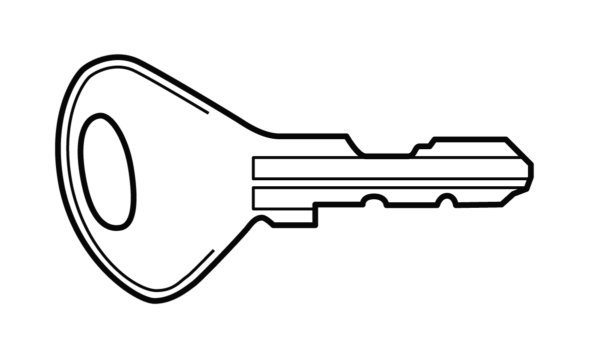

95-97 | 10 Disc | 10 | Single | 2000 | 95001 – 9700 | ||
 |

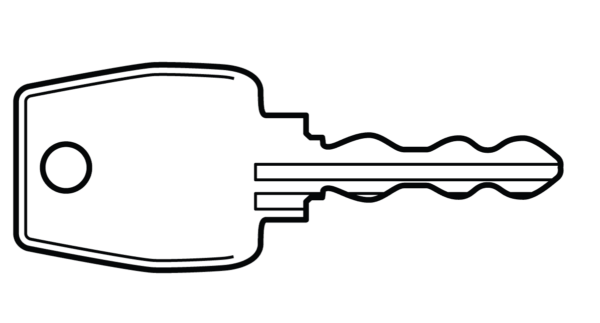

45-47 | 10 Disc | 10 | Double | 2000 | 45001 – 47000 | ||
 |

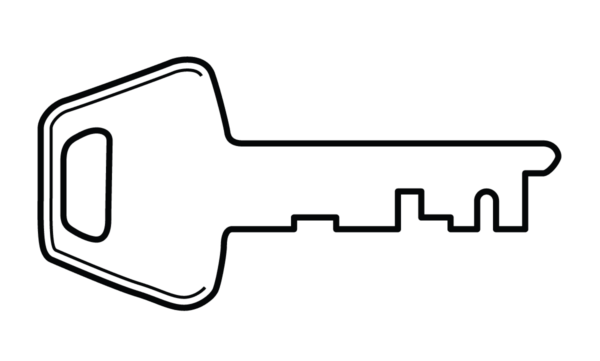

ZA, ZC, ZE, ZF, ZG, ZL | Lever Lock | 7 | Single | 1800/2000 | Various | ||
 |

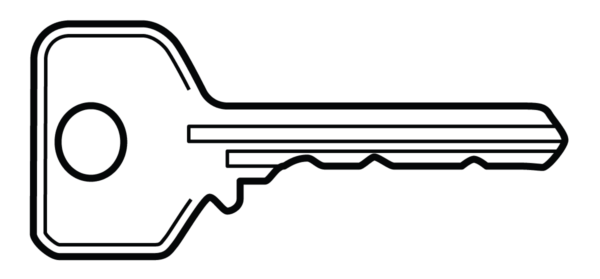

7400 | In-line pin | 4 | Single | 690 | 0001 – 0690 | ||
 |

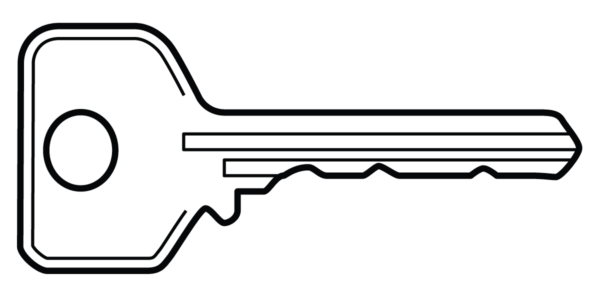

7500 | In-line pin | 5 | Single | 3200 | 1001 – 3200 | ||
 |

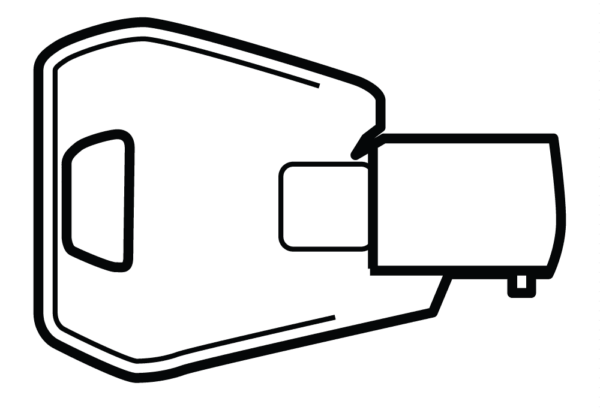

37 | Radial pin, non mastered | 7 | Single | 10000 | 370001 – 379999 | ||
 |

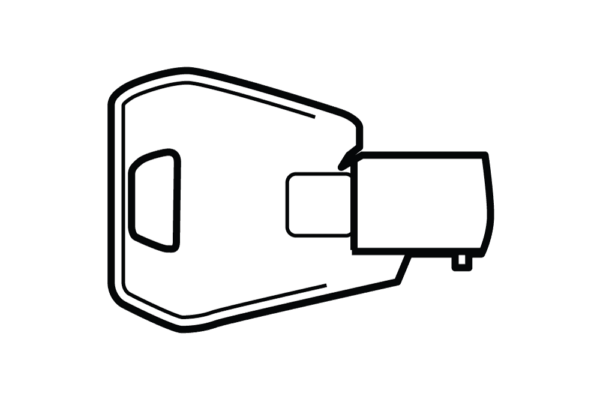

31 | Radial pin, mastered | 7 | Single | 10000 | 310001 – 319999 | ||
 |

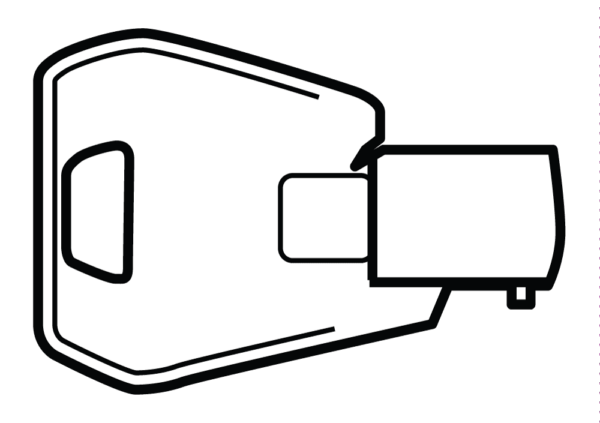

28 | Radial pin, non mastered | 7 | Single | 10000 | 280001 – 28999 | ||
 |

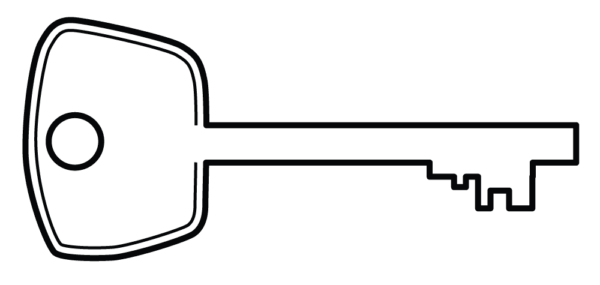

40 | Lever Lock | 7 | Single | 6000 | 400001 – 406000 | ||
 |

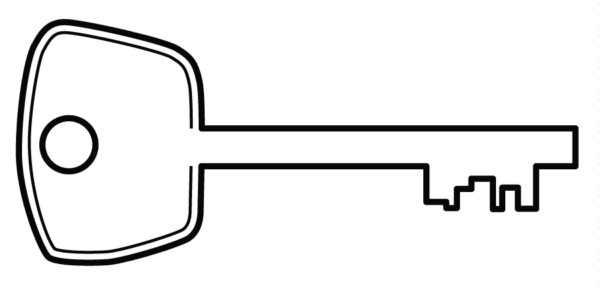

41 | Lever Lock | 7 | Single | 1000 | 410001 – 411000 | ||
 |

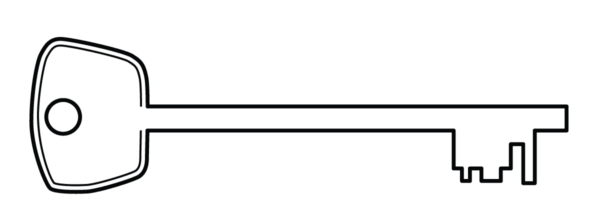

42 | Lever Lock | 7 | Single | 4050 | 420201 – 428400 | ||
 |
43 | Lever Lock | 7 | Single | 1600 | 430001 – 431600 | ||
|
|

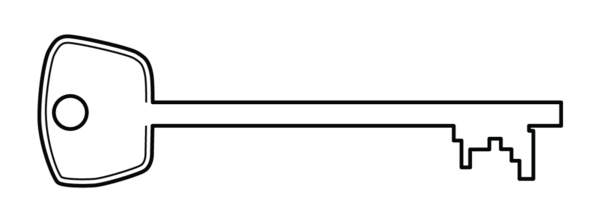

49 | Lever Lock | 7 | Single | 2000 | 491000 – 493000 | ||
 |

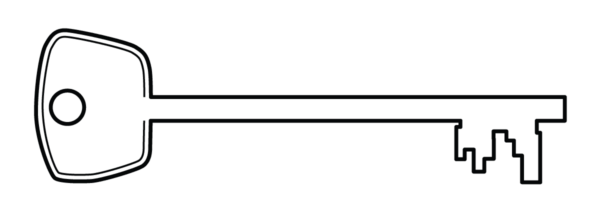

55 | Lever Lock | 7 | Single | 10000 | 491000 – 492000 | ||
 |

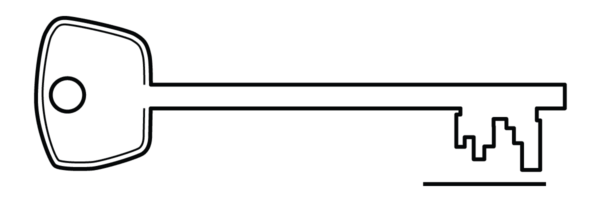

57 | Lever Lock | 7 | Single | 1600 | 570001 – 571600 | ||
 |

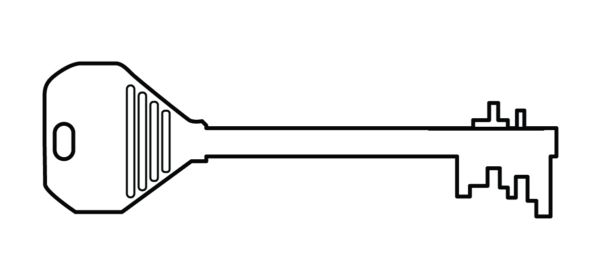

SR1 | Lever lock, double bitted | 8 | Single | 80000 | S00001 – S80000 |
