Accessories

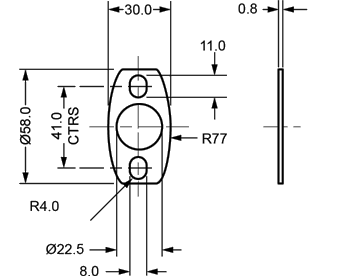

Used for general handle products.
Material: Neoprene
Gasket Product No: 6700101

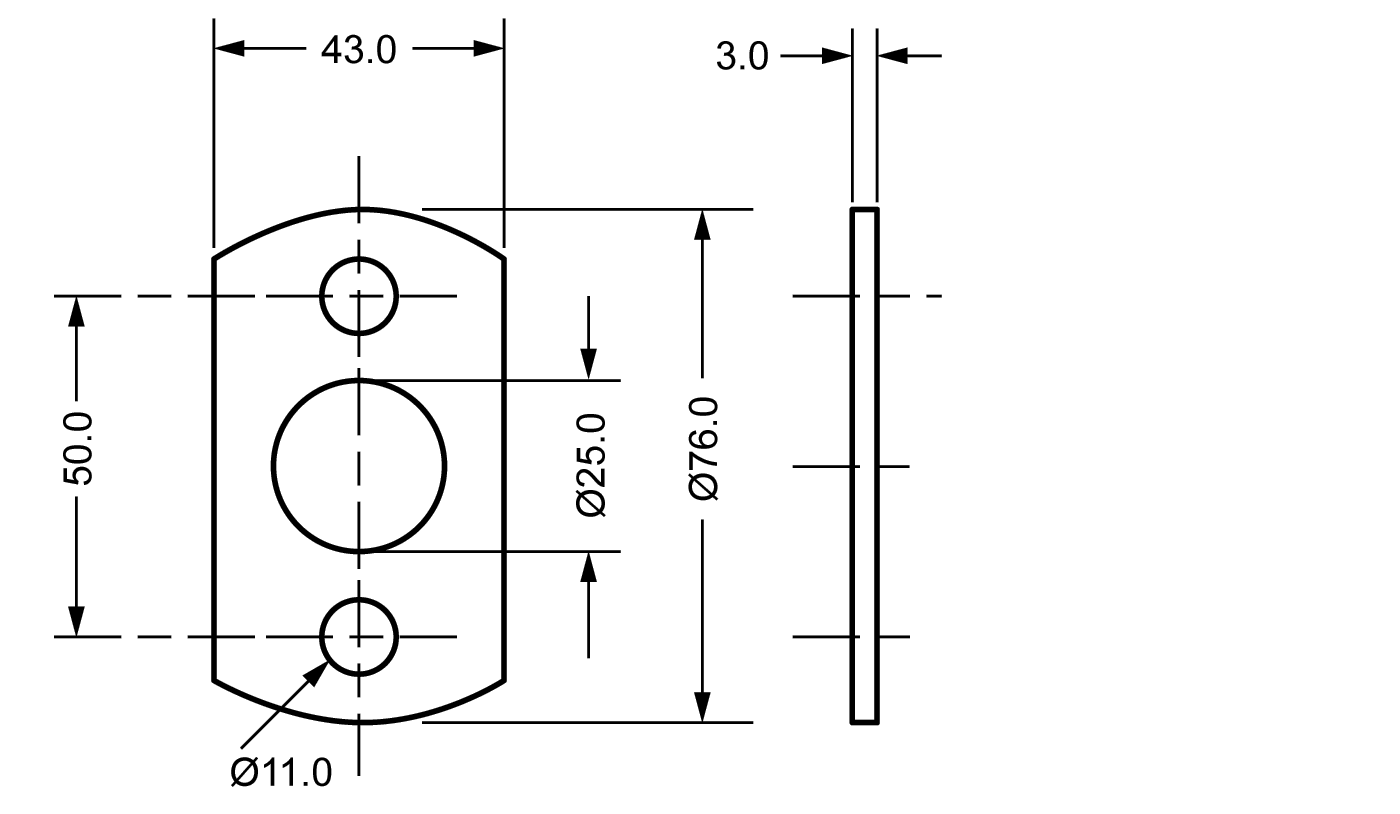

For 1616 Garage Door handle only.
Material: Plain expanded E.P.D.M. closed cell sponge
Gasket Product No: 6700201

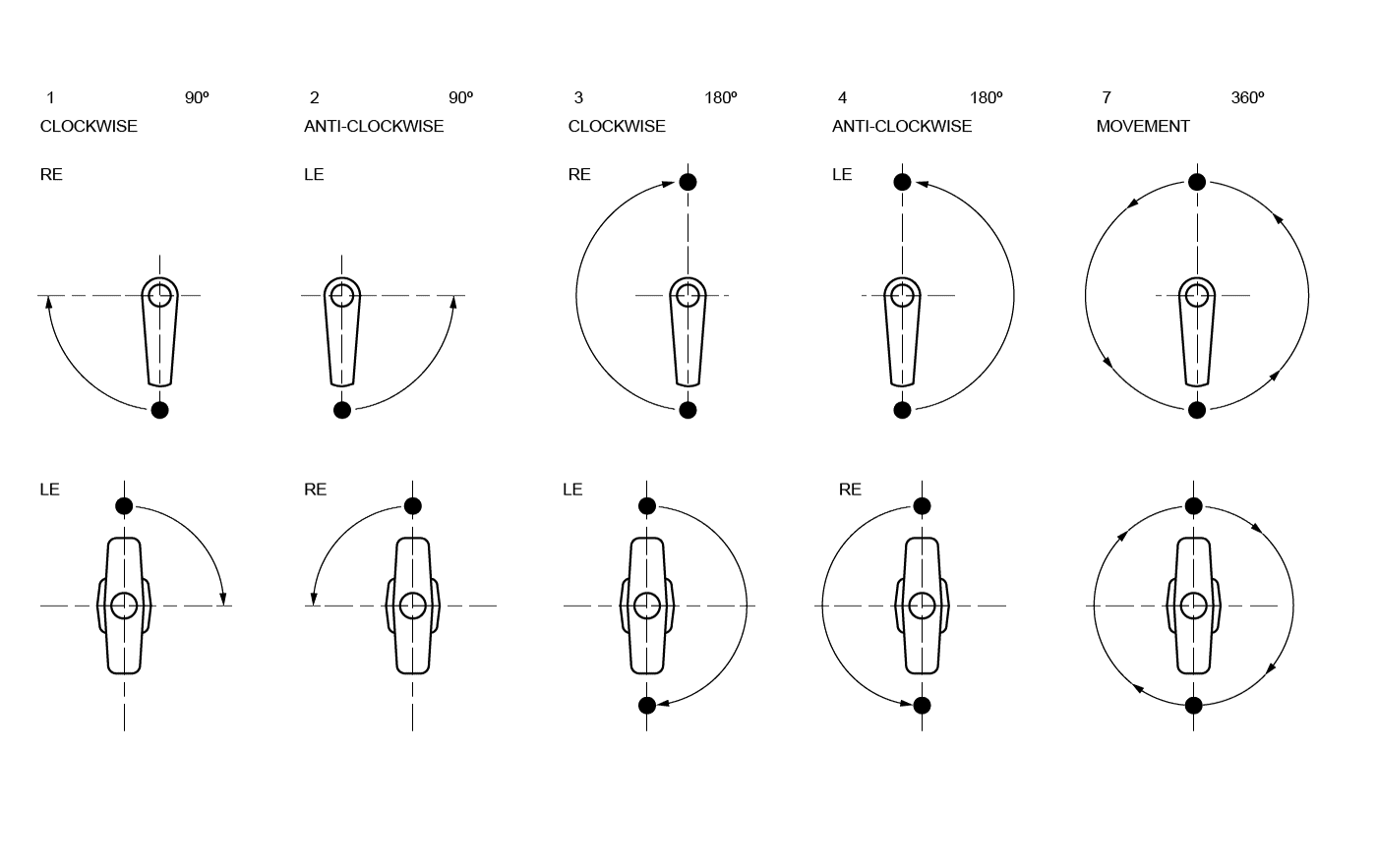

Handle Movements
RE = Right edge of door
LE = Left edge of door
To unlock handles turn key 180° anti-clockwise
Views are shown looking on front face of handle

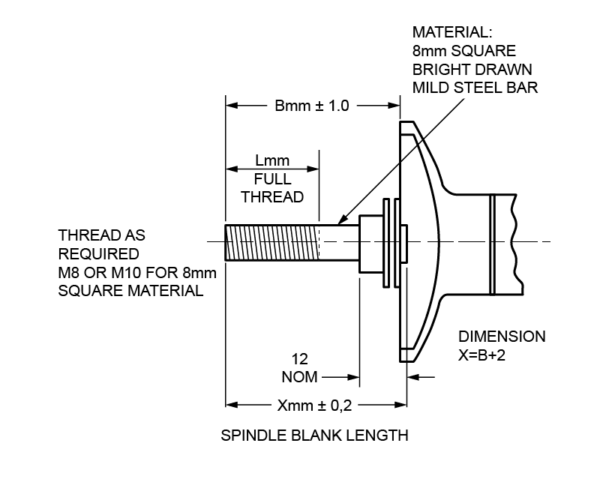

| SPINDLE DATA FOR ALL HANDLES WITH 8MM SQUARE SPINDLE | ||||
|---|---|---|---|---|
 |
SPINDLE DESIGNATION | |||
|
EXAMPLE
98 PART No. FOR 8mm PLAIN SPINDLES COMMENCING… 978
PART No. FOR M8 THREADED SPINDLES……………………. 98 PART No. FOR M10 THREADED SPINDLES………………….. 99 |
||||
|
50
3rd AND 4th DIGITS WILL INDICATE LENGTH OF FULL THREAD REQUIRED, TO A MAXIMUM OF 99mm (IN THE CASE OF PLAIN SPINDLES THIS WILL READ ‘O’) |
||||
|
070
5th, 6th AND 7th DIGITS WILL INDICATE BLANK LENGTH OF SPINDLE
|
||||
| EXAMPLE INDICATES AN 8mm THREADED SPINDLE WITH A BLANK LENGTH OF 70mm AND 50mm OF FULL THREAD |
||||
