G and H Cams
1st Number 2nd Number 3rd Number 4th & 5th Number 6th & 7th Number REFERENCE

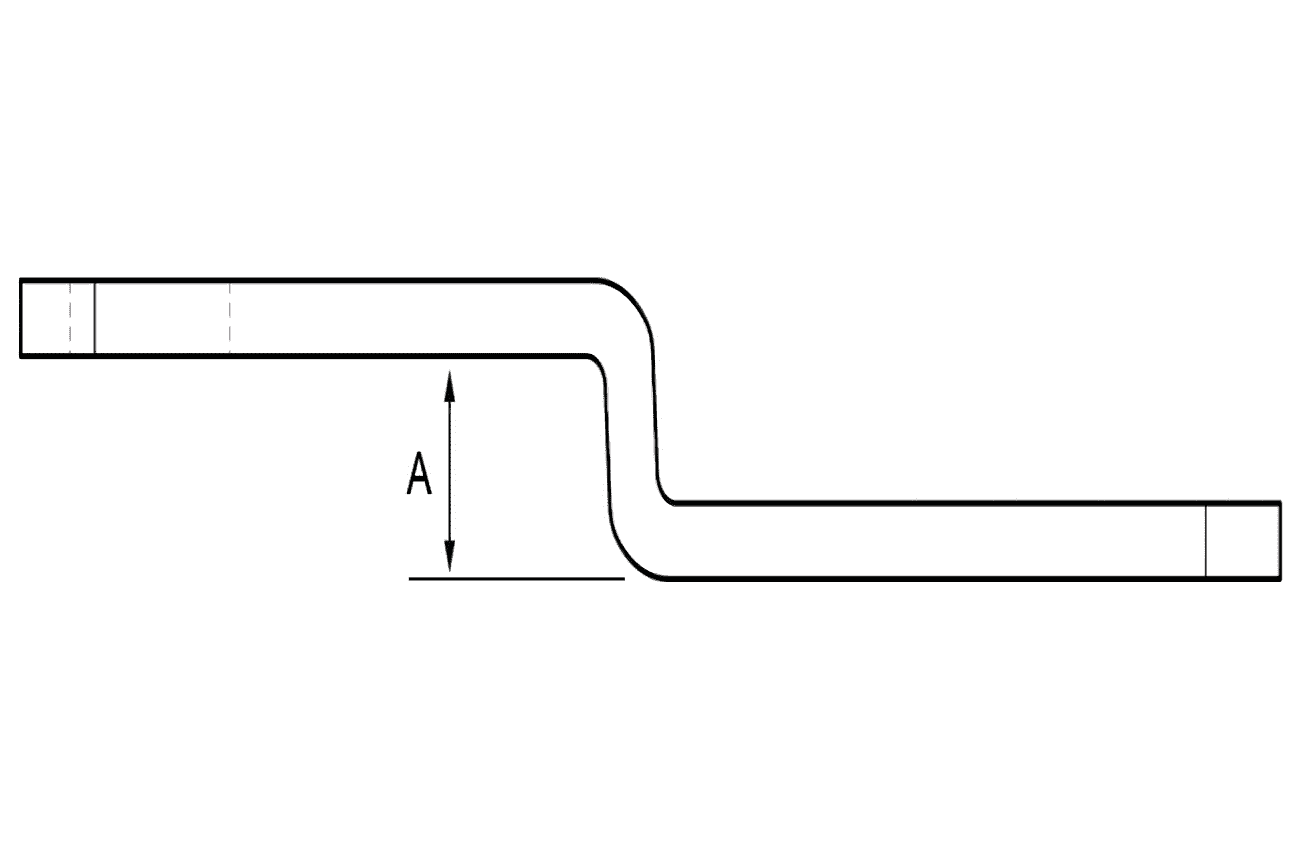

CAM PIERCING CAM THICKNESS SHAPE DIMENSION ‘A’

(CRANK OFFSET)

DIMENSION ‘B’

(PIERCING TO END/NOTCH)

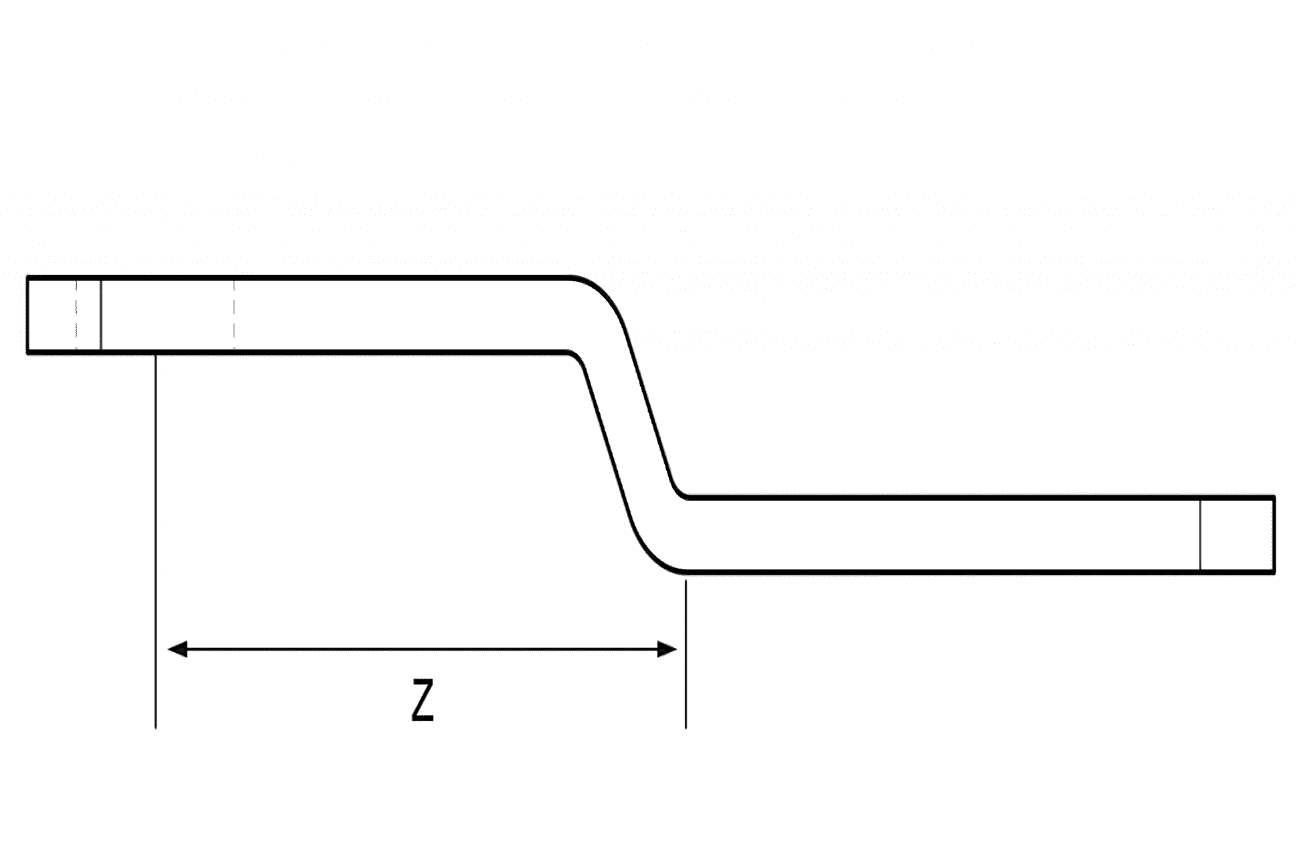

DIMENSION ‘Z’ MAX.

(PIERCING TO END OF CRANK)

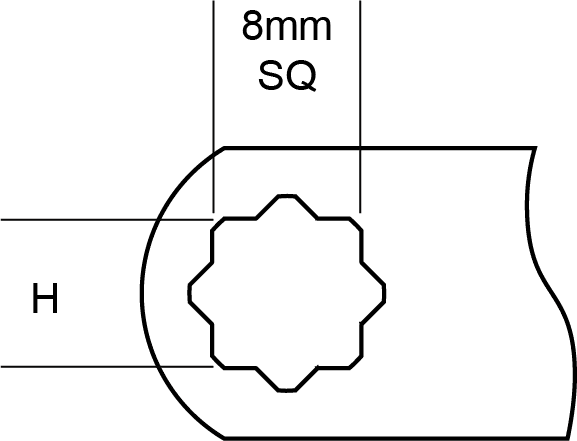

H

3 = 2.8mm 1

02 (0.8mm)
04 (1.6mm)
06 (2.4mm)
08 (3.2mm)
10 (4.0mm)
12 (4.8mm)
14 (5.6mm)
16 (6.4mm)
18 (7.2mm)
20 (7.9mm)
24 (9.5mm)
28 (11.1mm)
30 (11.9mm)
32 (12.7mm)
34 (13.5mm)
38 (15.1mm)
42 (16.7mm)
44 (17.5mm)
48 (19.1mm)
64 (25.4mm)
72 (28.6mm)
75 (29.8mm)

02 (36.0mm)
04 (36.0mm)
06 (36.0mm)
08 (35.8mm)
10 (35.8mm)
12 (35.7mm)
14 (35.6mm)
16 (35.5mm)
18 (35.5mm)
20 (35.4mm)
24 (35.3mm)
28 (35.1mm)
30 (35.1mm)
32 (35.0mm)
34 (34.9mm)
38 (34.8mm)
42 (34.6mm)
44 (34.6mm)
48 (34.4mm)
64 (33.9mm)
72 (33.6mm)
75 (33.5mm)

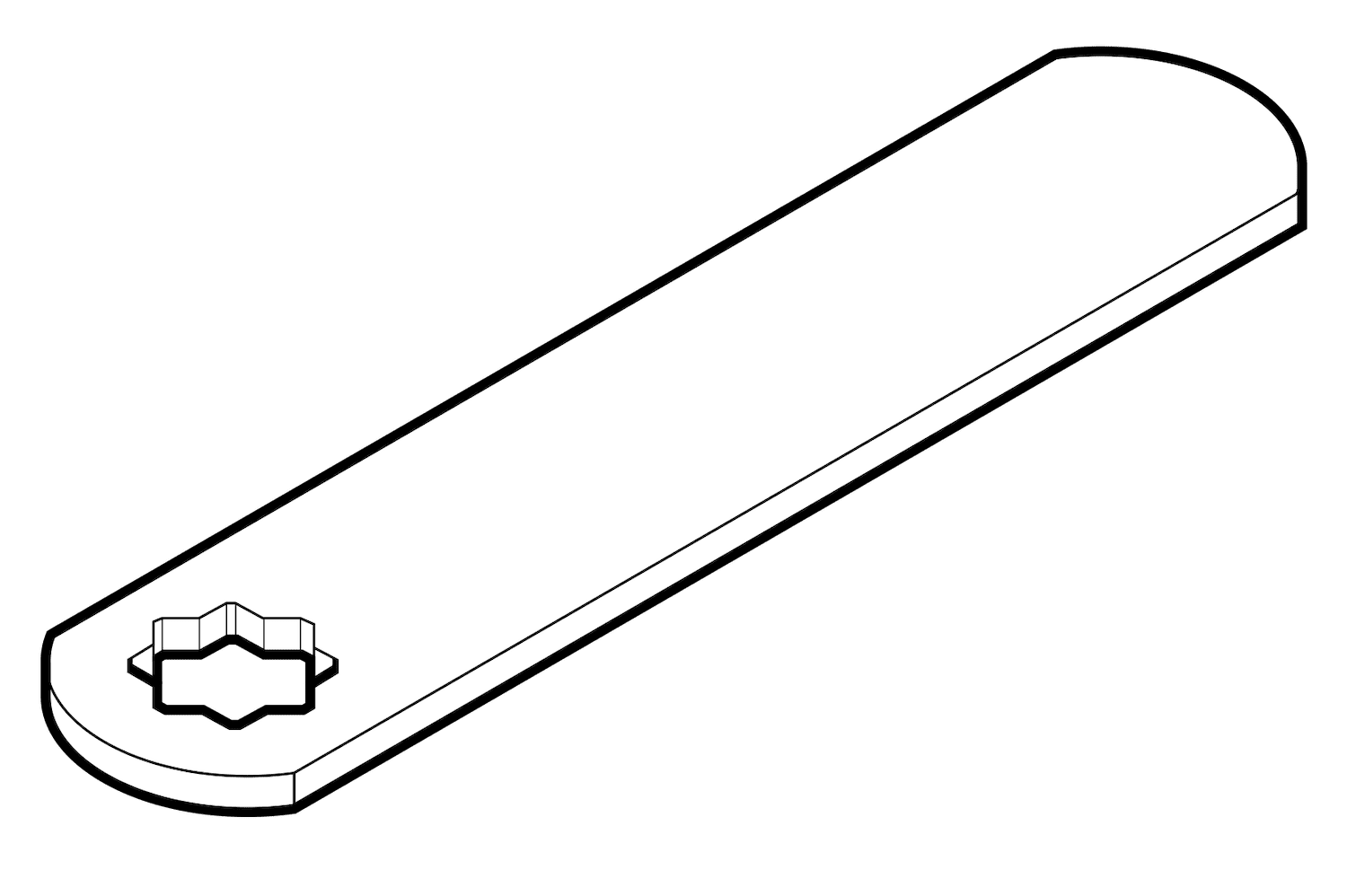

2

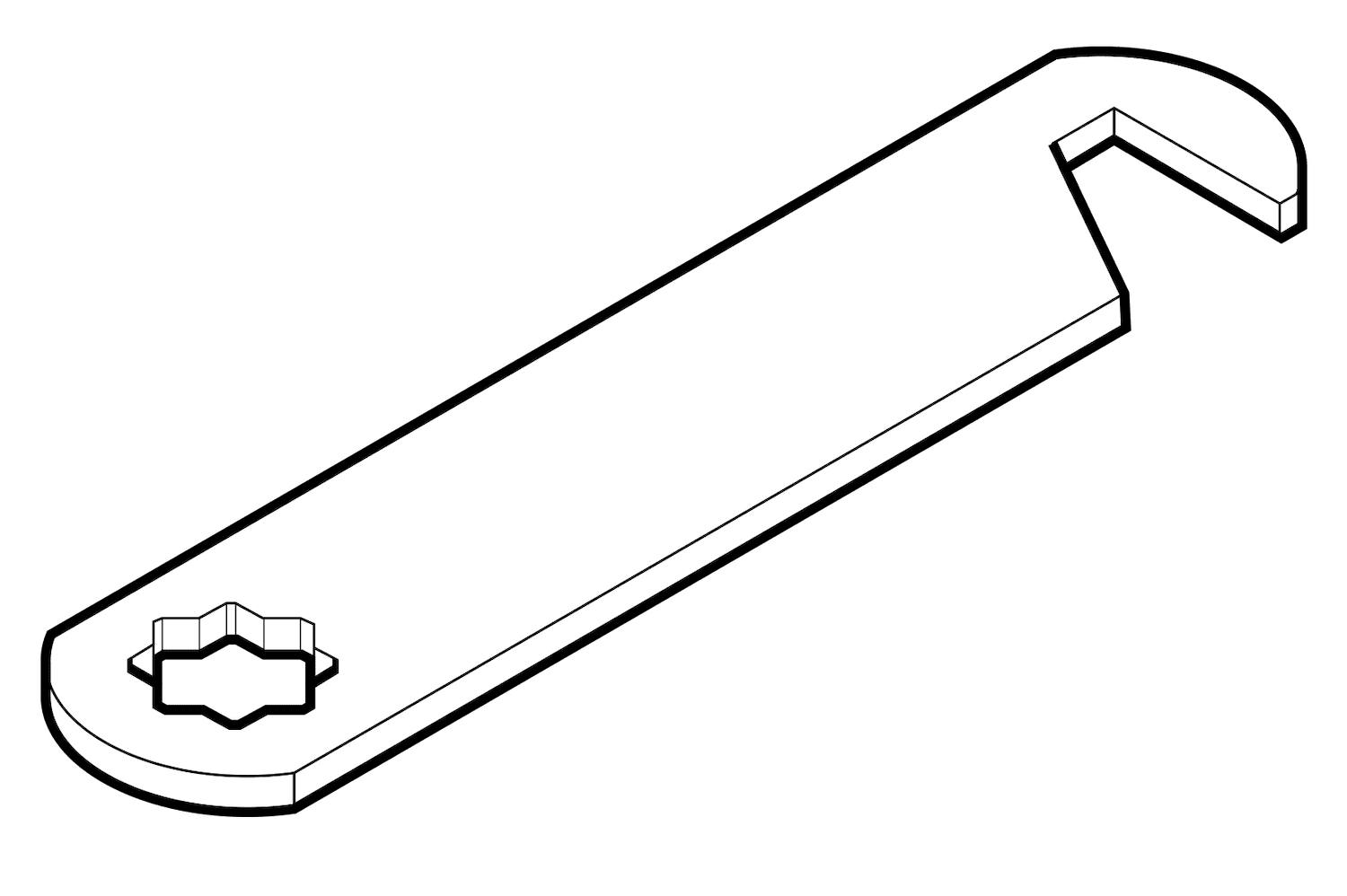

4
G

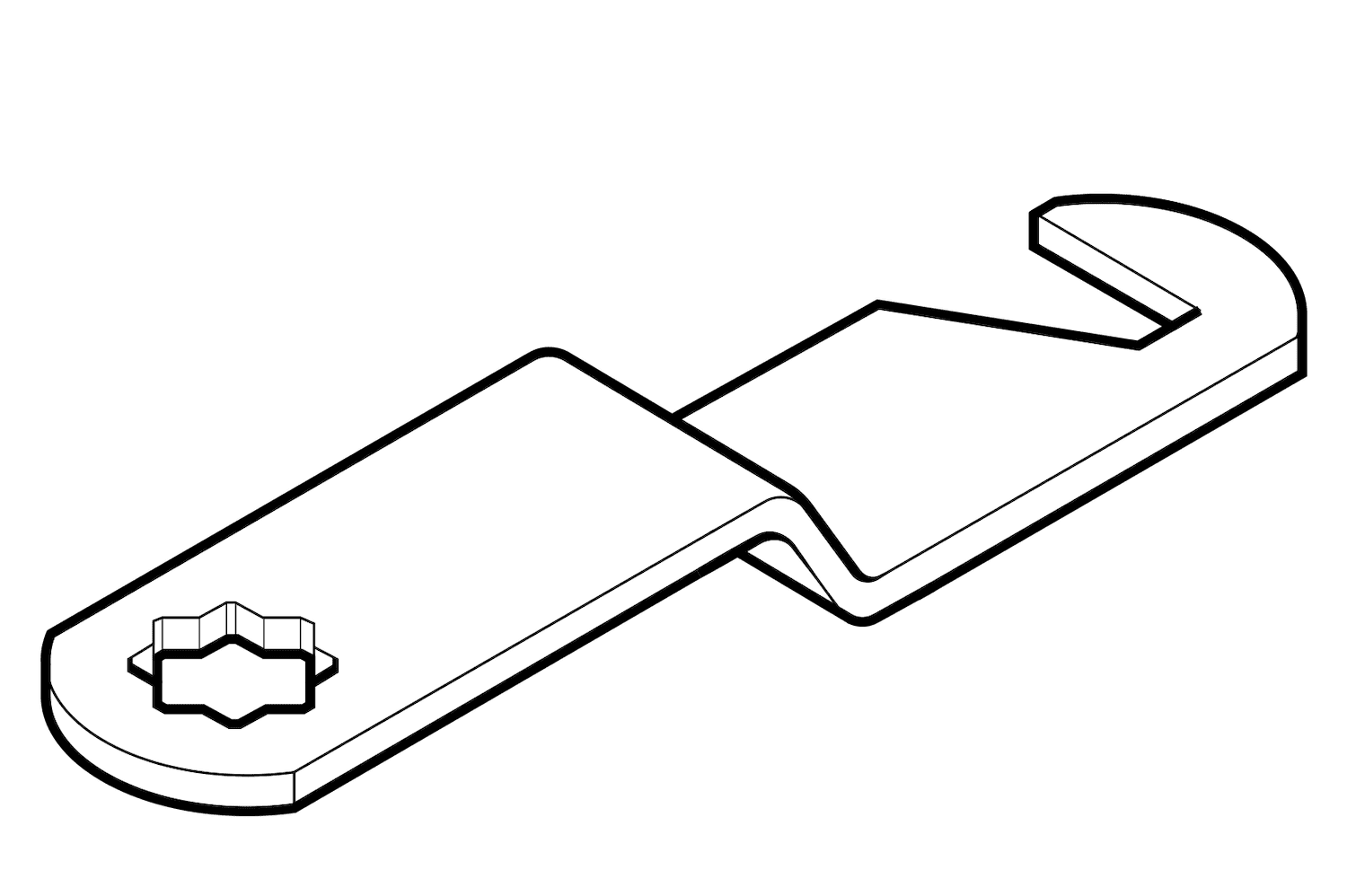

7

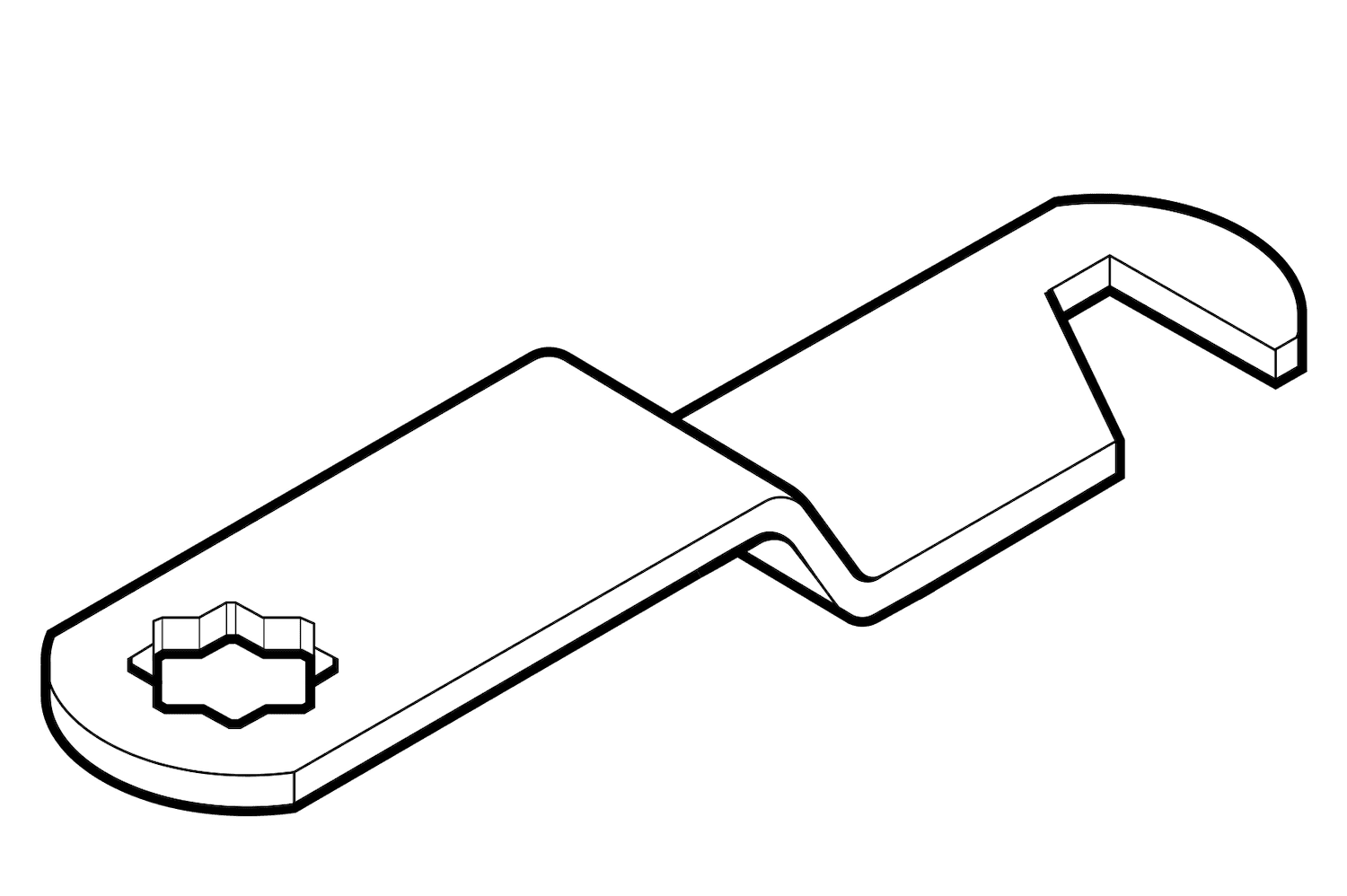

8
