Espagnolet Accessories

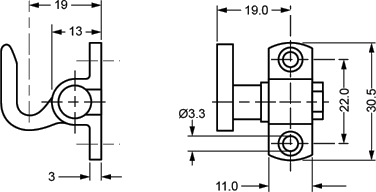

HOOK ASSEMBLY TOP PRODUCT No.
8010507 – BRIGHT NICKEL PLATE
8010509 – BLACK CHROME
HOOK ASSEMBLY BOTTOM PRODUCT No.
8010517 – BRIGHT NICKEL PLATE
8010519 – BLACK CHROME

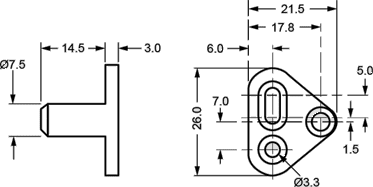

ANCHOR PLATE PRODUCT No.
8010707 – BRIGHT NICKEL PLATE
8010709 – BLACK CHROME
ROD GUIDE PRODUCT No.
8010607 – BRIGHT NICKEL PLATE
8010599 – BLACK CHROME
ROD PRODUCT No.9061801
8808001 – BRIGHT NICKEL PLATE
LENGTH TO CUSTOMER REQUIREMENT
MAX 2000mm SUPPLIED WITH PVC
SLEEVE FOR BLACK FINISH.

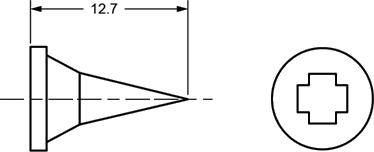

FIXING SCREWS –
TWINSTART ‘POZIDRIVE’ WOODSCREW

(2 PER ASSEMBLY)
PRODUCT No.
RECOMMENDED PILOT HOLE SIZE:
HARDWOODS AND HIGH DENSITY
BOARDS Ø 2.5 X 7.2 DEEP
SOFT WOODS AND LOW DENSITY BOARDS Ø
1.8 X 7.2 DEEP
FIXING SCREWS – ‘POZIDRIVE SCREW
PRESS IN DOWEL

(2 OFF EACH PER ASSEMBLY)
PRODUCT No.
PRODUCT No.
‘POZIDRIVE’ SCREW 9084708

PRESS IN DOWEL 9203005
RECOMMENDED HOLE SIZE – Ø 8.0 X 8.0 DEEP
