IP65 Rated Electronic Lock 3781

Featuring an IP65 rating, the wet area electronic kit lock 3781 offers complete water resistance and uncompromising performance in difficult environments.

This electronic code lock is built for tough wet and chlorinated environments, boasting an impressive IP65 rating, it’s completely waterproof and dustproof, meaning that security is maintained in wet, humid and even outdoor environments.

View Lock Details

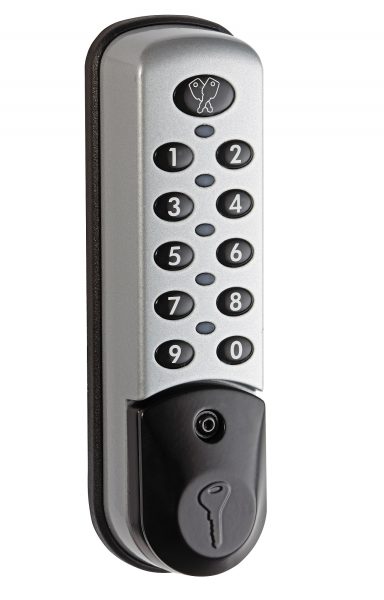

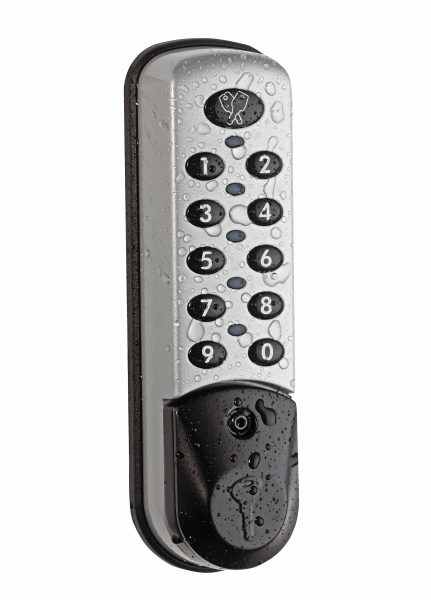

Wet Area Electronic Lock 3781
Wet Area Electronic Lock 3781
Wet Area Electronic Lock 3781
Wet Area Electronic Lock 3781

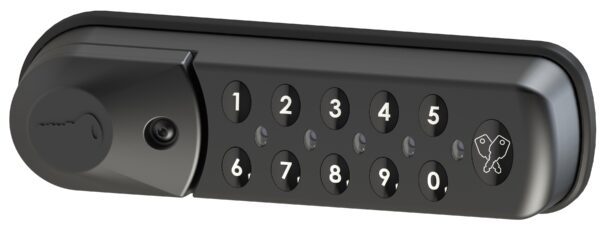

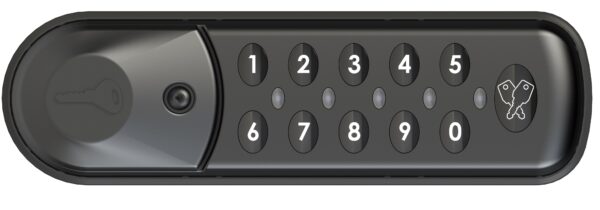

Right Hand Wet Area Electronic Lock 3781
Right Hand Wet Area Electronic Lock 3781
Right Hand Wet Area Electronic Lock 3781
Right Hand Wet Area Electronic Lock 3781
  • Wet Area Electronic Lock 3781
  • Wet Area Electronic Lock 3781
  • Right Hand Wet Area Electronic Lock 3781
  • Right Hand Wet Area Electronic Lock 3781
Featured Technicals
Brochure
Brochure
Drawing
Lock Description

Program multiple user codes for ultimate control. Set a master code for overall access, sub-master codes for designated groups and individual user codes for personalized entry, plus, a trusty steel override key is included for instances when a code is forgotten.

For further information email or contact us on +1 (616) 994 0490.

User, Programming and Installation instructions can be found in the Downloads section below.

*Please note: 2mm allen key is required to remove the wet area cap



Enhanced Security: Waterproof locks provide reliable protection against unauthorized access, safeguarding valuables and providing peace of mind for users.

Durability: Built with corrosion-resistant materials, these locks and their internal components can withstand moisture and chlorine exposure without performance being affected.

User-friendly: Many of our wet area locks offer keyless entry options such as digital codes or RFID technology, removing the need for physical keys which can be easily lost and simplifying access management.

Improved Hygiene: Without the need for shared keys and minimizing physical contact, wet area locks contribute to maintaining a more hygienic environment.



Applications

Wet Area Locks are well-suited various settings

  • Locker Rooms
  • Swimming Pools
  • Spas and Saunas
  • Gyms and Fitness Centers
  • Outdoors
Have a question?
Contact Us
Lock Options
Product Code Body Height Body Width Body Depth Inquire
3781 140 41 32.5 Contact Sales
Standard Features
  • Public or private user modes
  • Vertical, left and right-hand keypads
  • Black, silver or white color
  • 8-digit master code
  • 6-digit sub-master code
  • 4-digit user code
  • Mechanical steel override key
  • 2 x AA batteries (included)
  • Up to 80,000 cycles per pair of batteries
  • Battery condition indicator
  • LED indicator lights
  • Two or three-point mounting
  • Audible keypad
  • Auto unlock mode
  • Additional colors and finishes available
  • Spindle length: 16mm or 20mm

Optional Features

  • Available with Remote Allocation System (RAS)
  • Door open alarm
  • Alternative colors
  • Pre-programmed modes and codes
  • Customized logo

Additional Information

IP65 Rated Electronic Lock 3781 technical drawing

Lowe & Fletcher 3781 Wet Area Locks (Word Format)

Lowe & Fletcher 3781 Wet Area Locks (PDF Format)

Part Number Guide – 3781/-/-/-/-/–

Product Number Barrel
Length		 Keypad
Orientation		 Finish Colour RAS
3781
Wet Area
DCL		 1
16mm		 1
Vertical		 1
Powder Coat		 A
White		 -R
2
RH		 B
Black
2
20mm		 3
LH		 E
Silver

Zenith – Change Master Code

Zenith – Change the User Code using the Master Code

Zenith – Change the User Code using the User Code

Zenith – Check Battery Condition

Zenith – Close lock in ‘Private’ Mode

Zenith – Close lock in ‘Public’ Mode

Zenith – Open lock using the Master Code

Zenith – Open lock using the User Code

Zenith – Set lock to ‘Private’ Mode

Zenith – Set lock to ‘Public’ Mode
