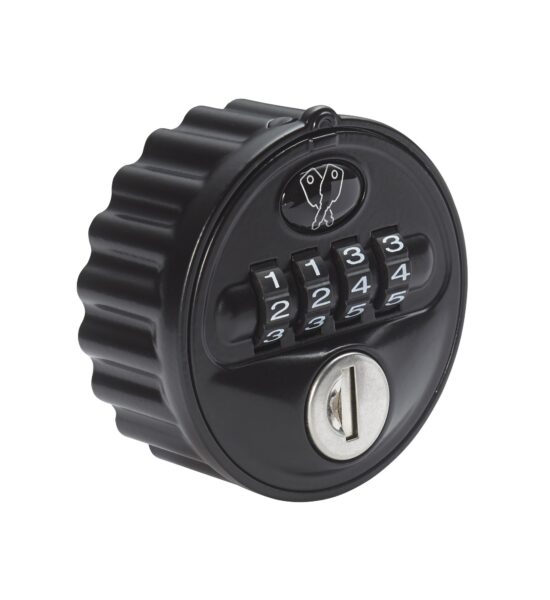

Wet Area Combination Lock 2810
The 2810 wet area combination lock is a 4-wheel combination lock designed for use in chlorinated environments. Available in single-use public mode and private mode*, and featuring up to 10,000 unique combinations, this corrosion resistant combination lock is ideal for use on lockers and personal storage areas in gyms, spas, swimming pools and leisure facilities.
For added security this lock is available with an optional ‘twist resist’ feature. This option provides the lock with increased resistance to forced entry. For more information please see below. Note: customer to specify fitting option choice at time of order.
Additional features allow the user to set their own pin code and change it at any time using a simple steel key (private mode only), whilst the code finding function allows emergency access in the event of lost or forgotten codes. The Xylan finish ensures corrosion resistance and fitting is made easy by the standard industry footprint.
User and Installation Guides can be found in the Downloads section below.
*NOTE: User mode MUST be specified at time of order – lock CANNOT be switched between public and private mode.
| Product Code | Housing Mounting | Cam Mounting | Code Combinations | Body Length | Body Width | Body Depth | Finish | Lock Feature | Inquire |
|---|---|---|---|---|---|---|---|---|---|
| 2810 | Nut mounting | Screw | 10000 | 20 | 56 | 28 | Black Xylan | Standard | Contact Sales |
- Versions:
- Public and private mode available
- Standard fit with countersunk screws
- Twist resist with pan head screws
- Movement:
- 1 – Right Hand (clockwise to open)
- 2 – Left Hand (counterclockwise to open)
- Zinc die-cast construction
- Combinations: 4-Wheel combination (10,000 codes)
- Code finding feature: 10 Disc barrel with shutter cap
- Code changing function: only accessible in the un-locked position
- Finish:
- Xylan finish – corrosion resistant as standard
- Body and Face – black as standard
- Diameter: 56 x 28mm (protrudes from door frame)
- Nut fixing: 3/4” – 27 UN x 20mm long (15.9mm A/F)
- Cam fixing: 8mm Sq. with M4 thread
- Epoxy logo badge (customer logo available on request)
- Length 20
Additional Information
Part Number Guide – 2810/-/-/-/–/——-
| Product Number | Operating Mode | Barrel | Movement | Cover Plate Finish | Fitting Options |
|
2810 |
V Private Mode |
0 Non-Mastered |
1 Right Hand (clockwise to open) |
3B Black |
9525001 Option 1 Standard Fit |
|
9525002 Option 2 Twist Resist |
|||||
|
9525003 Option 3 Twist Resist |
|||||
|
L Public Mode |
5 Mastered |
2 Left Hand (counterclockwise to open) |
9525004 Option 4 Twist Resist |
||
|
9525005 Option 5 Twist Resist |
Mechanical Combination Lock 2800/2810 – Close Lock
Mechanical Combination Lock 2800/2810 – Code finder function
Mechanical Combination Lock 2800/2810 – Open Lock
Mechanical Combination Lock 2800/2810 – Set a new User Code

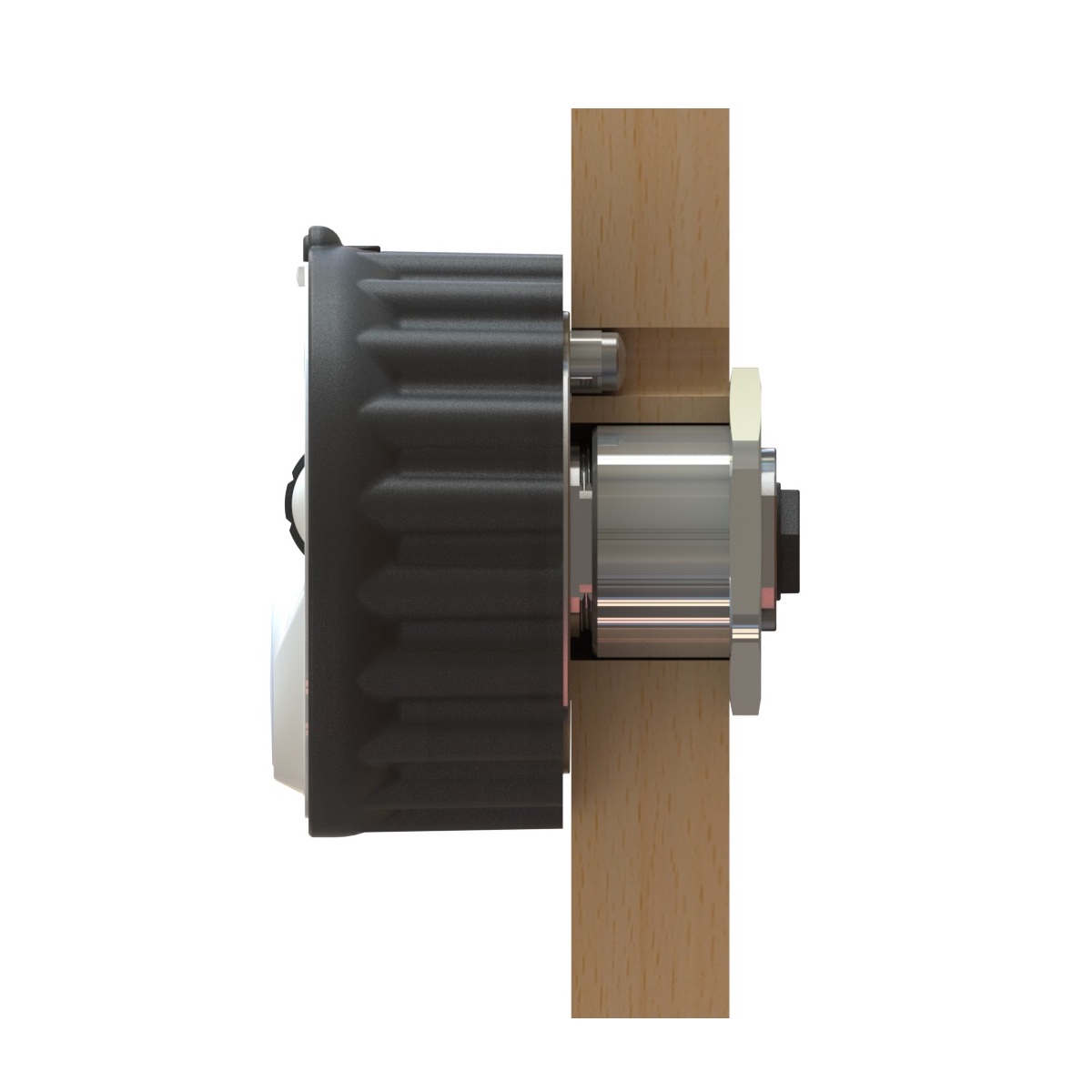

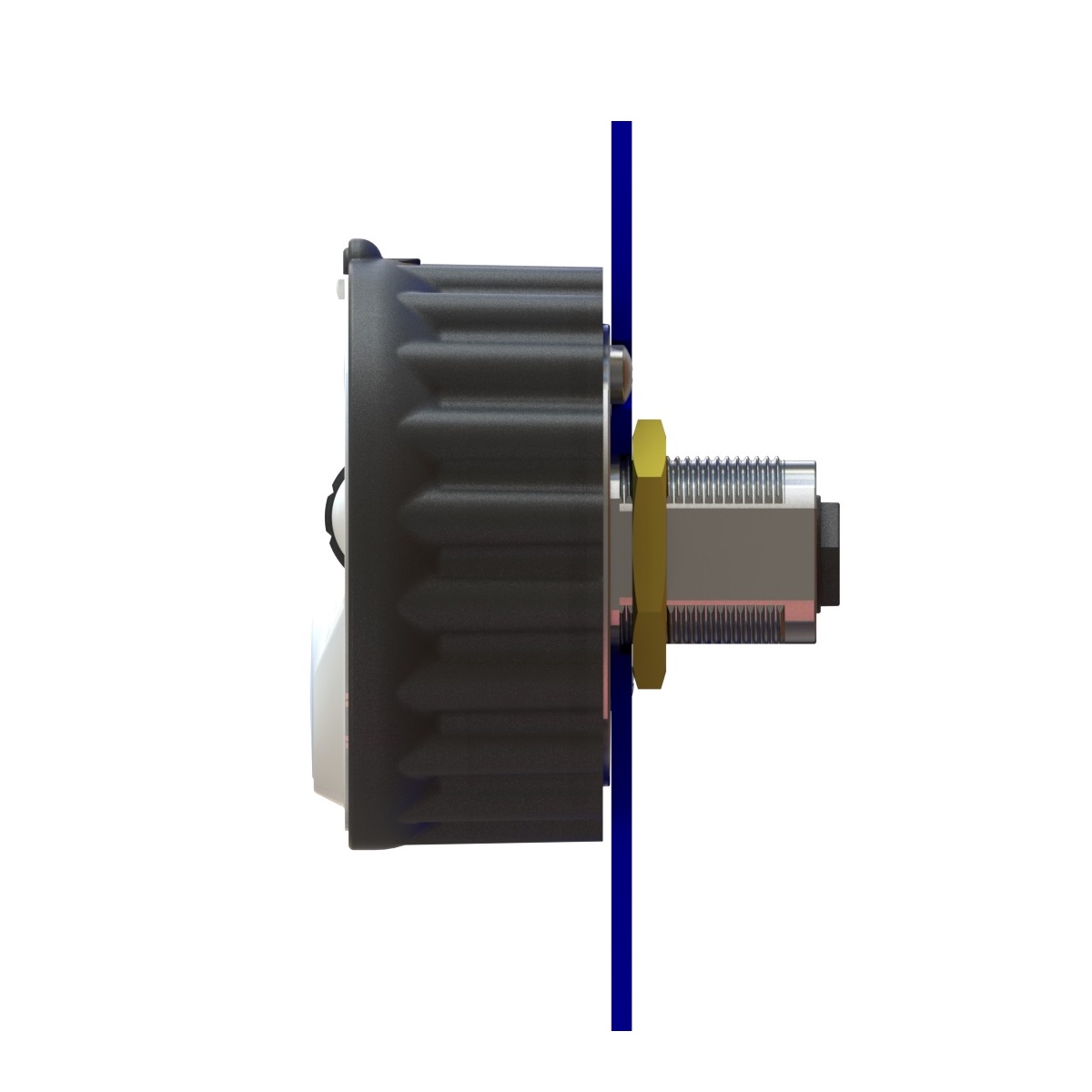

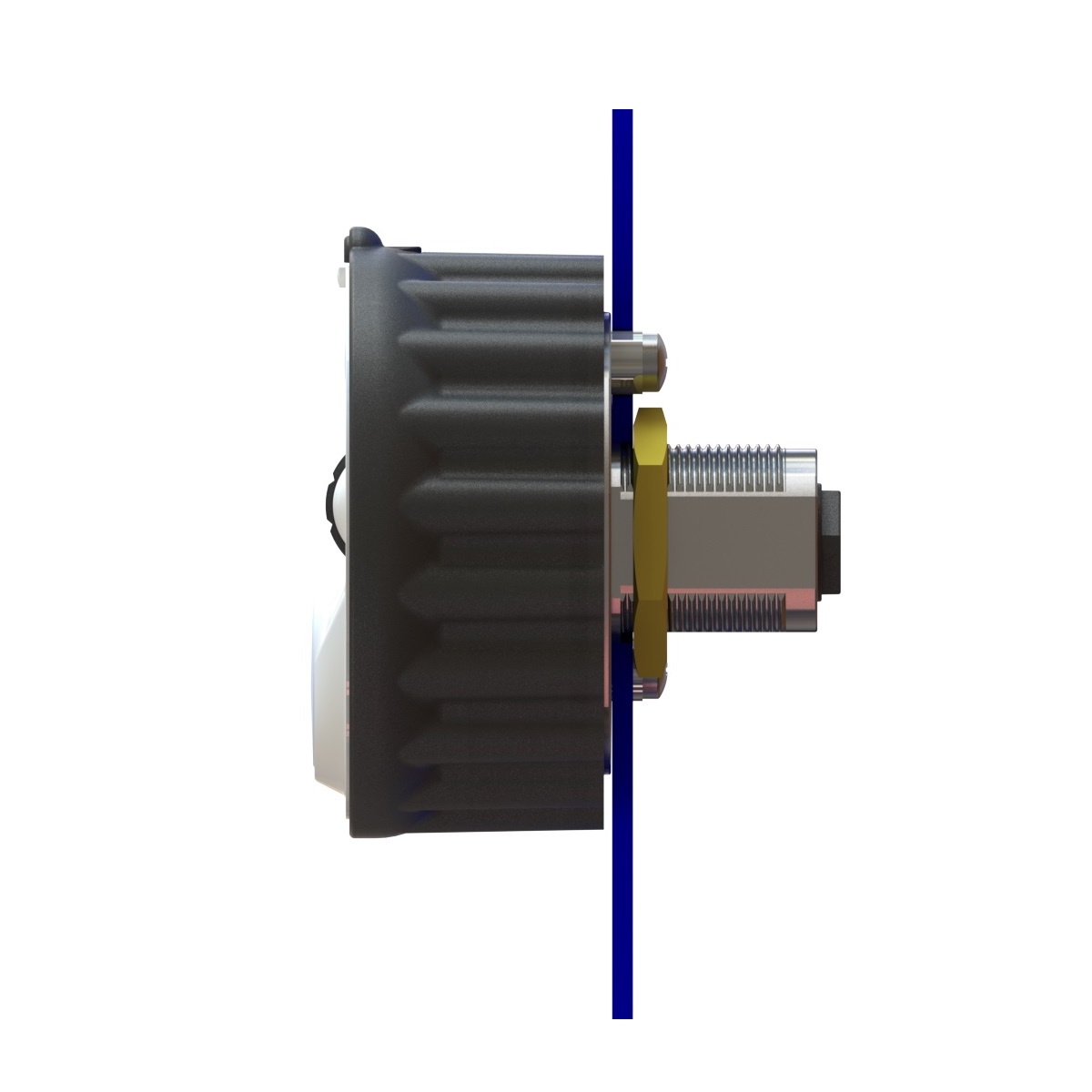

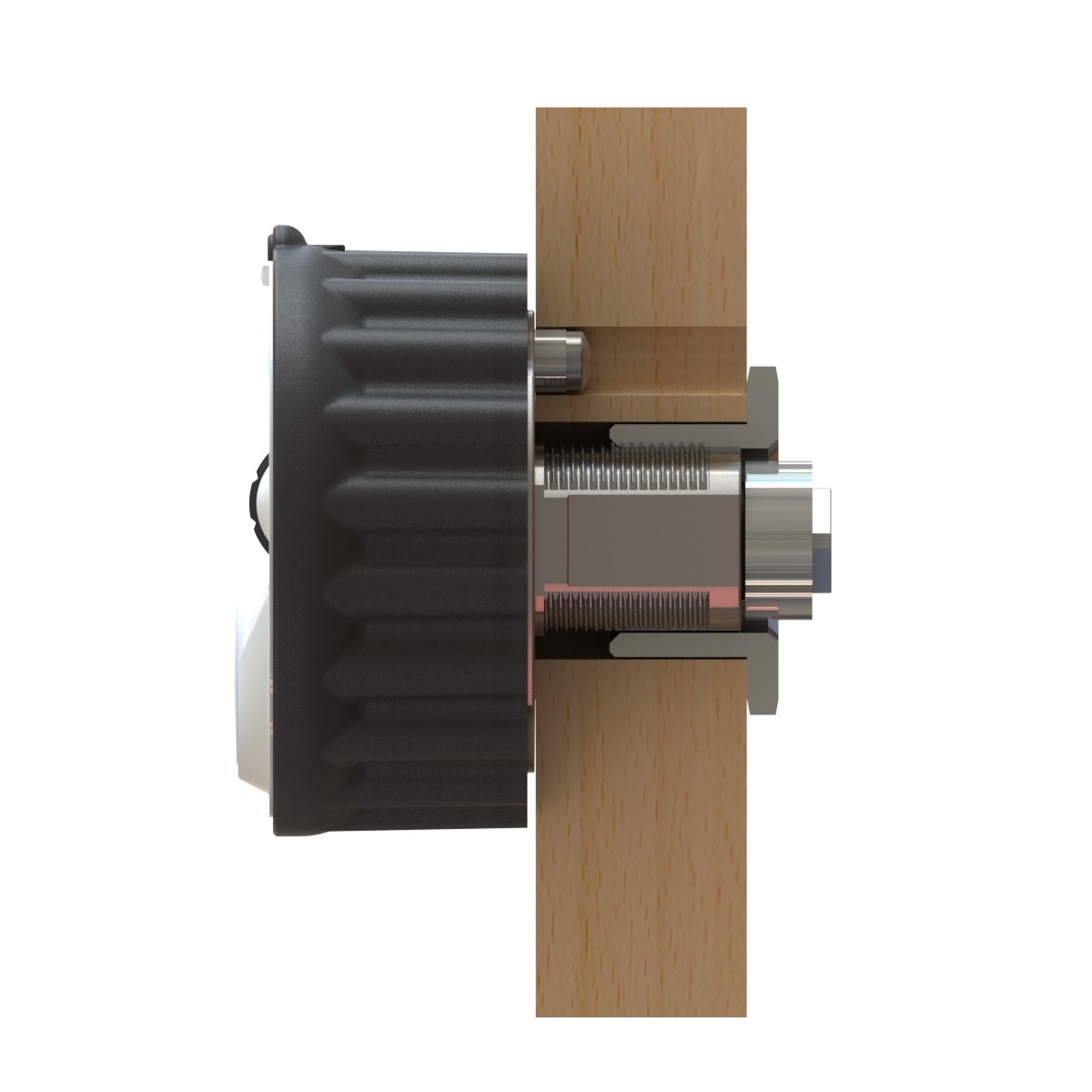

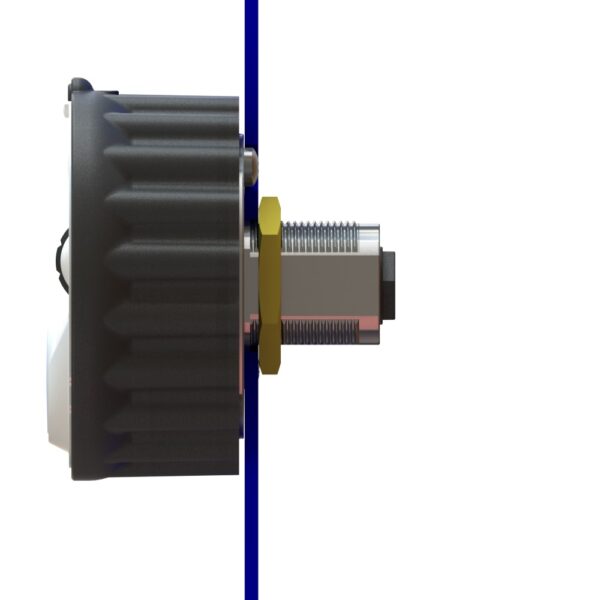

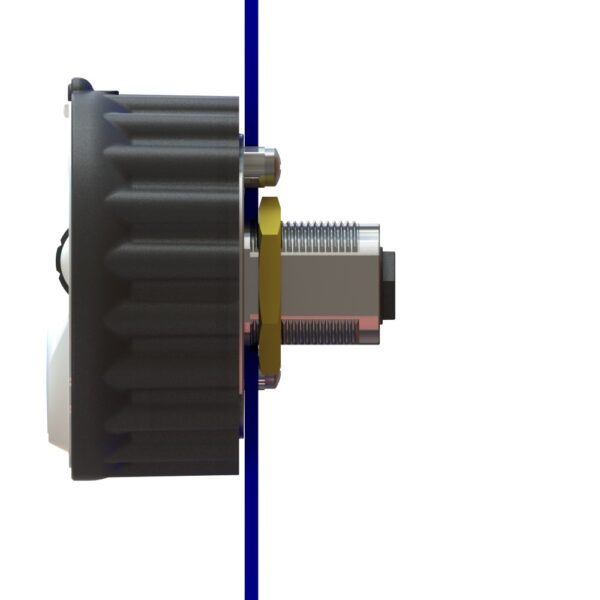

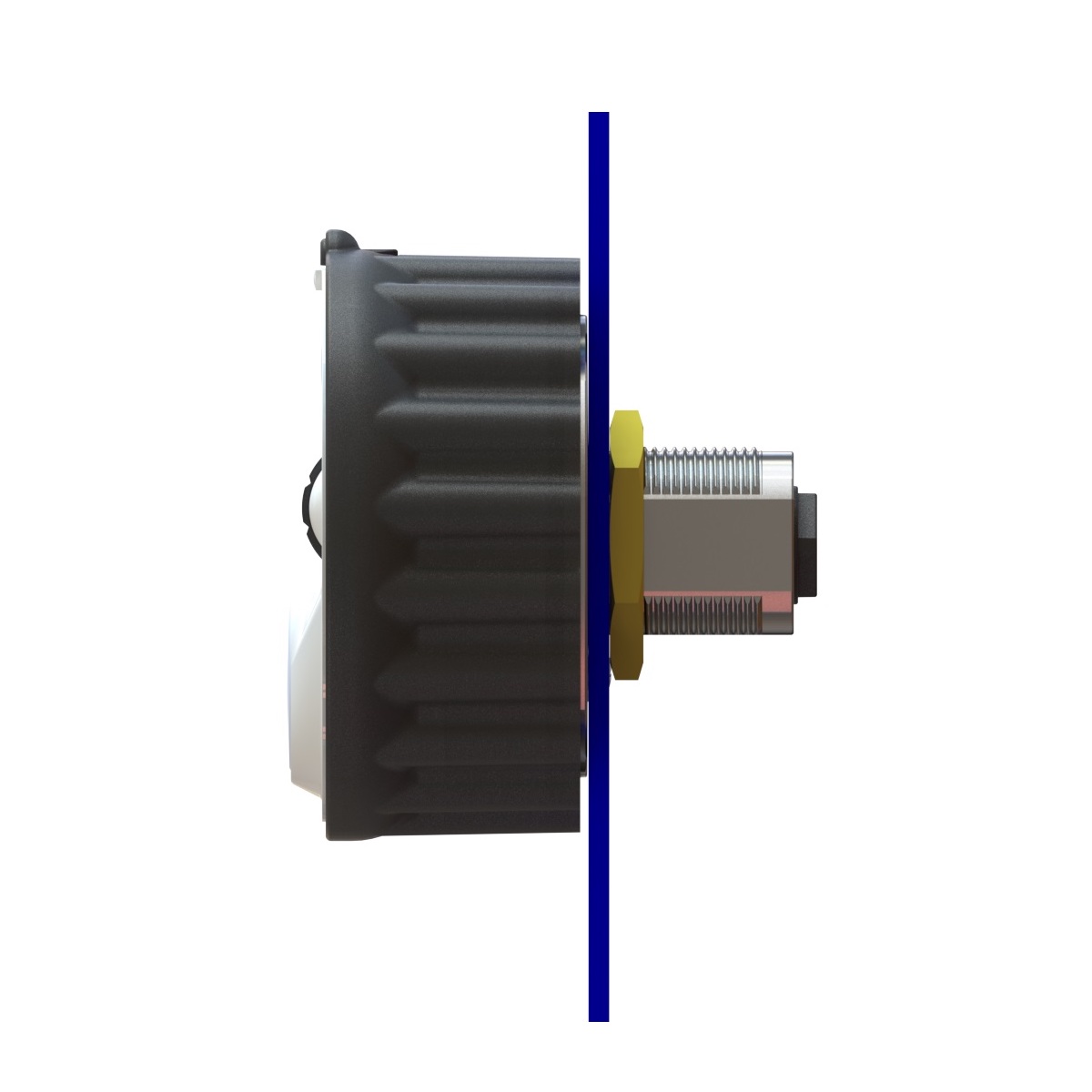

Fitting Options
|
|
|
|
|
|
|---|---|---|---|---|---|

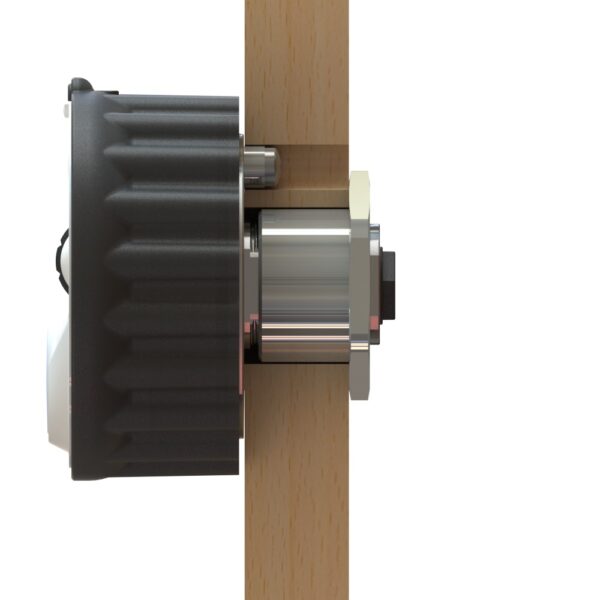

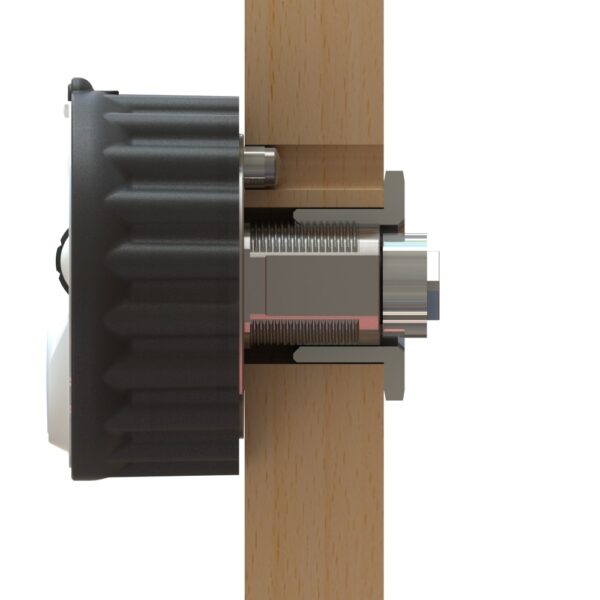

| Product Code | 9525001 | 9525002 | 9525003 | 9525004 | 9525005 |
| Door Thickness | up to 14mm | up to 14mm | up to 14mm | 14mm – 19.5mm | 14mm – 23mm |
| Fixing Hole Details | 16A/F x Ø19 |
16A/F x Ø19 and 2 x Ø6.5 Holes or Ø19 and 2 x Ø6.5 Holes |
16A/F x Ø19 and 2 x Ø6.5 Holes or Ø19 and 2 x Ø6.5 Holes |
Ø22.5 and 2 x Ø6.5 Holes | Ø22.5 and 2 x Ø6.5 Holes |
| Kit Contents |
Standard Housing Nut *2 x CSK Screws 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Standard Housing Nut *2 x Pan Head Screws 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Standard Housing Nut *2 x Pan Head Screws *2 x Pan Head Spacers 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Extension Housing Nut *2 x Pan Head Screws *2 x Pan Head Spacers 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Extension Housing Nut *2 x Pan Head Screws *2 x Pan Head Spacers 1 x Cam Extension 6.25mm 1 x M4 x 12 Patch Screw 1 x M4 Washer *supplied fitted to lock |
