Electronic Latch Lock IP65 Rated 3777 (5V) 3778 (12V)

Name: Electronic Latch Lock IP65 Rated 3777 (5V) 3778 (12V)
SKU: Water-Resistant-Electronic-Latch-Lock-3777-3778-ELDCL
Availability: InStock

Introducing the water resistant 3777 (5V) and 3778 (12V) e-latches. Designed and manufactured to exacting standards, the electronics within each latch are rated to IP65, with mechanical components coated to resist corrosion.

View Lock Details

3777_3778-Water-Resistant-Electronic-Latch

Featured Technicals

Brochure

Lock Description

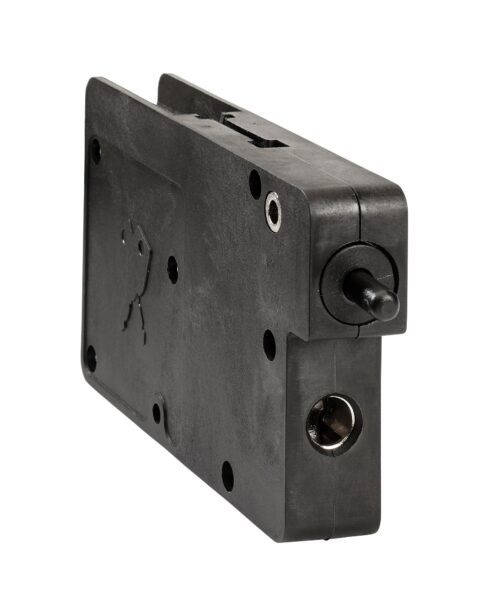

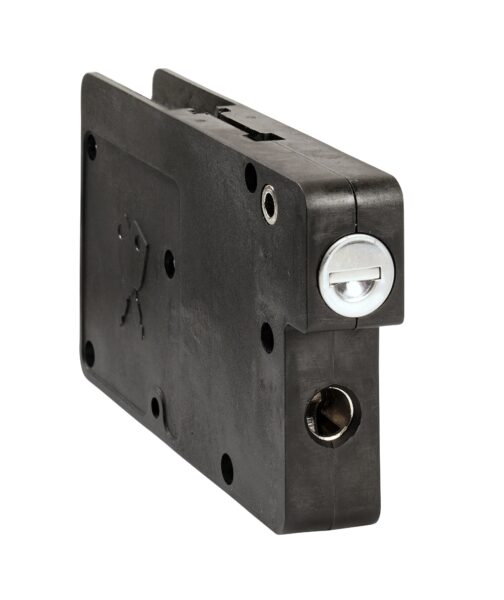

These water resistant latches incorporate the same key features as the 3792 and 3793 variants including key and mechanical cable overrides, a floating door bolt to accommodate mis-alignment, and a precision motor driven mechanism with excellent operation even under load.

Designed for easy connection and control, the latches include an internal sensor for feedback on whether the door is closed. They have a push-to-lock action and on opening will push the door slightly ajar. If greater movement is required, a spring-loaded plunger is available as a replacement for the key override barrel.

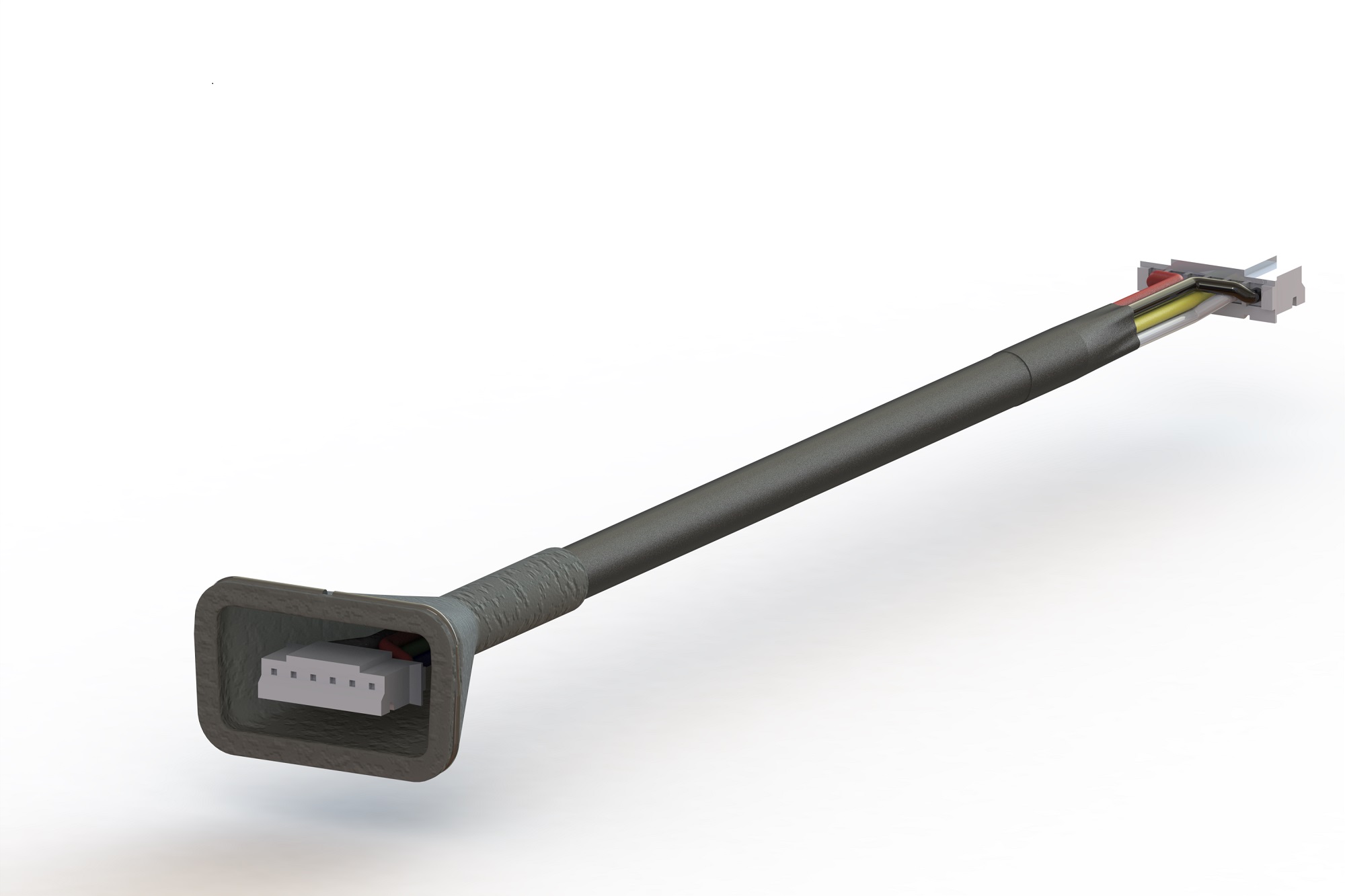

The latches are also supplied with a door mounted striker bolt (customer to specify flush fit or 2mm stand-off) and come with a 2, 4 or 6 metre cable (customer to specify).

Rigorously tested for durability and reliability, these latches are compatible with our Zodiac Smart Locking System and are ideal for use on a wide variety of smart lock applications such as personal lockers, postal and delivery systems, asset management systems and other enclosures.

Have a question?

Lock Options

Product Code	Body Height	Body Width	Body Depth	Finish	Inquire
37770H (5V)	70	120	20	Reinforced Black Plastic	Contact Sales
37780H (12V)	70	120	20	Reinforced Black Plastic	Contact Sales

Standard Features

Rugged cast alloy construction with a reinforced black plastic casing
All cables have silicone boot and retaining band one end with male connector the other.
Compact size (70 high x 120 long x 20 thick)
Two, Ø4 attachment holes
Plug-in connection
Easy connectivity
Optional mechanical cable over-ride
Mechanical 10-disc key over-ride (1 key per 50 locks)
Ball ended, safe striker
Floating striker attachment allows for door misalignment
Wide tolerance striker socket
On-board intelligence – Easy control options
Door closed feedback (When locked)

Technical Data

Interface: JST – S6B – PH – SM4 – TB
Dimensions: 70 x 120 x 20mm
Pull out force: 2100N
Maximum load for electronic opening: 150N at 5V and 12V
Housing material: Reinforced plastic
Weight: 210g
Operating temperature range: -10 to +50 °C
Standby current: 1.4mA
Maximum current draw: 300mA

Additional Information

Ingress Protection (IP) Certification Download

The latch input and outputs connect directly to an on-board microprocessor (uC). There is one input to specify lock/unlock (2). This is internally pulled up. When it is connected to VCC (1) or left unconnected the latch will be locked. The latch will unlock when lock/unlock (2) is pulled low (connected to ground) for longer than 10ms.

There are three outputs that indicate the status of the latch. The presence of a latch is indicated by a low signal on the latch present output (3).

The locked status (4) indicates whether the latch is in the locked position (high) or not (low). When this output is high the latch internally is in the locked state. If the door is still open, it will be locked shut when it is next closed.

The latched status (5) indicates whether the striker bolt is latched into the lock (high) or not (low). This identifies whether the door is shut and locked or not. If the latch is unlocked (see above), the latched indicator will always be low.

Connection Diagram

Connection Diagram_Cable

Male Connector
MPN	JST, PHR-6
Pin	Description
1	+5V or +12V
2	In – lock/unlock
3	Out – latch present (active low)
4	Out – locked (active high)
5	Out – latched (active high)
6	Ground
