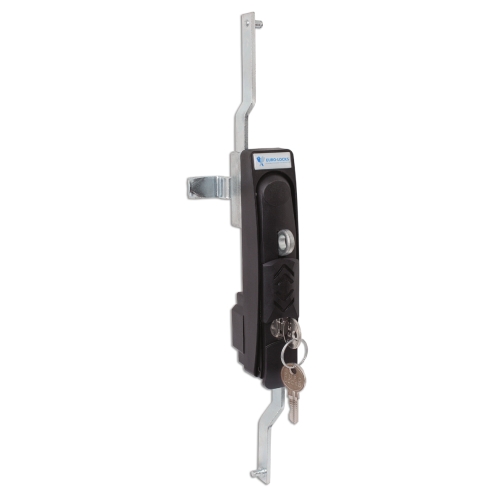

Swing Handle with Shackle H828

A H828 swing handle with a choice of euro-profile cylinders and a shackle for extra security. With a polyamide 30% glass fiber body for strength and durability, the H828 has a pop-out swing handle that is available with a number of options including IP54 rating or UL94 V0 flame resistant. Please see below for full range of options including a sliding dust cover, and choice of 1-point, 2-point or 3-point cam or rod-latch system. Contact us today for further information on +1 (616) 994 0490.

View Lock Details
Featured Technicals
Lock Options
Product Code Max Panel Thickness Inquire
H828 1 – 2.5 Contact Sales
Standard Features
  • Lock type: Euro-profile cylinder (shackle can be secured using a padlock)
  • Panel thickness: 1mm – 2.5mm please state when ordering
  • Standard finish: Black 9005 RAL
  • Available with 1, 2, 3-point cam or rod-latch system: please state when ordering
  • Polyurethane sticker
  • Maximum shackle diameter: 10mm
  • Pop-out function

Optional features – please contact sales department to discuss

  • Customized logo
  • IP54 water resistant available on request
  • UL94 V0 flame resistant available on request (minimum order quantity applies)
  • Alternative colors and materials available upon request

Additional Information

Swing Handle with Shackle H828 technical drawing

Part Number Guide

 Product number  IP54 Panel thickness Pivot Material Color Sticker with logo
H828 0

No

1

1,0 – 1,51 mm

1

ZNAL

1

PA6 30GF

9005

Black – standard

0

Without logo

1

Yes

2

1,51 – 2,0 mm

2

Brass*

2

PA6 30GF V0*

Other RAL

On request*

1

With Euro-Locks logo

3

2,01 – 2,5 mm

2

With customers logo

 Example
H828 0 1 1 1 9005 1

*Available on request only
