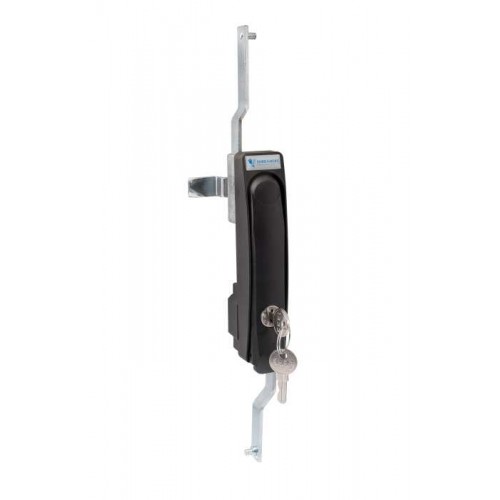

Swing Handle H830

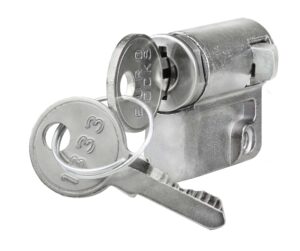

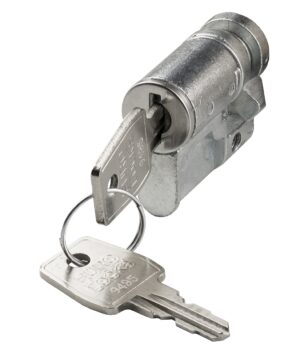

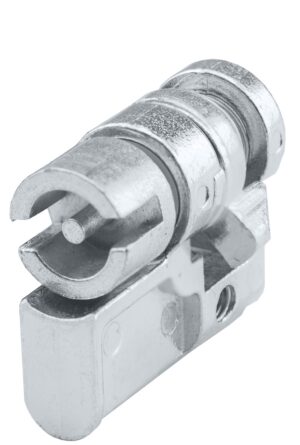

A H830 swing handle available with a selection of euro-profile cylinders. With a polyamide 30% glass fiber body for strength and durability, the H830 has a pop-out swing handle that is available with a number of options.
Lock Description
Please see below for full range of options including a sliding dust cover, and choice of 1-point, 2-point or 3-point cam or rod-latch system or contact us today for further information on +1 (616) 994 0490.
Have a question?
Lock Options
| Product Code | IP65 | Max Panel Thickness | Inquire |
|---|---|---|---|
| H830 | No | 1 – 2.5 | Contact Sales |
Standard Features
- Lock type: Euro-profile cylinder
- Panel thickness: 1mm – 2.5mm please state when ordering
- Standard finish: Black 9005 RAL
- Available with 1, 2 or 3-point cam or rod-latch system: please state when ordering
- Polyurethane sticker
- No IP rating
- Pop-out function
Optional features – please contact sales department to discuss
- Customized logo
- UL94 V0 flame resistant available on request (minimum order quantity applies)
- Alternative colors and materials available upon request
Additional Information
Swing Handle H830 technical drawing
Part Number Guide
| Product number | Panel thickness | Pivot | Material | Color | Sticker with logo | |||||
| H830 | 1
1,0 – 1,51 mm |
1
ZNAL |
1
PA6 30GF |
9005
Black – standard |
0
Without logo |
|||||
| 2
1,51 – 2,0 mm |
2
Brass* |
2
PA6 30GF V0* |
Other RAL
On request* |
1
With Euro-Locks logo |
||||||
| 3
2,01 – 2,5 mm |
2
With customers logo |
|||||||||
| Example | ||||||||||
| H830 | 1 | 1 | 1 | 9005 | 1 | |||||
*Available on request only
