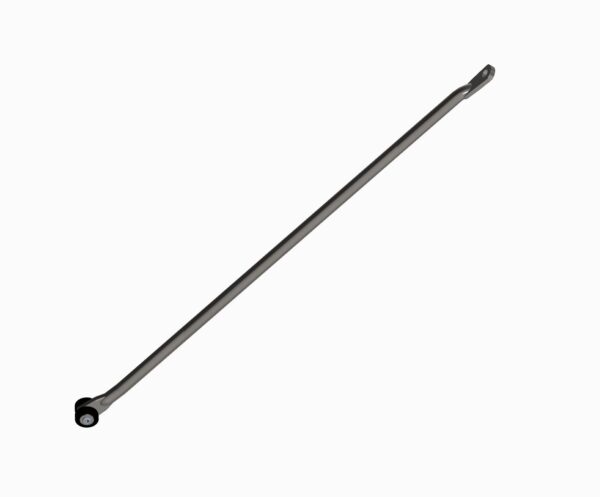

Rods PR38 with Roller
A 8mm diameter steel rod with a roller, available with or without a round mounting point at the top. When used in conjunction with a rod control system and swing handle, these rods create a secure multi-point locking system for use on metal cabinets and enclosure doors.

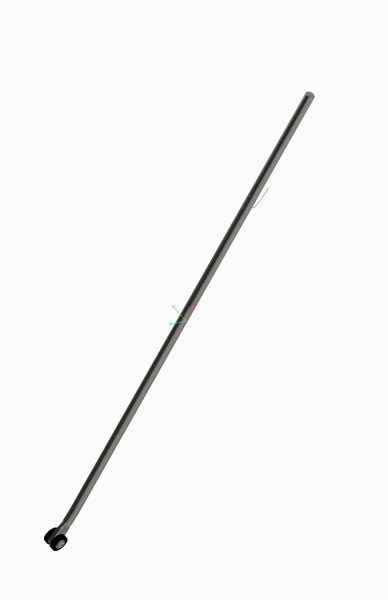

Note: Main image shows Rod PR3803 (no mounting point)
Lock Description
Full details and accessories can be found on the Program Scheme drawing.
Have a question?
Lock Options
| Product Code | C Dimension | Diameter | End of Rod Shape | Finish | Inquire |
|---|---|---|---|---|---|
| PR38 with Roller | 0 | PA Rollers 15 mm | Zinc Plate | Contact Sales |
Standard Features
- Rod material: Steel
- Standard finish: Zinc plated
- Rod length: Cut to customers requirements, please state when ordering.
Additional Information
Rods PR38 with Roller technical drawing
| Product Number | Diameter (mm) | Fixing Point Shape | End of Rod Shape | A Dimension (mm) | B Dimension (mm) | C Dimension (mm) | Length (mm) | ||
| PR3 | 8 | 0 | Cut under adapter | 3 | PA Rollers – 15 mm | 11,5 | 0 | 0 | |
| 1 | Round 5,5 mm | 15 | 37 | 0 | |||||
| 24 | 47 | 0 | |||||||
| Example | |||||||||
| PR3 | 8 | 0 | 3 | 15 | 37 | 0 | 100 | ||
| Choose rod type | Rods (must select one) | Rod Guide | Dual Roller Catch | Adapter | |
| Rod control system without cam | PR10-A-B-L | W106 (20) | |||
| PR11-A-B-L | W106 (20) | ||||
| PR2-M-K-L | W106 (20) | W102 (19) | |||
| PR3803-A-B-L | W108-2 (15) | W105 (17) | |||
| PR3611-L | W109-1 (16) or W108-1 | ||||
| PR3612-L | W109-1 (16) or W108-1 | ||||
| PR3811-L | W109-2 (16) or W108-2* | *except PR3813 use W108-3 | |||
| PR3801-L | W109-2 (16) or W108-2* | W105 (17) | *except PR3813 use W108-3 | ||
| Rod control system with 1-point cam | PR10-A-B-L | W106 (20) | |||
| PR11-A-B-L | W106 (20) | ||||
| PR2-M-K-L | W106 (20) | W102 (19) | |||
| PR3803-A-B-L | W108-2 (15) | W105 (17) | |||
| PR3611-L | W109-1 (16) or W108-1 | ||||
| PR3612-L | W109-1 (16) or W108-1 | ||||
| PR3811-L | W109-2 (16) or W108-2* | *except PR3813 use W108-3 | |||
| PR3801-L | W109-2 (16) or W108-2* | W105 (17) | *except PR3813 use W108-3 | ||
