Rods PR38

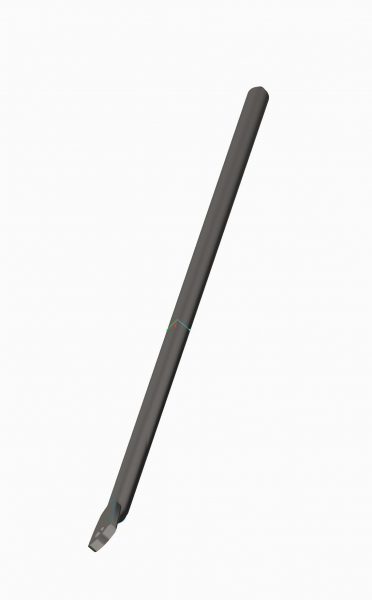

A 8mm diameter steel rod available with a round mounting point shape at the top if required and a conical shape to the bottom. When used in conjunction with a rod control system and swing handle, these rods create a secure multi-point locking system for use on metal cabinets and enclosure doors.

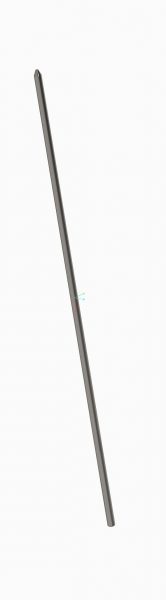

Note: Main image shows Rod PR3811 (round mounting hole at top)
Lock Description
Full details and accessories can be found on the Program Scheme drawing.
Have a question?
Lock Options
| Product Code | Diameter | End of Rod Shape | Finish | Fixing Point Shape | Inquire |
|---|---|---|---|---|---|
| PR38 | Zinc Plate | Contact Sales |
Standard Features
- Rod material: Steel
- Standard finish: Zinc plated
- Rod length: Cut to customers requirements, please state when ordering.
Additional Information
Rods PR38 technical drawing
| Product Number | Diameter (mm) | Fixing Point Shape | End of Rod Shape | Length (mm) | ||
| PR3 | 8 | 0 | Cut under adapter | 1 | Cone | |
| 1 | Round hole 5,5 mm | |||||
| Example | ||||||
| PR3 | 8 | 0 | 1 | 100 | ||
| Choose rod type | Rods (must select one) | Rod Guide | Dual Roller Catch | Adapter | |
| Rod control system without cam | PR10-A-B-L | W106 (20) | |||
| PR11-A-B-L | W106 (20) | ||||
| PR2-M-K-L | W106 (20) | W102 (19) | |||
| PR3803-A-B-L | W108-2 (15) | W105 (17) | |||
| PR3611-L | W109-1 (16) or W108-1 | ||||
| PR3612-L | W109-1 (16) or W108-1 | ||||
| PR3811-L | W109-2 (16) or W108-2* | *except PR3813 use W108-3 | |||
| PR3801-L | W109-2 (16) or W108-2* | W105 (17) | *except PR3813 use W108-3 | ||
| Rod control system with 1-point cam | PR10-A-B-L | W106 (20) | |||
| PR11-A-B-L | W106 (20) | ||||
| PR2-M-K-L | W106 (20) | W102 (19) | |||
| PR3803-A-B-L | W108-2 (15) | W105 (17) | |||
| PR3611-L | W109-1 (16) or W108-1 | ||||
| PR3612-L | W109-1 (16) or W108-1 | ||||
| PR3811-L | W109-2 (16) or W108-2* | *except PR3813 use W108-3 | |||
| PR3801-L | W109-2 (16) or W108-2* | W105 (17) | *except PR3813 use W108-3 | ||
