Rods PR2 with Pressure Rollers

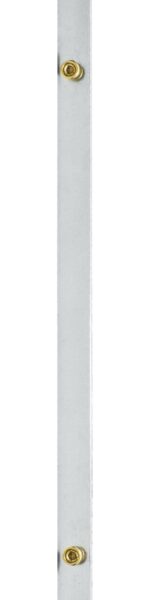

A 14mm flat steel rod complete with dual brass rollers. When used in conjunction with a rod control system and swing handle, these rods create a secure multi-point locking system for use on metal cabinets and enclosure doors. The number of rollers on each rod can be changed to suit your requirements, please contact us.
Lock Description
Full details and accessories can be found on the Program Scheme drawing.
Have a question?
Lock Options
| Product Code | Finish | Inquire |
|---|---|---|
| PR2 | Zinc Plate | Contact Sales |
Standard Features
- Rod material: Steel
- Standard finish: Zinc plated
- Roller material: Brass
Additional Information
Rods PR2 with Pressure Rollers technical drawing
| Product Number | M Dimension (mm) | L Dimension (mm) | K Dimension (mm) |
| PR2 | Dimension between top of the rod and first roller axle | Dimension between the rollers axles | Dimension between fixing hole point and roller axle |
| Example | |||
| PR2 | 75 | 425 | 100 |
| Choose rod type | Rods (must select one) | Rod Guide | Dual Roller Catch | Adapter | |
| Rod control system without cam | PR10-A-B-L | W106 (20) | |||
| PR11-A-B-L | W106 (20) | ||||
| PR2-M-K-L | W106 (20) | W102 (19) | |||
| PR3803-A-B-L | W108-2 (15) | W105 (17) | |||
| PR3611-L | W109-1 (16) or W108-1 | ||||
| PR3612-L | W109-1 (16) or W108-1 | ||||
| PR3811-L | W109-2 (16) or W108-2* | *except PR3813 use W108-3 | |||
| PR3801-L | W109-2 (16) or W108-2* | W105 (17) | *except PR3813 use W108-3 | ||
| Rod control system with 1-point cam | PR10-A-B-L | W106 (20) | |||
| PR11-A-B-L | W106 (20) | ||||
| PR2-M-K-L | W106 (20) | W102 (19) | |||
| PR3803-A-B-L | W108-2 (15) | W105 (17) | |||
| PR3611-L | W109-1 (16) or W108-1 | ||||
| PR3612-L | W109-1 (16) or W108-1 | ||||
| PR3811-L | W109-2 (16) or W108-2* | *except PR3813 use W108-3 | |||
| PR3801-L | W109-2 (16) or W108-2* | W105 (17) | *except PR3813 use W108-3 | ||
