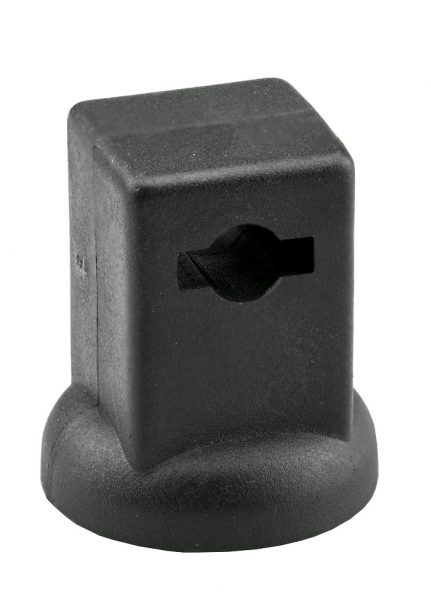

Rod Guide W108

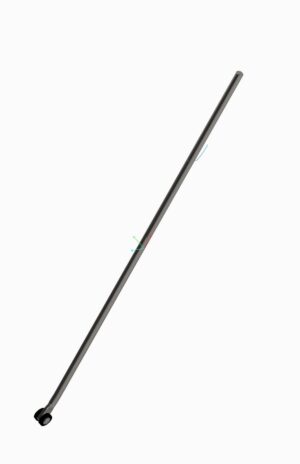

A rod guide W108 manufactured from PA6 GF30. These guides can be used with rods PR36 and PR38 to form part of a rod control system that can be used in multi-point locking systems.
Lock Description
Full details and accessories can be found on the Program Scheme drawing.
Have a question?
Lock Options
Standard Features
- Material: PA6 GF30

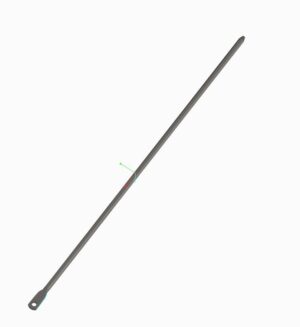

- Rod guide W108-1: use with rods PR36

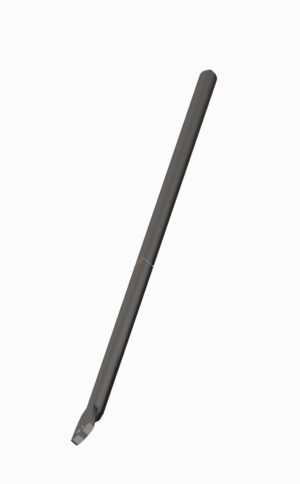

- Rod guide W108-2: use with rods PR38 (except PR3813)
- Rod guide W108-3: use with rods PR3813
- M6 threaded bolt not included
Additional Information
Rod Guide W108 technical drawing
| Choose rod type | Rods (must select one) | Rod Guide | Dual Roller Catch | Adapter | |
| Rod control system without cam | PR10-A-B-L | W106 (20) | |||
| PR11-A-B-L | W106 (20) | ||||
| PR2-M-K-L | W106 (20) | W102 (19) | |||
| PR3803-A-B-L | W108-2 (15) | W105 (17) | |||
| PR3611-L | W109-1 (16) or W108-1 | ||||
| PR3612-L | W109-1 (16) or W108-1 | ||||
| PR3811-L | W109-2 (16) or W108-2* | *except PR3813 use W108-3 | |||
| PR3801-L | W109-2 (16) or W108-2* | W105 (17) | *except PR3813 use W108-3 | ||
| Rod control system with 1-point cam | PR10-A-B-L | W106 (20) | |||
| PR11-A-B-L | W106 (20) | ||||
| PR2-M-K-L | W106 (20) | W102 (19) | |||
| PR3803-A-B-L | W108-2 (15) | W105 (17) | |||
| PR3611-L | W109-1 (16) or W108-1 | ||||
| PR3612-L | W109-1 (16) or W108-1 | ||||
| PR3811-L | W109-2 (16) or W108-2* | *except PR3813 use W108-3 | |||
| PR3801-L | W109-2 (16) or W108-2* | W105 (17) | *except PR3813 use W108-3 | ||
