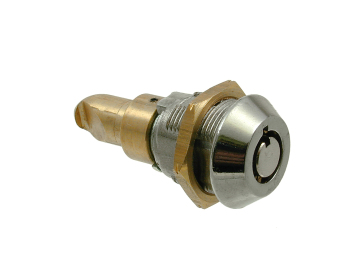

Radial Pin Tumbler Lock 4333
A radial pin tumbler lock available in bright chrome. This lock is available with an anti-drill feature and a 10-pin mechanism on request making it ideal for use on applications such as Asset Security and Enclosures or anywhere high security is required.
Lock Options
| Product Code | Key Series | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 4333-0100 | Nut mounting | 10000 | 43.5 | 22.2 | 5.6 | Bright Chrome | Conical | 7.2 | Contact Sales |
Standard Features
- Standard movements: 1 – 20 (see RPT Lock Movements)
- Lock Combinations: 10,000
- Standard finish: Bright chrome
- Mounting hole shape: Round
- Panel thickness: See table and state when ordering
- 10-Pin mechanism: Available on request
- Anti-drill feature: Available on request
Additional Information
Radial Pin Tumbler Lock 4333 technical drawing
Max Panel Thickness
| Code | Nut Fixing (Dim 'P') | Spring Clip Fixing Across diameter | Spring Clip Fixing Across flats |
|---|---|---|---|
| 4333-0100 | 12 | 13 | 13 |
