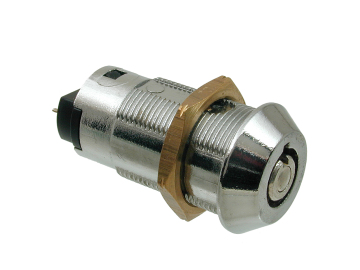

Radial Pin Tumbler Inline Key Switch 4356
A radial pin tumbler (R.P.T) inline key switch 4356 available in bright chrome with a double D mounting hole shape. Once connected to a C.K. low voltage switch, the 4356 switch forms part of a circuit that is controlled by the key. This makes it ideal for use in Enclosure applications such as data cabinets and circuit breakers.
Lock Options
| Product Code | Combinations | Body Length | Head Height | Head Width | Head Depth | Head Shape | Key Free | Max Panel Thickness | Total Movement | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 4356-01-2A | 10000 | 39 | 22.2 | 22.2 | 5.5 | Conical | 1 | 12 | 90° | Contact Sales |
| 4356-05-2A | 10000 | 39 | 22.2 | 22.2 | 5.5 | Conical | 1, 4 | 12 | 90° | Contact Sales |
Standard Features
- Standard movements: key free 1, 4
- Lock combinations: 10,000
- Standard finish: bright chrome
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Switch Type Available: C.K. (Low Voltage) Switch
- Soldering Specification: see Technical Resources
Electrical Specification
- Contact rating (switch resistive load): 0.1A 30Vdc
- Insulating resistance: >100mOhm
- Initial contact resistance: <30mOhm
- Minimum operating life: 10,000 cycles
- Rated voltage: 5 – 30Vdc
- Current: 0.16 – 100mA
- Tag type: solder
- Operating temperature: -25 – 65°C
Additional Information
Radial Pin Tumbler Inline Key Switch 4356 technical drawing
| Product Code | Total Movement | Key Free |
| 4356-01-2A | 90° CW | 1 |
| 4356-05-2A | 90° CW | 1, 4 |
