Quick Access Panel Fastener W212
A plastic quarter turn panel fastener W212 for perforated profiles □9,5 mm, manufactured from high strength PA6 GF15 V0 material.
Lock Description

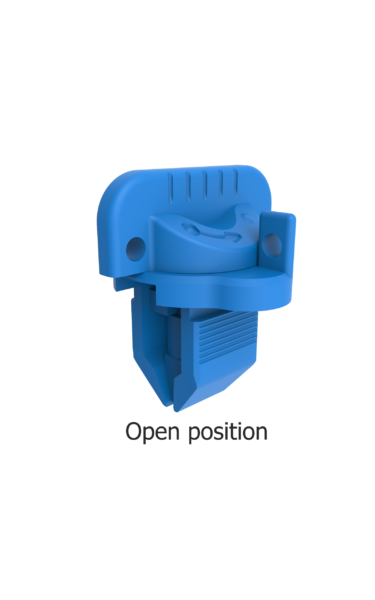

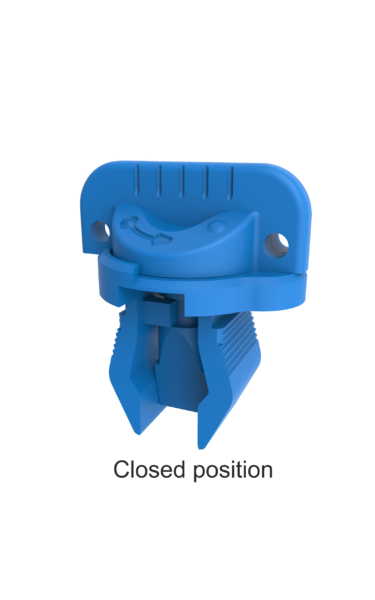

The panel fastener is supplied pre-assembled, making it quick and easy to connect cover panels to the enclosure by turning 90°.
The shape of the head allows for easy installation and removal of cover panels without the use of additional tools. This makes the fastener perfect for rack and data cabinets, and the option of additional seal protection, makes it even more secure.
It is also suitable for use in enclosures for the power industry or wherever a durable fastener with a high V0 fire resistance level is required.
Contact the experts at Lowe & Fletcher for more information!
Have a question?
Lock Options
| Product Code | Color | Handle Movement | Material | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|
| W212 | RAL 9005 Black | 90° | PA6 GF15 V0 | 3 - 3.5 | Contact Sales |
Additional Information

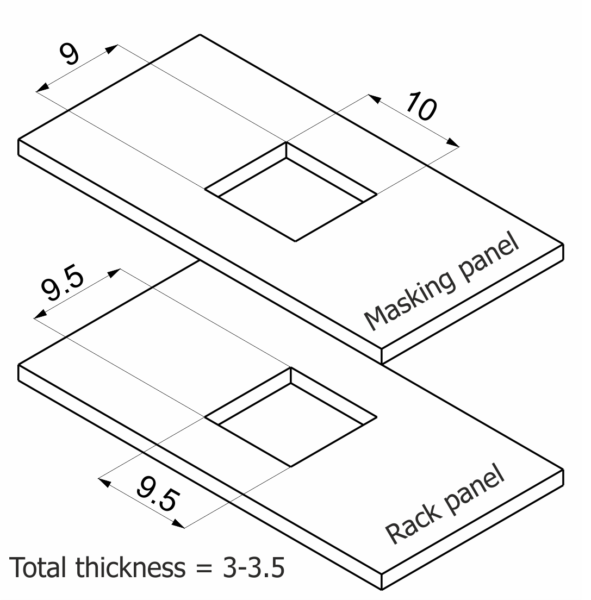

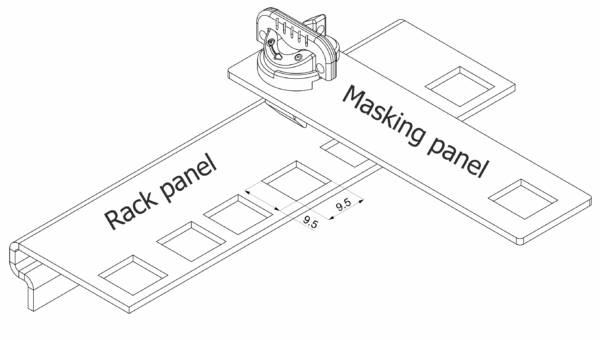

Quick Access Panel Fastener W212 technical drawing
Standard Features
- Quick fixing and removal of panels – no additional tools required
- Ergonomically shaped handle – cannot be over rotated
- Handle movement: 90°
- Material: PA6 GF15 V0 – corrosion resistant, high strength, fire resistance level V0
- Industry standard fixing hole size: □9.5 mm
- Max panel thickness: 3-3.5 mm
- Option to add a lead seal to the fastener to protect from unauthorised access
