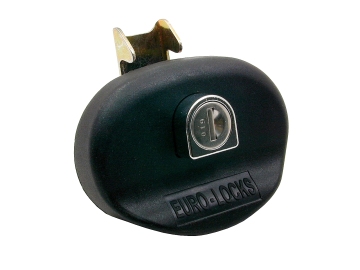

Push-in Slamlock F333
A series of push-in slamlocks with a bright chrome lock and black plastic rose. This handle is available in standard use or with a re-enforced spring for heavy duty use. The rose can also be supplied without a metal insert for rivet or screw mounting making it ideal for many applications including Enclosures and Lockers.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Handle Depth | D | Finish | Handle Height | Handle Width | Logo | Max Panel Thickness | Movement | Rose Finish | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F333 | 500 | 14.2 | 14.8 | 5.2 | Bright Chrome | 58 | 80 | Euro-Locks | 3.5 | 8 | Black Plastic | Contact Sales | |
| F362 | 500 | 14.2 | 14.8 | 5.2 | Bright Chrome | 58 | 80 | No logo | 3.5 | 8 | Black Plastic | Contact Sales | |
| F370 | 500 | 14.2 | 14.8 | 6.2 | Bright Chrome | 58 | 80 | No logo | 3.5 | 8 | Black Plastic | Contact Sales | |
| F370HD | 500 | 14.2 | 14.8 | 6.2 | Bright Chrome | 58 | 80 | No logo | 3.5 | 8 | Black Plastic | Contact Sales |
Standard Features
- Standard movements: 8
- Lock Combinations: 500
- Standard finish: Lock – bright chrome, Rose – black plastic
- Panel thickness: 3.5mm
- M Keyed system supplied to order only
- F370HD: Spring re-enforced for heavy duty use
- Customer logo as option
Additional Information
Push-in Slamlock F333 technical drawing
