Pin Hinge Z403

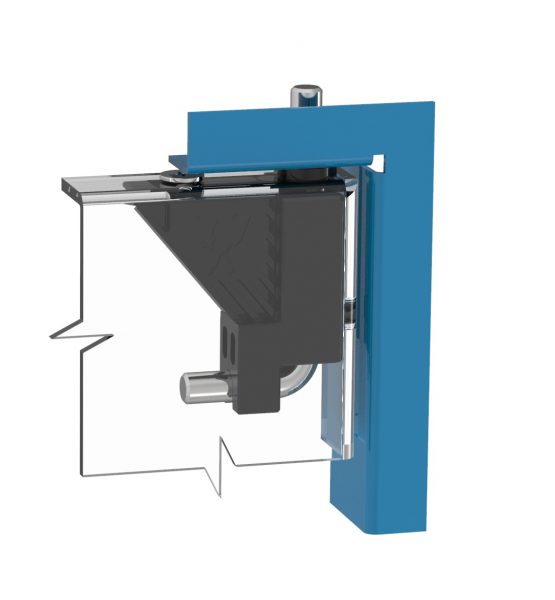

A pin hinge designed for use in small cabinets, masking frames, revision doors, gas cabinets and installation boxes with an opening angle of 105 °. The guide in the hinge allows for a quick and stable hinge assembly and this unique design also means the hinge can be used on left and right hand doors. The hinge also allows for quick installation and removal of doors simply by pulling the pin.
Lock Options
| Product Code | Color | Material | Max Hinge Rotation Angle | Inquire |
|---|---|---|---|---|
| Z403 | RAL 9005 Black | PA6 | 105° | Contact Sales |
Standard Features
- Suitable for use on left or right hand doors
- Panel thickness: 0.8mm – 2mm
- Hinge material: PA6
- Pin material (Ø5 mm pin): Steel zinc plated
- Standard color: RAL 9005 Black
- Quick and stable mounting with guide
- Additional screw mounting available on request
Additional Information
Pin Hinge Z403 technical drawing
| Product Number | Color | Area A Logo | Area B Logo |
| Z403 | 9005 Black Standard |
0
Without Logo |
0
Without Logo |
| Other RAL
Non-standard |
1
Crosskey Logo Standard |
1
Crosskey Logo Standard |
|
| 2
Customers Logo |
2
Customers Logo |
||
| Example | |||
| Z403 | 9005 | 1 | 0 |
