Mini Inline Double Pole Key Switch 5025

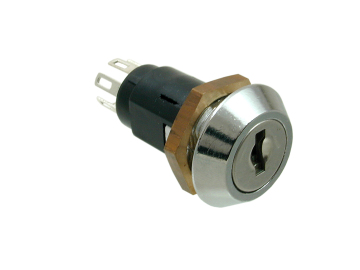

A mini, inline, double pole key switch 5025 and 5026, both available in bright chrome with a double D mounting hole shape. Once connected to a C.K. low voltage switch, the 5025 and 5026 key switches can be used to control two circuits. This makes it ideal for use in Enclosure applications or anywhere a circuit needs to be controlled by use of a key.
Lock Options
| Product Code | Combinations | Body Length | Head Height | Head Width | Indexing | Key Free | Max Panel Thickness | Total Movement | Inquire |
|---|---|---|---|---|---|---|---|---|---|
| 5025-26-2A | 200 | 30.7 | 22 | 22 | 60° | 1, 3 | 5 | 60° | Contact Sales |
| 5026-25-2A | 200 | 30.7 | 22 | 22 | 60° | 1 | 5 | 60° | Contact Sales |
Standard Features
- Standard movements: key free 1, 3
- Lock combinations: 200
- Standard finish: bright chrome
- Mounting hole shape: Double D
- Switch Type Available: C.K. (Low Voltage) Switch
- Soldering Specification: see Technical Resources
Electrical Specification
- Proof voltage: >750Vdc
- Current carrying capacity (non-switching): 5A
- Contact rating (switch resistive load): 1A 115Vac, 1A 24Vdc
- Insulation resistance: >100m Ohm
- Initial contact resistance: < 20m Ohm
- Minimum operating life: 10,000 cycles
- Contact material: silver plated brass
- Body material: Glass filled polyester
- Operating temperature: -20 to 65°C
Additional Information
Mini Inline Double Pole Key Switch 5025 technical drawing
| Product Code | Total Movement | Indx’g | Key Free |
| 5025-26-2A | 60° | 60° | 1, 3 |
| 5026-25-2A | 60° | 60° | 1 Only |
