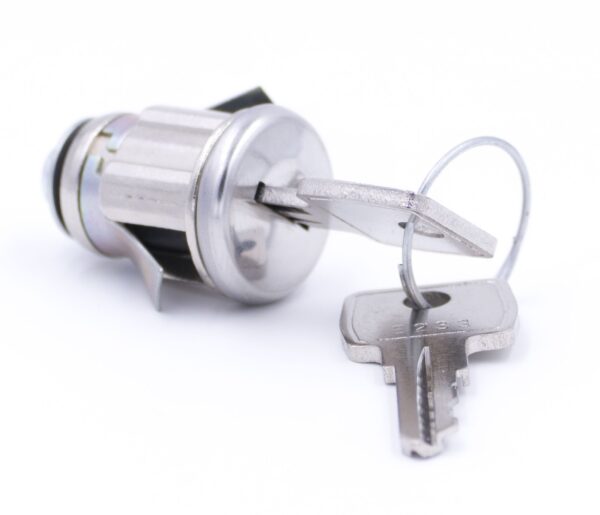

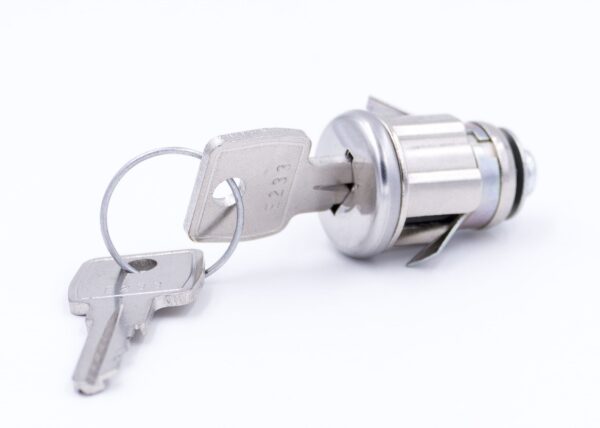

MAK5 Cam Lock

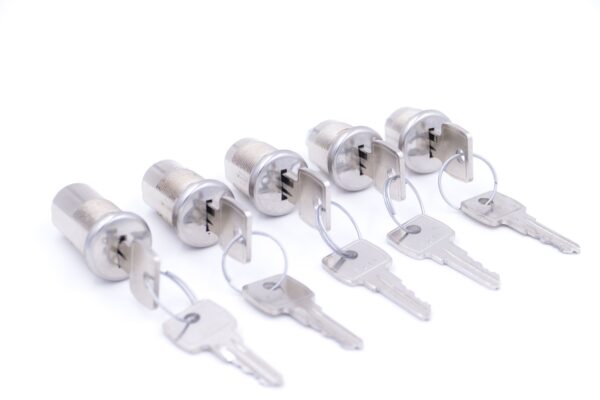

The MAK5 range of locks bring a fresh, modern look to traditional cam locks. Available in 5 lengths, the head of these locks is completely encased in stainless steel. This makes them ideal for applications such as Mail Boxes and Office Furniture, Healthcare and Hygiene applications.
For further information contact us on +1 (616) 994 0490.
Lock Options
| Product Code | Key Series | Housing Mounting | Combinations | Body Length | Head Height | Head Width | Cam Fixing | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MAK513KS00 | 200 | 13 | 5.9 | 23 | Nut | Nickel | Round | 7 | Contact Sales | ||
| MAK516KS00 | 200 | 16 | 5.9 | 23 | Nut | Nickel | Round | 10 | Contact Sales | ||
| MAK520KS00 | 200 | 20 | 5.9 | 23 | Screw | Nickel | Round | 14 | Contact Sales | ||
| MAK520KS22 | 200 | 20 | 5.9 | 22 | Screw | Nickel | Round | 14 | Contact Sales | ||
| MAK525KS00 | 200 | 25 | 5.9 | 23 | Screw | Nickel | Round | 14 | Contact Sales | ||
| MAK530KS00 | 200 | 30 | 5.9 | 23 | Screw | Nickel | Round | 25 | Contact Sales | ||
| MAKS20KS00 | Quick | 200 | 20 | 5.9 | 23 | Screw | Nickel | Round | 0.5 – 1.8 | Contact Sales |
Standard Features

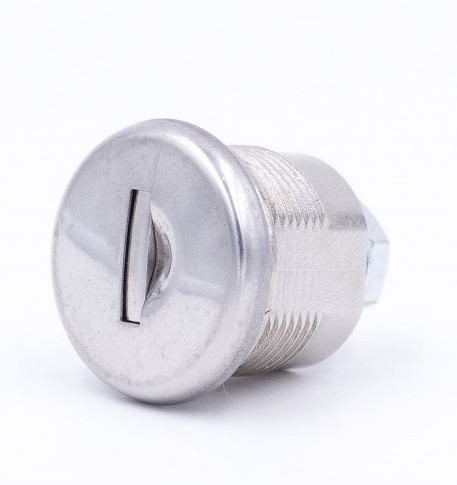

- Head encased in sttainless steel complete with dust shutter
- Laser marking option: your logo, company name or combinations can be marked on the cover (by request only)
- Lock combinations: 200
- Mounting Hole Size: 19.1 x 16.6mm
- Standard Movement: 1, 2, 3, 8, 9
- M Keyed system supplied to order only
- Dimension ‘X’: Body Length
- Comprehensive range of cams available: See Cams
Additional Information
MAK5 Cam Lock technical drawing
