High Security Rotary Disc Lock A253

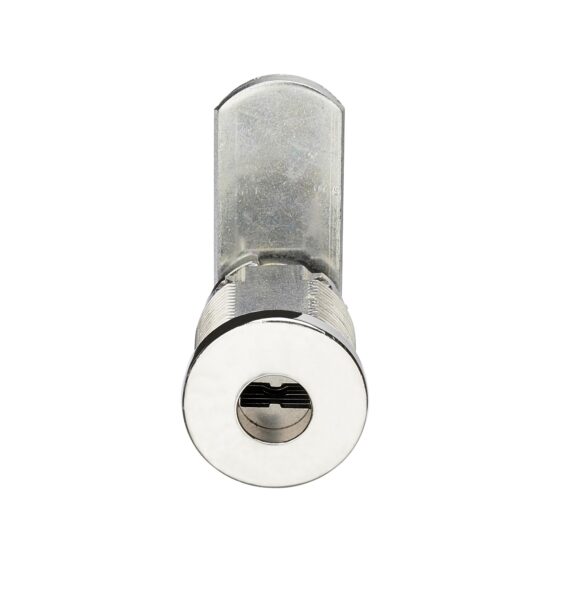

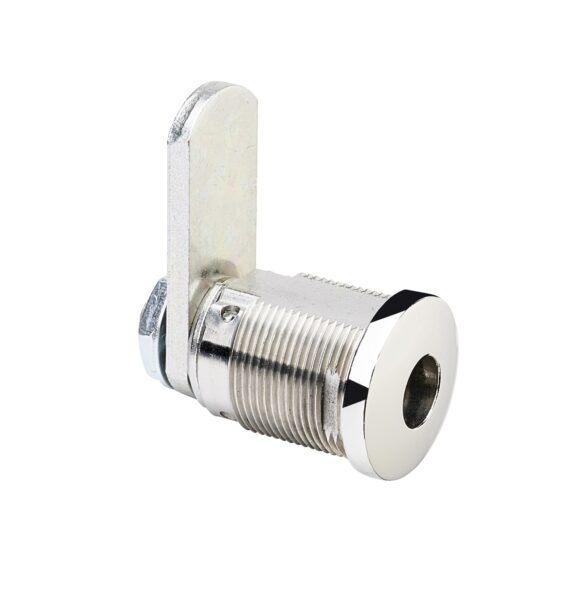

The high security rotary disc lock (HSRD) is a high security lock with high corrosion resistance and a smooth, easy operation in an aesthetically pleasing design. Manufactured from 100% stainless steel components the lock offers our highest level of corrosion resistance across the entire range.
Stainless steel anti-drill discs ensure a high mechanical attack resistance while the alignment of the rotary discs gives the lock a high torque resistance.

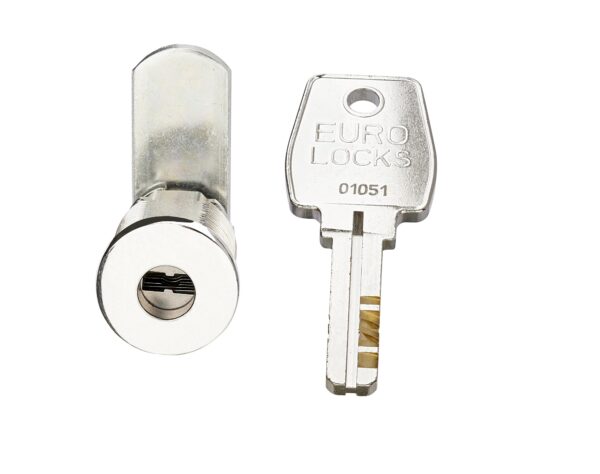

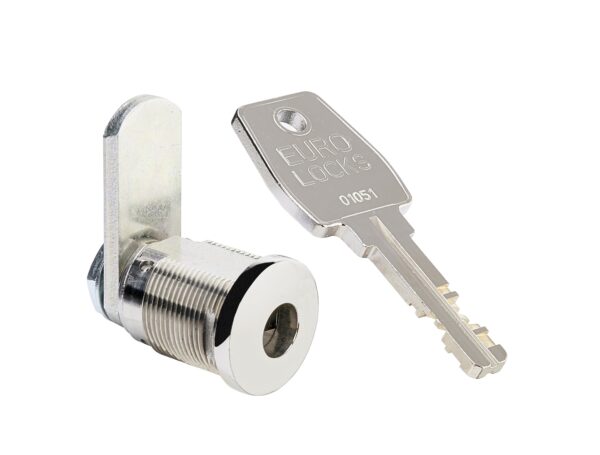

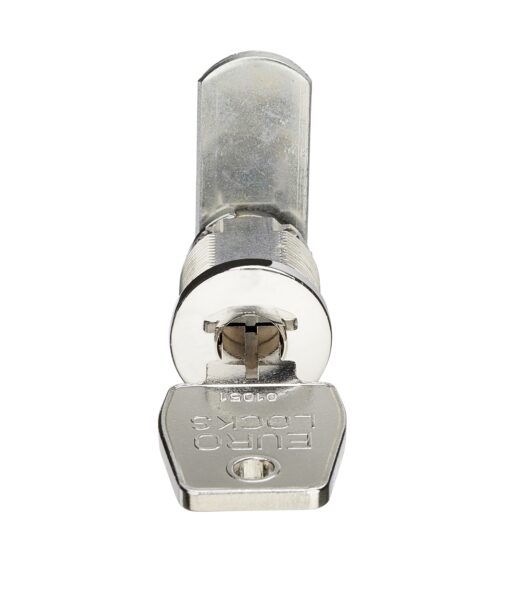

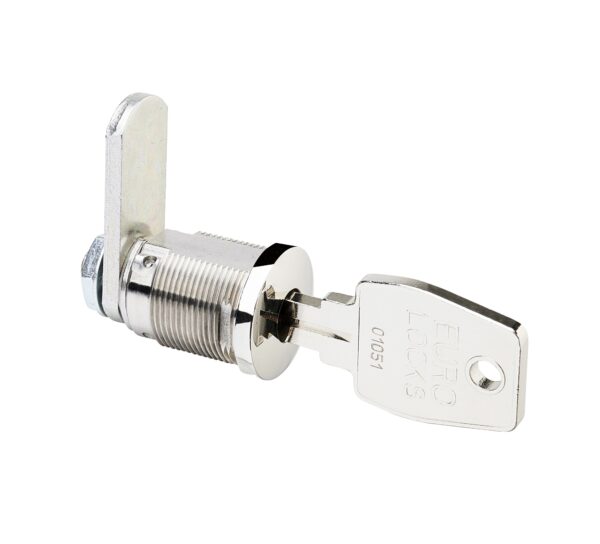

The HSRD lock offers true levels of high security! With more than 9 million key combinations, the lock is operated by use of an exclusive, secure high quality key made from brass (nickel plated).
Designed and manufactured in our European facilities the HSRD lock provides a high level of security for applications including ticketing machines, gaming machines and vending machines.
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Movement | Inquire |
|---|---|---|---|---|---|---|---|---|---|
| A 253 | 9,000,000 | 22.2 | 21.5 | 4.2 | Stainless Steel | Round | 01 (90° CW) | Contact Sales |
- Standard movements: 01 (90° clockwise)
- Lock combinations: 9,000,000
- Standard finish: Stainless steel
- Mounting hole shape: Double D
- Mounting hole size: Ø19.1x16x1
- High picking resistance: 9 million key combinations
- High corrosion resistance: 100% stainless steel components
- Anti-drill disc provides high mechanical attack resistance
- Manufactured to industry standard footprint for retro-fit options
- Comprehensive range of cam options available including straight, notched and cranked
