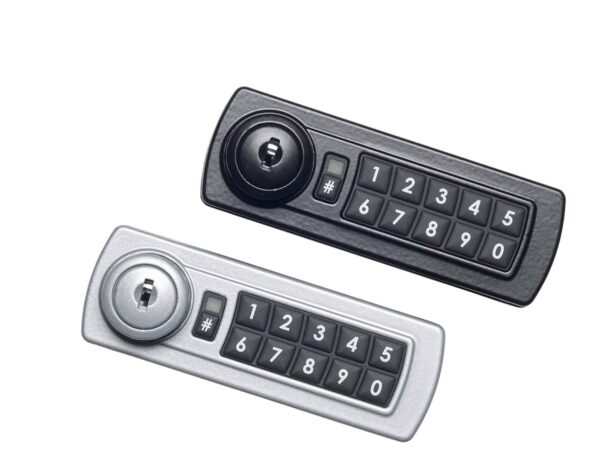

Gemini Electronic Lock 3700

The Gemini 3700 electronic kit lock is a small, easy to use code lock that is available in either electronic or mechanical form. Both versions share the same profile and mounting template, giving maximum flexibility and choice at the point of installation.

View Lock Details
Gemini Electronic Lock 3700
Gemini Electronic Lock 3700

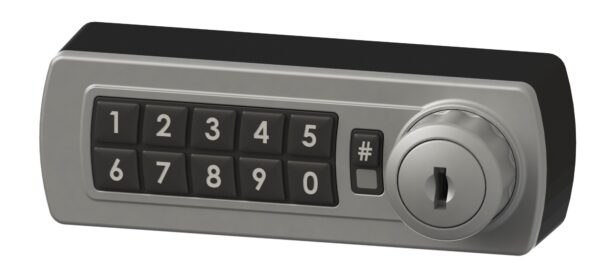

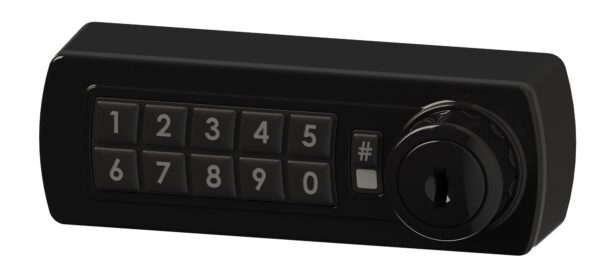

Left Hand Gemini Electronic Lock 3700
Left Hand Gemini Electronic Lock 3700
Left Hand Gemini Electronic Lock 3700
Left Hand Gemini Electronic Lock 3700
Left Hand Gemini Electronic Lock 3700
Left Hand Gemini Electronic Lock 3700

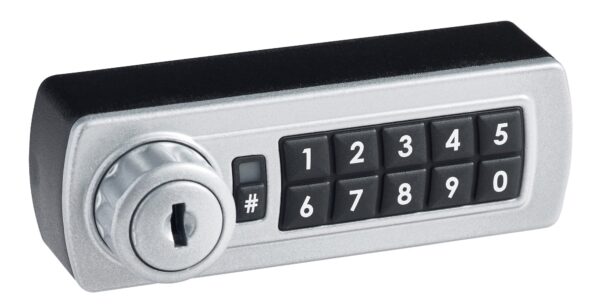

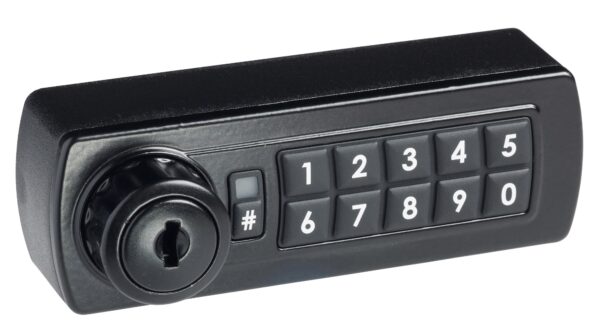

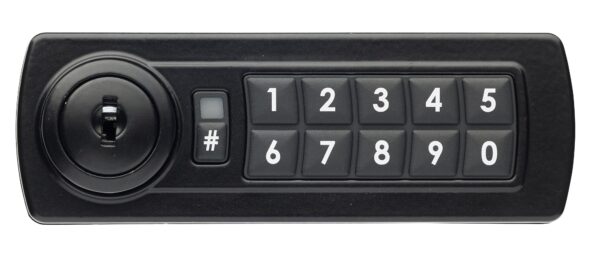

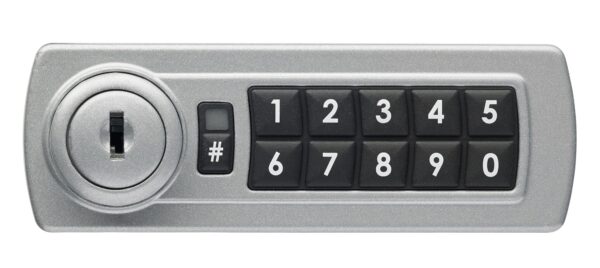

Right Hand Gemini Electronic Lock 3700
Right Hand Gemini Electronic Lock 3700
Right Hand Gemini Electronic Lock 3700
Right Hand Gemini Electronic Lock 3700
Right Hand Gemini Electronic Lock 3700
Right Hand Gemini Electronic Lock 3700
Right Hand Gemini Electronic Lock 3700
Right Hand Gemini Electronic Lock 3700

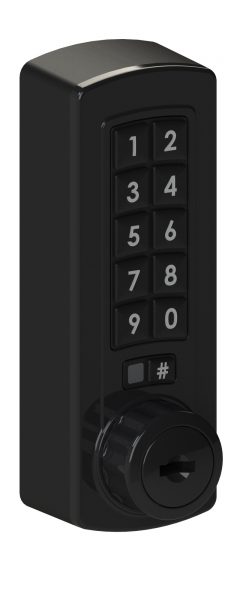

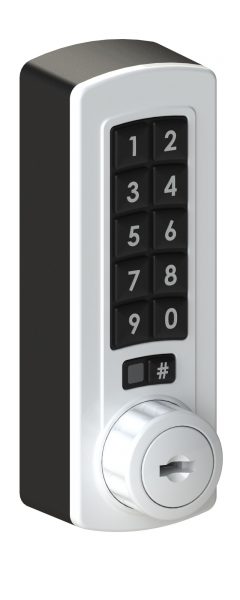

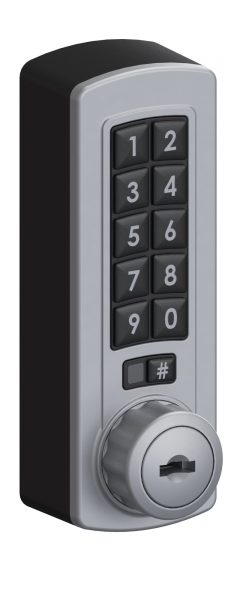

Vertical Gemini Electronic Lock 3700
Vertical Gemini Electronic Lock 3700
Vertical Gemini Electronic Lock 3700
Vertical Gemini Electronic Lock 3700
Vertical Gemini Electronic Lock 3700
Vertical Gemini Electronic Lock 3700
  • Gemini Electronic Lock 3700
  • Left Hand Gemini Electronic Lock 3700
  • Left Hand Gemini Electronic Lock 3700
  • Left Hand Gemini Electronic Lock 3700
  • Right Hand Gemini Electronic Lock 3700
  • Right Hand Gemini Electronic Lock 3700
  • Right Hand Gemini Electronic Lock 3700
  • Right Hand Gemini Electronic Lock 3700
  • Vertical Gemini Electronic Lock 3700
  • Vertical Gemini Electronic Lock 3700
  • Vertical Gemini Electronic Lock 3700
Featured Technicals
Brochure
Brochure
Drawing
Lock Description

This innovative lock range is available in both flush and surface mount form and in a choice of standard or custom colors.

The small footprint and option of vertical or horizontal orientation make Gemini the perfect choice for a wide range of indoor applications including lockers, cabinets and personal storage.

Unique to all our electronic kit locks, you can use the steel override key to bypass the go keyless code lock feature when immediate supervisory access is necessary.

Click here to download the brochure. User, Programming and Installation Guides can be found in the Downloads section below.

NOTE: This product is NOT suitable for outdoor use

Have a question?
Contact Us
Lock Options
Product Code Body Length Body Height Body Width Body Depth Movement Inquire
3700 12 32 94 19 90° Contact Sales
Standard Features
  • Public or private modes
  • Vertical, left and right-hand keypads
  • Flush or surface fit installation options
  • Black, silver or white colour
  • 4-digit user code
  • Mechanical steel override lock
  • 1 x 1/2 AA 3.6V Battery (included)
  • Battery condition indicator
  • LED indicator lights

Optional Features

  • Available with Remote Allocation System (RAS)

Additional Information

Gemini Electronic Lock 3700 technical drawing

Lowe & Fletcher 3700 Gemini Locks (Word Format)

Lowe & Fletcher 3700 Gemini Locks (PDF Format)

Part Number Guide – 3700/-/-/-/-/–

Product Number Movement Keypad
Orientation		 Finish Color RAS
3700
Gemini		 0
+/- 90° (CW and CCW)		 1
Vertical		 1
Powder Coat		 A
White		 -R
2
Horizontal – RH		 B
Black
3
Horizontal – LH		 E
Silver

Gemini – Change the Master Code

Gemini – Change the User Code using the Master Code

Gemini – Change the User Code using the User Code

Gemini – Check Battery Condition

Gemini – Close lock in ‘Private’ Mode

Gemini – Close lock in ‘Public’ Mode

Gemini – Open lock using the Master Code

Gemini – Open lock using the User Code

Gemini – Set lock to ‘Private’ Mode

Gemini – Set lock to ‘Public’ Mode
