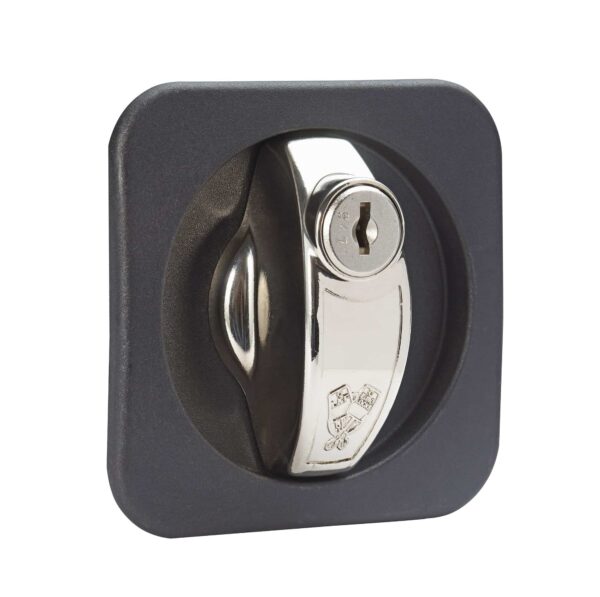

Flush Fitting Handle F725
A range of flush fitting handles available with a silver (powdercoated) or nickel plated handle. Available in right or left-hand versions and with a minimal projection, this handle is ideal for various applications including Metal Office Furniture, Enclosures and Lockers.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Handle Depth | Cam Type | Handed | Handle Diameter | Max Panel Thickness | Movement | Rose Finish | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F710 | 2000 | 13 | 20 | Retainer Clip | Right | 85 | 0.8 – 1.2 | 1 | Black Plastic | Contact Sales | |
| F711 | 2000 | 13 | 20 | Washer Starlock | Right | 85 | 0.8 – 1.2 | 1 | Black Plastic | Contact Sales | |
| F716 | 2000 | 13 | 20 | Retainer Clip | Right | 85 | 0.8 – 1.2 | 1 | Black Plastic | Contact Sales | |
| F717 | 2000 | 13 | 20 | Washer Starlock | Right | 85 | 0.8 – 1.2 | 1 | Black Plastic | Contact Sales | |
| F725 | 500 | 13 | 20 | Retainer Clip | Left, Right | 85 | 0.8 – 1.2 | 1 | Black Plastic | Contact Sales | |
| F726 | 500 | 13 | 20 | Washer Starlock | Left, Right | 85 | 0.8 – 1.2 | 1 | Black Plastic | Contact Sales |
Standard Features
- Lock combinations: 500 – 2,000
- Standard movements: 1
- Standard finish: Rose: Black Plastic, Handle: Silver (powdercoated) or Nickel Plated
- Panel thickness: 0.8mm – 1.2mm
- Mounting hole shape: Squared
- M Keyed system supplied to order only
Additional Information
Flush Fitting Handle F725 technical drawing
