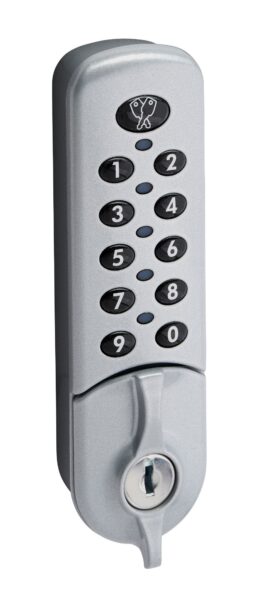

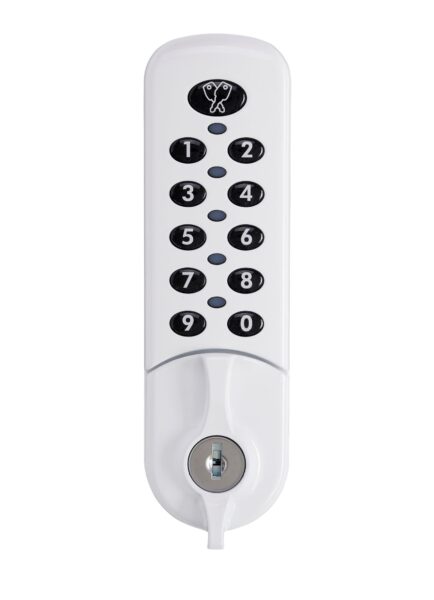

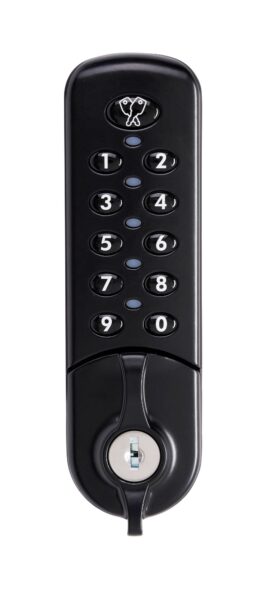

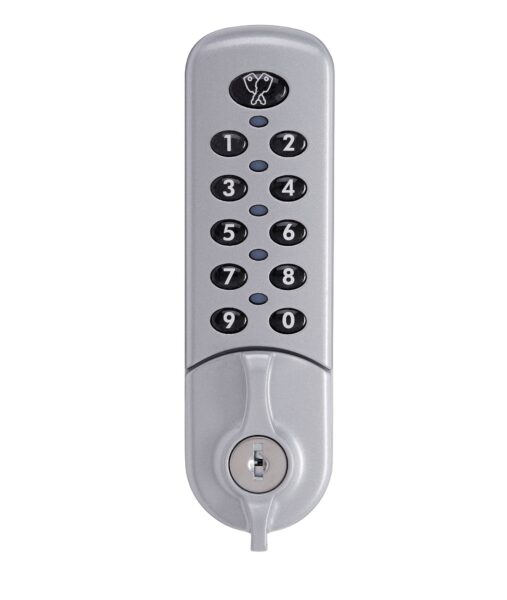

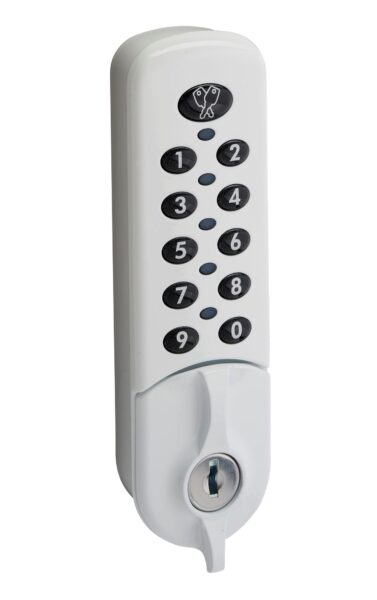

Flush Fit Electronic Lock 3784

The flush fit electronic kit lock has a reduced foot print when compared to the electronic lock 3780 and is held in position by a simple to install back plate that suits a wide range of panel thicknesses.

View Lock Details
Featured Technicals
Lock Description

Unique to all our electronic kit locks, you can use the steel override key to bypass the go keyless code lock feature when immediate supervisory access is necessary.

Compatible with the RAS remote allocation system, applications include Healthcare, Metal and Wooden Office Furniture, Lockers and Mail Boxes.

For further information email or contact us on +1 (616) 994 0490.

User, Programming and Installation instructions can be found in the Downloads section below.

Have a question?
Lock Options
Product Code Body Height Body Width Mounting Inquire
3784 143.5 42.6 Flush Fit Contact Sales
Standard Features
  • Public or private user modes

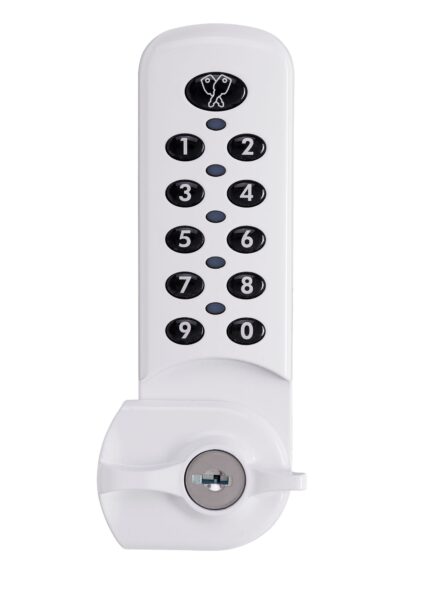

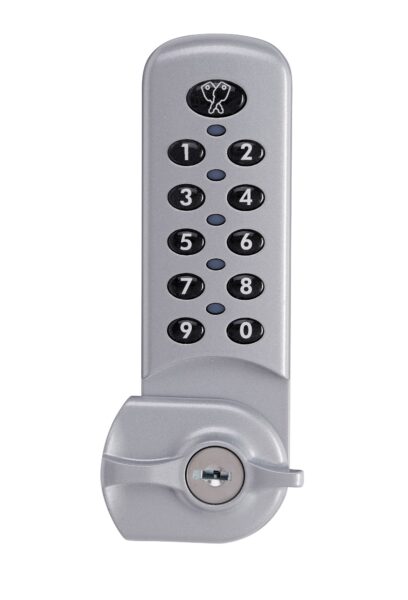

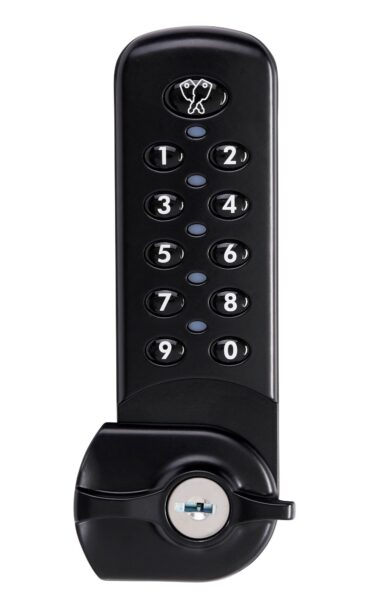

  • Vertical, left and right-hand keypads

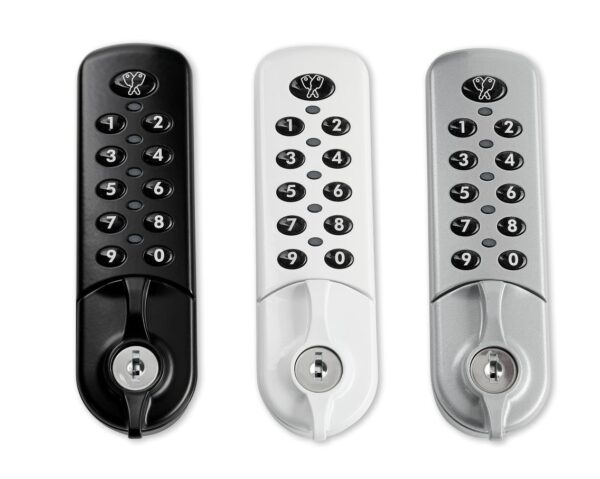

  • Black, silver or white color
  • 8-digit master code
  • 6-digit sub-master code
  • 4-digit user code
  • Mechanical steel override key
  • 2 x AA batteries (included)
  • Up to 80,000 cycles per pair of batteries
  • Battery condition indicator
  • LED indicator lights
  • Two or three-point mounting
  • Audible keypad
  • Auto unlock mode
  • Additional colors and finishes available
  • 37mm or 41mm spindle length

Optional Features

  • Available with Remote Allocation System (RAS)
  • Slam bolt
  • Door open alarm
  • Alternative colors
  • Pre-programmed modes and codes
  • Customized logo

Additional Information

Flush Fit Electronic Lock 3784 technical drawing

Part Number Guide – 3784/-/-/-/-/–

Product Number Barrel
Length
Keypad
Orientation
Finish Color RAS
3784
Flush Fit
DCL
1
37mm
1
Vertical
1
Powder Coat
A
White
-R
2
RH
B
Black
2
41mm
3
LH
E
Silver

Zenith – Change Master Code

Zenith – Change the User Code using the Master Code

Zenith – Change the User Code using the User Code

Zenith – Check Battery Condition

Zenith – Close lock in ‘Private’ Mode

Zenith – Close lock in ‘Public’ Mode

Zenith – Open lock using the Master Code

Zenith – Open lock using the User Code

Zenith – Set lock to ‘Private’ Mode

Zenith – Set lock to ‘Public’ Mode
