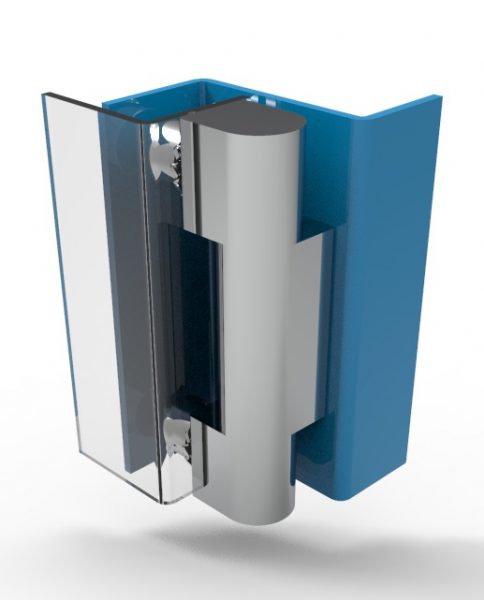

External Hinge Z306
An external hinge with a 180° maximum hinge rotation angle. These hinges can be used to maximise space inside enclosure applications such as doors and access panels and can also be used to hold the door open or closed on larger enclosures.
Lock Options
| Product Code | Material | Max Hinge Rotation Angle | Inquire |
|---|---|---|---|
| Z306 | Brass | 180° | Contact Sales |
Standard Features
- Material: Brass
- Pin manufactured from Stainless steel
- Fixing screws and washers included
Additional Information
External Hinge Z306 technical drawing
| Product Number | Material | Optional finish | ||
| Z306 | MA
Brass |
7 B
Nickel plated |
||
| 2 A
Chrome plated |
||||
| 2 C
Satin Chrome plated |
||||
| 6 A
Zinc plated |
||||
| Example | ||||
| Z306 | MA | 2 C | ||
