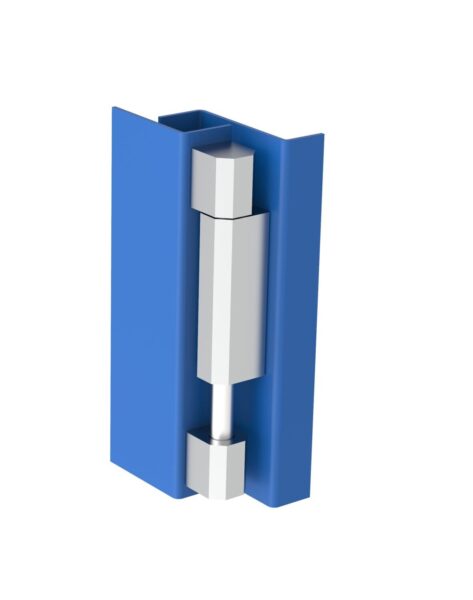

External Hinge Z305
An external corner hinge with the additional function of lifting the door after opening. This lifting function secures the door against accidental opening. In the closed postition, hooks mounted on the inside of the door are anchored in notches in the door frame and protect the door against accidental opening. This hinge is widely used in electrical cabinets, power cabinets and control cabinets.
Lock Options
| Product Code | Finish | Material | Max Hinge Rotation Angle | Stroke | Inquire |
|---|---|---|---|---|---|
| Z305 | Zinc Plate | Steel | 180° | 22 | Contact Sales |
Standard Features
- Max opening angle: 180°
- Stroke: 22mm
- Material: Steel
- Finish: Zinc plated
Additional Information
External Hinge Z305 technical drawing
