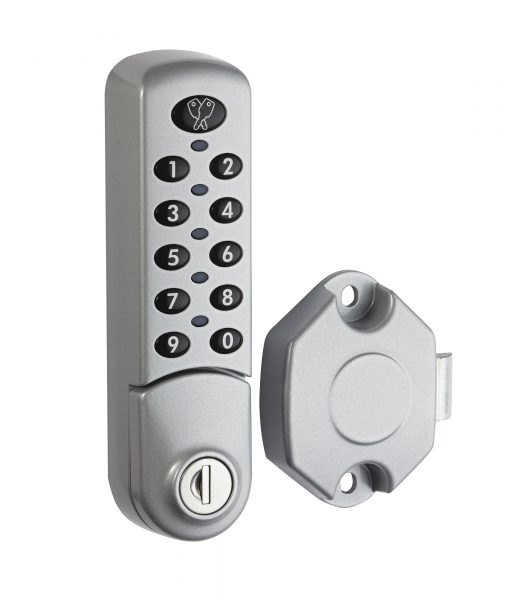

Electronic Slamlock 37800/2382
The keyless, electronic slamlock 37800 has the same design and features as the standard 3780 electronic code lock, but with a ‘slam’ action cam lock. This means the door will automatically lock when closed or slammed shut.
The lock comprises of a standard electronic code lock 3780 with an “0” barrel length, and a slamlock attachment 2382 shown in the Technical Drawing below.
Unique to all our electronic locks, you can use the steel override key to bypass the go keyless code lock feature when immediate supervisory access is necessary.
Compatible with the RAS remote allocation system, typical applications for this lock include Enclosures, Lockers and Mail Boxes.
For further information email or contact us on +1 (616) 994 0490.
| Product Code | Body Height | Body Width | Body Depth | Barrel Length | Inquire |
|---|---|---|---|---|---|
| 37800 | 136 | 37 | 27 | 1.0mm | Contact Sales |
- Black, silver or white color
- Steel override key
- Two or three point mounting
- Wide variety of cams
- LED indicator lights
- Audible keypad
- Battery condition indicator
- 8-digit master code
- 6-digit sub-master code
- 4-digit user code
- Private or public user modes
- Auto unlock mode
- Technician mode
- 2 x AA batteries (included)
- Up to 80,000 cycles per pair of batteries
- Vertical, left and right hand mounting
Optional Features
- Available with Remote Allocation System (RAS)
- Door open alarm
- Alternative colors
- Pre-programmed modes and codes
- Customized logo
Additional Information
Part Number Guide – 3780/-/-/-/-/–
| Product Number | Barrel Length |
Keypad Orientation |
Finish | Color | RAS |
| 3780 Standard DCL |
0 1mm |
1 Vertical |
1 Powder Coat |
A White |
-R |
| 2 RH |
B Black |
||||
| 3 LH |
E Silver |
Zenith – Change Master Code
Zenith – Change the User Code using the Master Code
Zenith – Change the User Code using the User Code
Zenith – Check Battery Condition
Zenith – Close lock in ‘Private’ Mode
Zenith – Close lock in ‘Public’ Mode
Zenith – Open lock using the Master Code
Zenith – Open lock using the User Code
Zenith – Set lock to ‘Private’ Mode
Zenith – Set lock to ‘Public’ Mode
