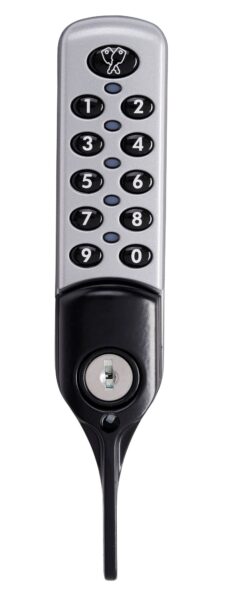

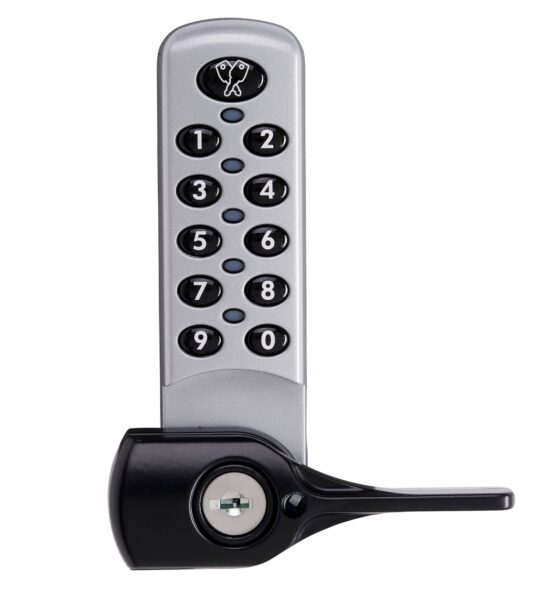

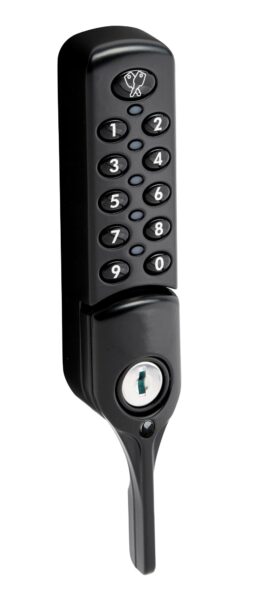

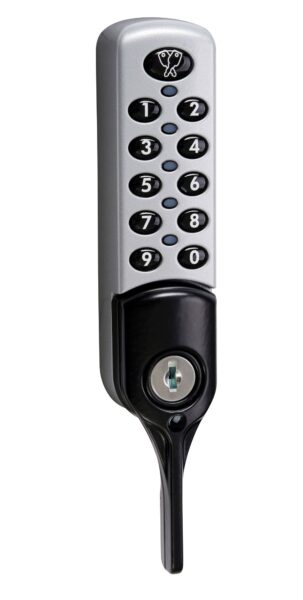

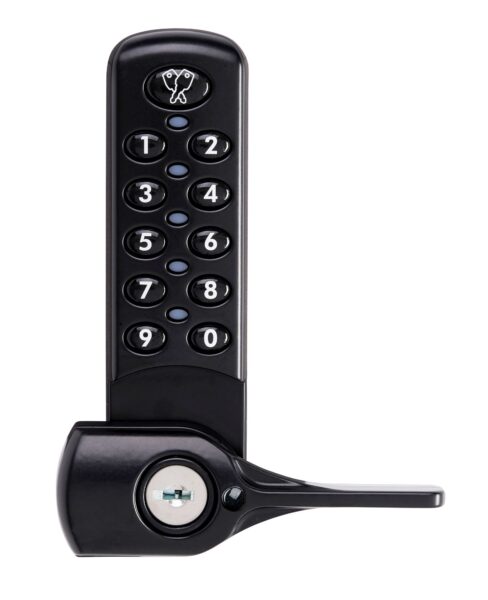

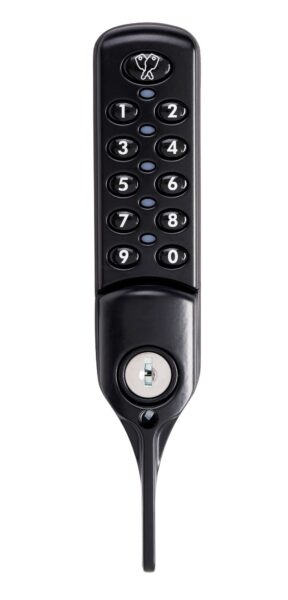

Electronic Lock (ADA compliant) 3782
The Lowe & Fletcher Electronic Lock (model 3782) offers an effective solution that prioritizes both accessibility and security. Compliant with ADA guidelines, the 3782 is ideal for schools, public buildings, offices and any environment requiring a user-friendly locking system.
-3782.svg){kind=link}
This keyless entry system allows for programmable user codes, providing secure access control. Establish a master code for overall control, sub-master codes for designated groups and individual user codes for personalized access.
Additionally, a steel override key ensures access in case a code is forgotten.
For even greater management convenience, especially in busy settings, the 3782 electronic locking system seamlessly integrates with our RAS remote allocation system.
For further information download the brochure above, email or contact us on +1 (616) 994 0490.
User, Programming and Installation instructions can be found in the Downloads section below.
Accessibility for All: ADA-compliant locks ensure that everyone can access a secured space with ease. This includes users with physical limitations, such as those with reduced grip strength and vision impairment.
Improved Security: While designed for accessibility, our ADA-compliant locks don’t compromise on security. Utilizing keyless entry systems with programmable codes these specialized locking systems eliminate the need for physical keys that can be lost or stolen.
Compliance with Regulations: In many cases, buildings are required by law to adhere to ADA accessibility standards. ADA-compliant locks ensure compliance.
Long-Term Value: Investing in ADA locks can be a cost-effective decision in the long run. Their durable design and focus on ease of use can minimize maintenance and replacement needs.
Applications
ADA-compliant locks are well-suited to various settings
- Public Buildings (such as schools, libraries and communities centers)
- Workplaces
- Healthcare Facilities
- Retail & Hospitality
- Multi-Unit Housing
| Product Code | Body Height | Body Width | Body Depth | Inquire |
|---|---|---|---|---|
| 3782 | 185.5 | 37 | 28.7 | Contact Sales |

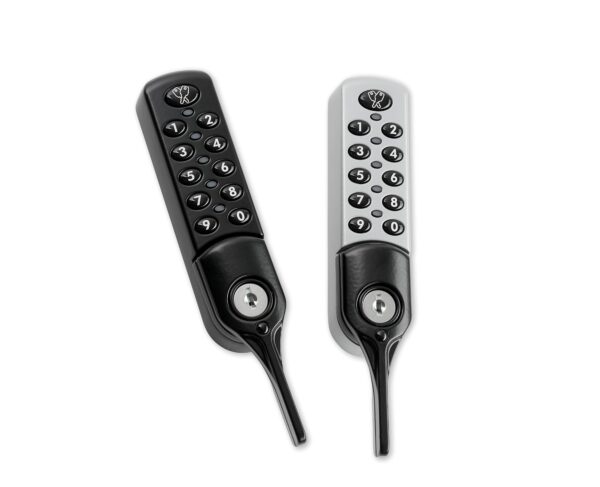

- Black, silver or white color
- Steel override key
- Two or three point mounting
- Wide variety of cams
- LED indicator lights
- Audible keypad
- Battery condition indicator
- 8-digit master code
- 6-digit sub-master code
- 4-digit user code
- Private or public user modes
- 20mm or 24mm spindle length
- Auto unlock mode
- Technician mode
- 2 x AA batteries (included)
- Up to 80,000 cycles per pair of batteries
- Vertical, left and right hand mounting
Optional Features
- Available with Remote Allocation System (RAS)
- Slam bolt
- Door open alarm
- Alternative colors
- Pre-programmed modes and codes
- Customized logo
Additional Information
Part Number Guide – 3782/-/-/-/-/–
| Product Number | Barrel Length |
Keypad Orientation |
Finish | Color | RAS |
| 3782 ADA DCL |
0 1mm |
1 Vertical |
1 Powder Coat |
A White |
-R |
| 1 20mm |
2 RH |
B Black |
|||
| 2 24mm |
3 LH |
E Silver |
Zenith – Change Master Code
Zenith – Change the User Code using the Master Code
Zenith – Change the User Code using the User Code
Zenith – Check Battery Condition
Zenith – Close lock in ‘Private’ Mode
Zenith – Close lock in ‘Public’ Mode
Zenith – Open lock using the Master Code
Zenith – Open lock using the User Code
Zenith – Set lock to ‘Private’ Mode
Zenith – Set lock to ‘Public’ Mode
