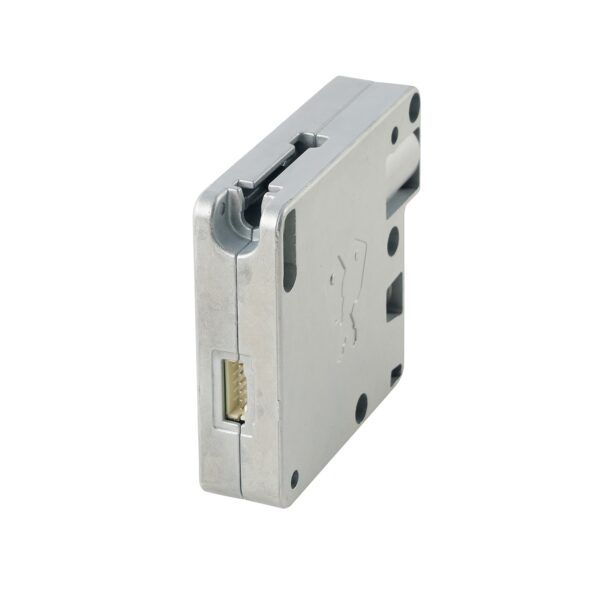

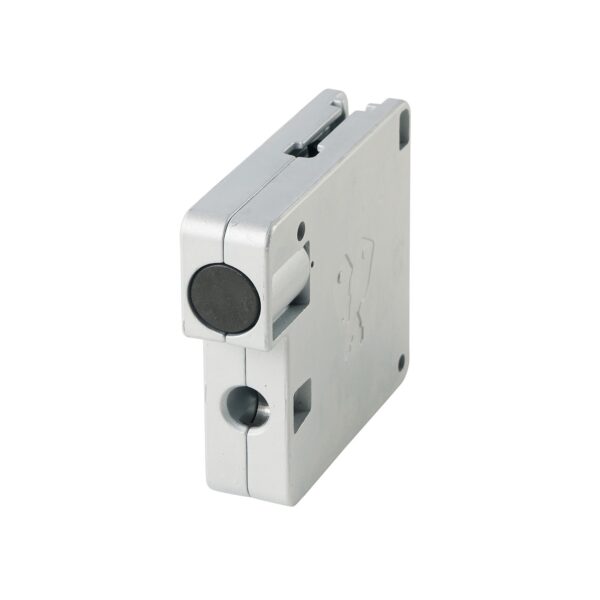

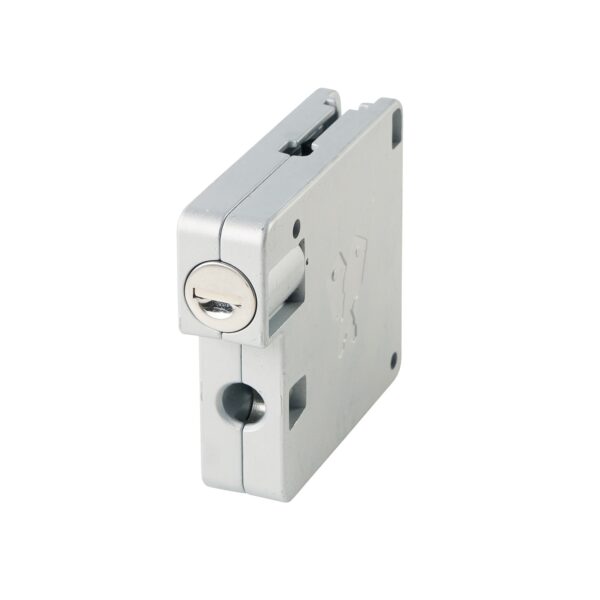

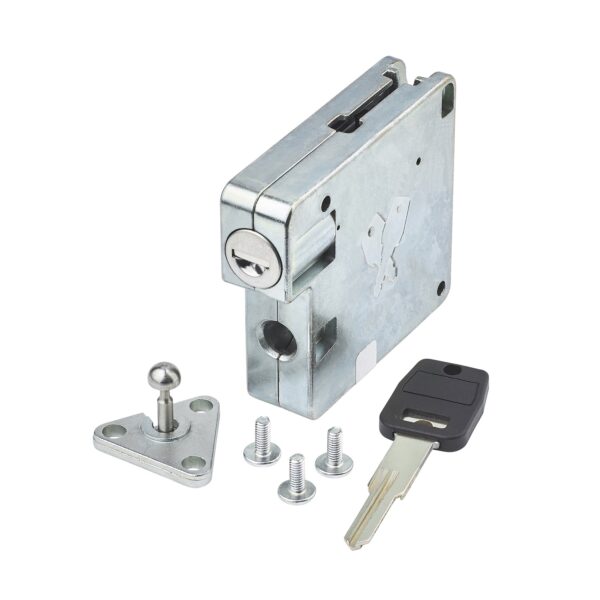

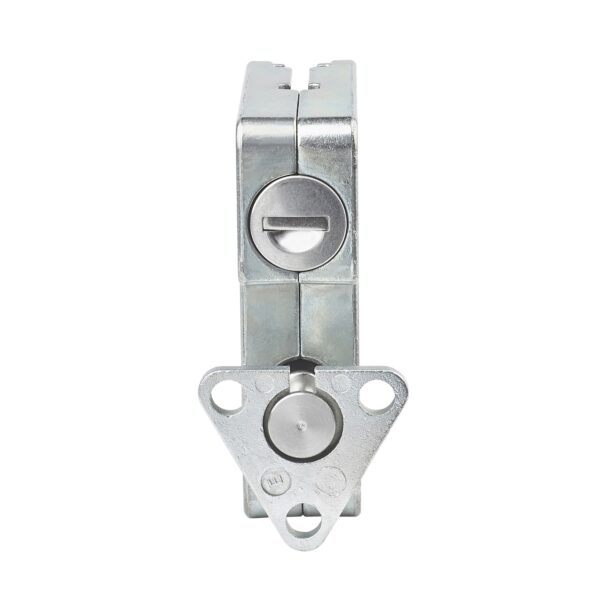

Electronic Latch Lock 3792 (5V) & 3793 (12V)

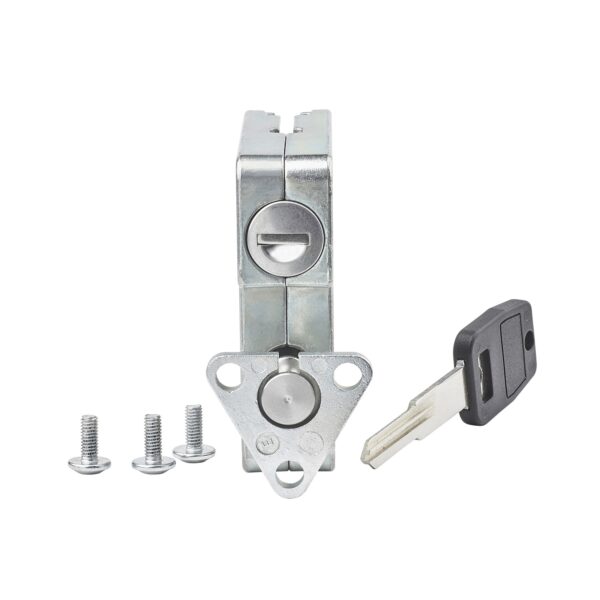

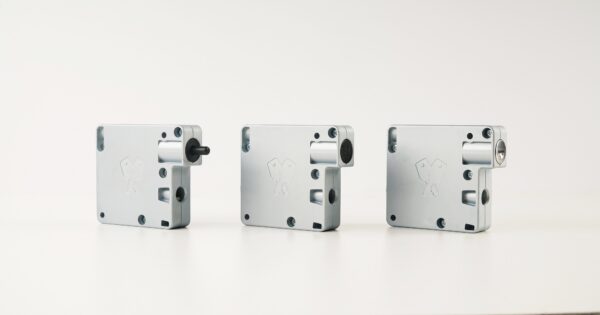

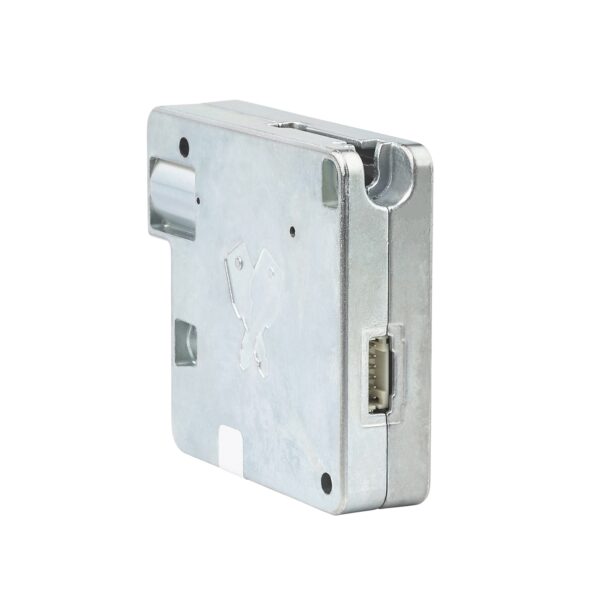

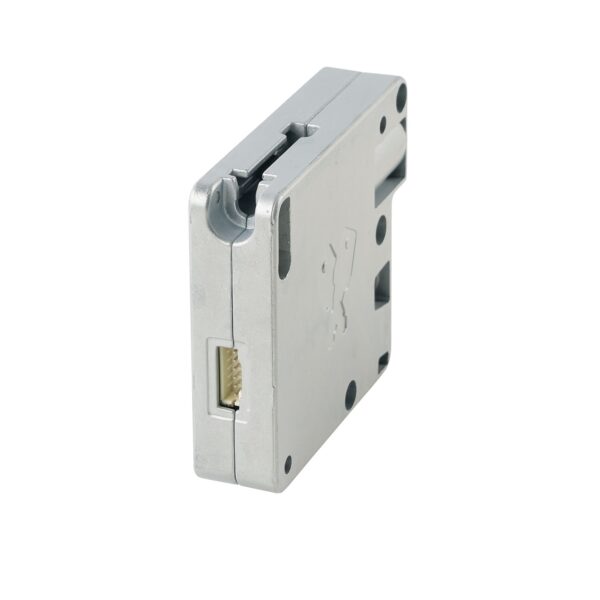

The 3792 (5V) and 3793 (12V) electronic latch locks incorporate a number of innovative features. These include both key and mechanical cable overrides, a floating door bolt to accommodate potential door mis-alignment, and a precision motor driven mechanism with powerful operation even under load.
Lock Description
These latches have been designed for easy connection and control and include an internal sensor for feedback on whether the door is closed. They have a push-to-lock action and on opening will push the door slightly ajar. For even greater door movement a spring-loaded plunger is available as a replacement for the key override barrel.
The latches are supplied with a door mounted striker bolt (customer to specify flush fit or 2mm stand-off) and come with a 2, 4 or 6 meter cable (customer to specify).
Rigorously tested for durability and reliability, these latches are compatible with our Zodiac Smart Locking System and are ideal for use on a wide variety of smart lock applications such as personal lockers, package and delivery systems, asset management systems and other enclosures.
Have a question?
Lock Options
| Product Code | Body Height | Body Width | Body Depth | Finish | Inquire |
|---|---|---|---|---|---|
| 37928K (5V) | 70 | 80 | 20 | Silver Electrophoretic | Contact Sales |
| 37938K (12V) | 70 | 80 | 20 | Silver Electrophoretic | Contact Sales |
Standard Features
- Rugged cast alloy construction
- Compact size (70 high x 80 long x 20 thick)
- Two, Ø4 attachment holes
- Plug-in connection
- Fail secure if the power supply is disrupted
- Easy connectivity
- Optional mechanical cable over-ride
- Mechanical 10-disc key over-ride (1 key per 50 locks)
- Removable over-ride lock cylinder

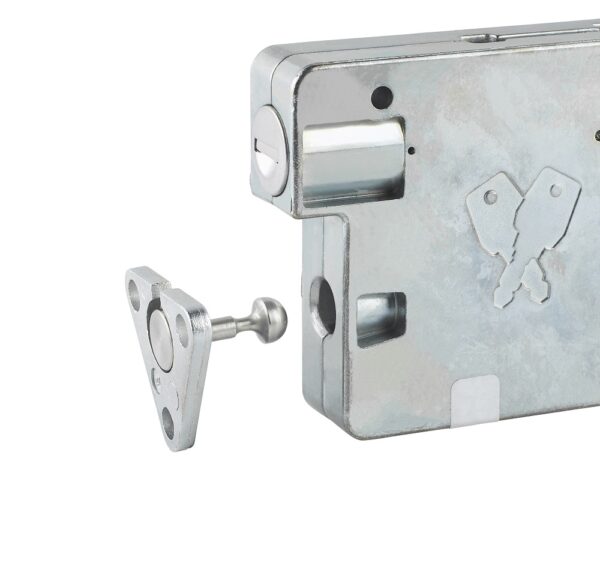

- Ball ended, safe striker
- Floating striker attachment allows for door misalignment
- Wide tolerance striker socket
- On-board intelligence – Easy control options
- Door closed feedback (When locked)
Technical Data
- Interface: JST – S6B – PH – SM4 – TB
- Dimensions: 70 x 80 x 20mm
- Pull out force: 3000N
- Maximum load for electronic opening: 150N at 5V and 12V
- Housing material: Zinc alloy
- Weight: 350g
- Operating temperature range: -10 to +50 °C
- Standby current: 1.4mA
- Maximum current draw: 300mA
Additional Information
Electronic Latch Lock 3792 (5V) & 3793 (12V) technical drawing

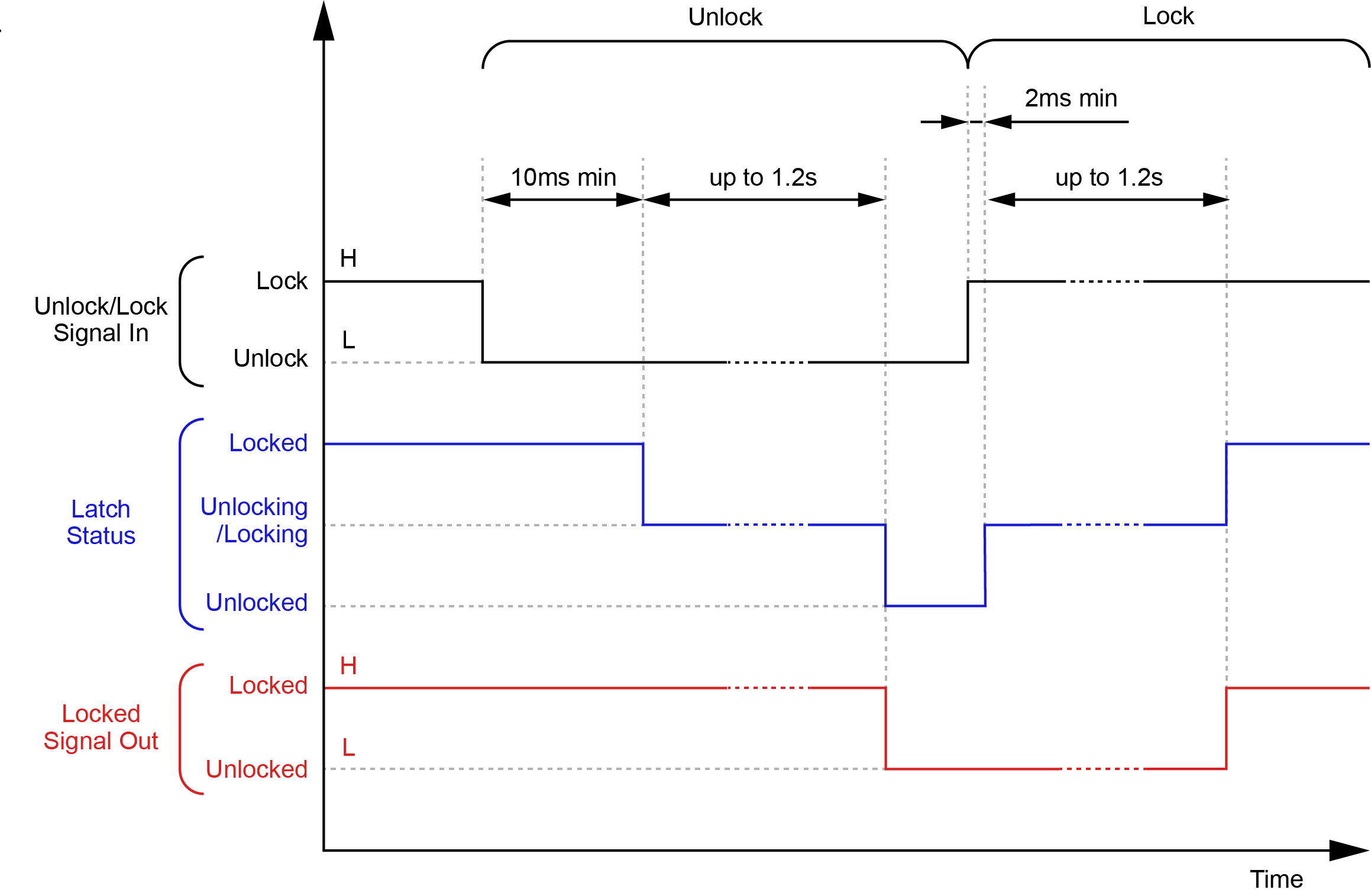

The latch input and outputs connect directly to an on-board microprocessor (uC). There is one input to specify lock/unlock (2). This is internally pulled up. When it is connected to VCC (1) or left unconnected the latch will be locked. The latch will unlock when lock/unlock (2) is pulled low (connected to ground) for longer than 10ms.
There are three outputs that indicate the status of the latch. The presence of a latch is indicated by a low signal on the latch present output (3).
The locked status (4) indicates whether the latch is in the locked position (high) or not (low). When this output is high the latch internally is in the locked state. If the door is still open, it will be locked shut when it is next closed.
The latched status (5) indicates whether the striker bolt is latched into the lock (high) or not (low). This identifies whether the door is shut and locked or not. If the latch is unlocked (see above), the latched indicator will always be low.

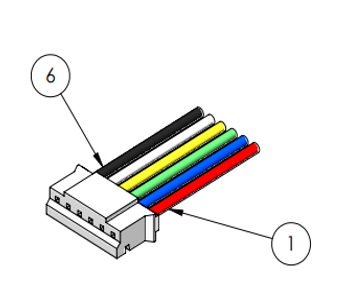

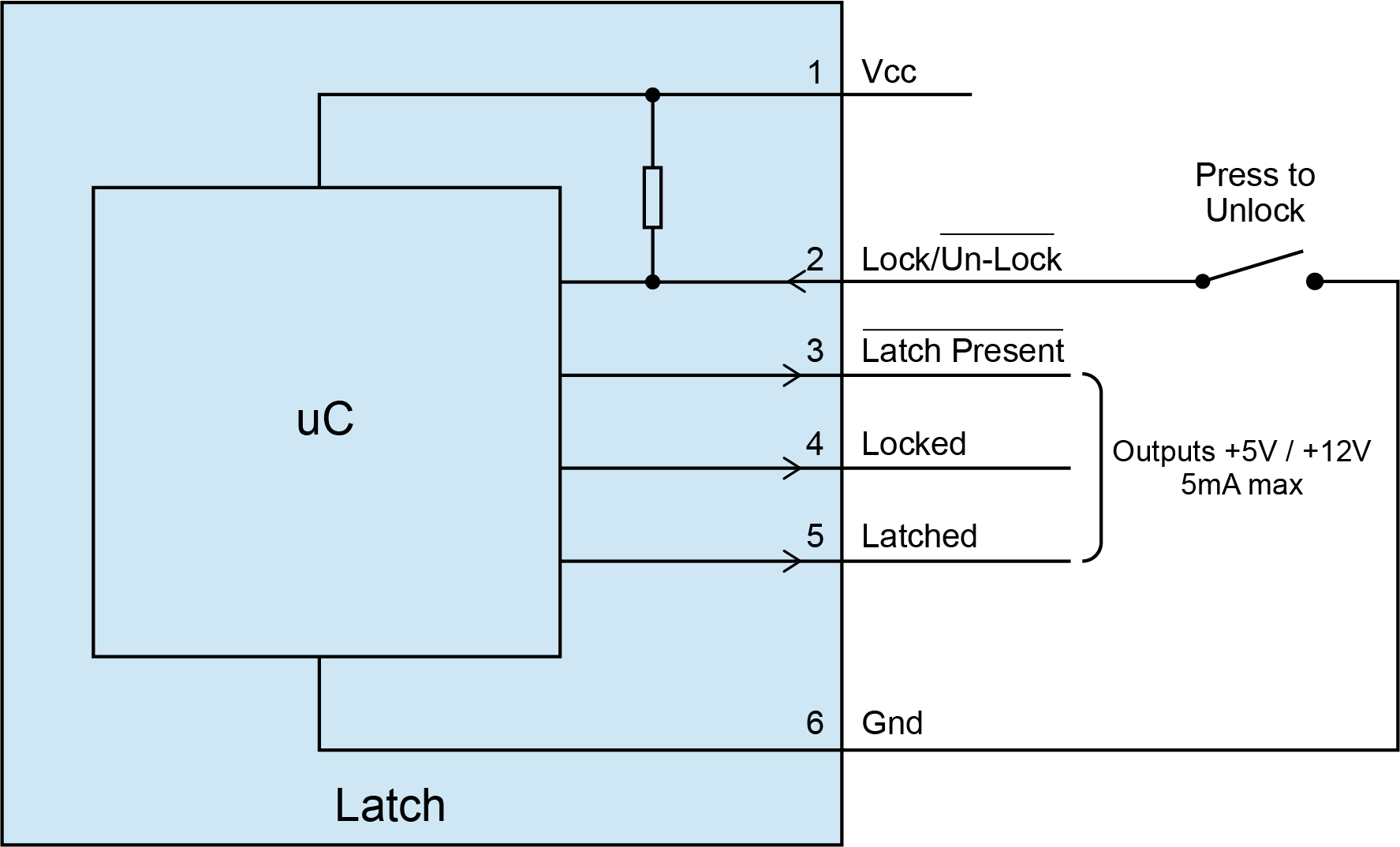

Connection Diagram
| Male Connector | |
| MPN | JST, PHR-6 |
| Pin | Description |
| 1 | +5V or +12V |
| 2 | In – lock/unlock |
| 3 | Out – latch present (active low) |
| 4 | Out – locked (active high) |
| 5 | Out – latched (active high) |
| 6 | Ground |
Electrical Information
Accessories

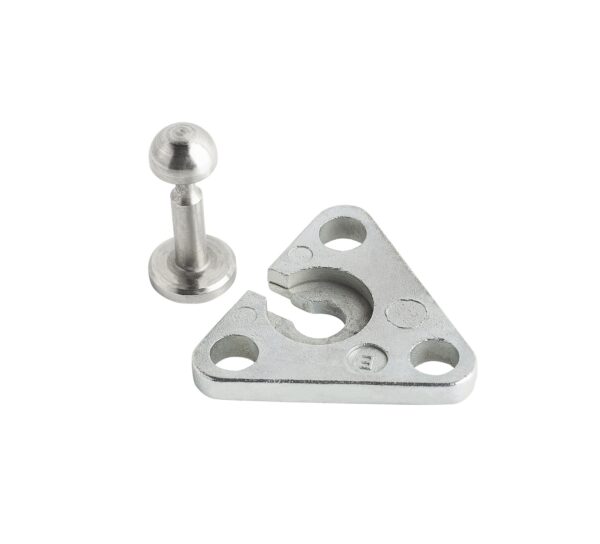

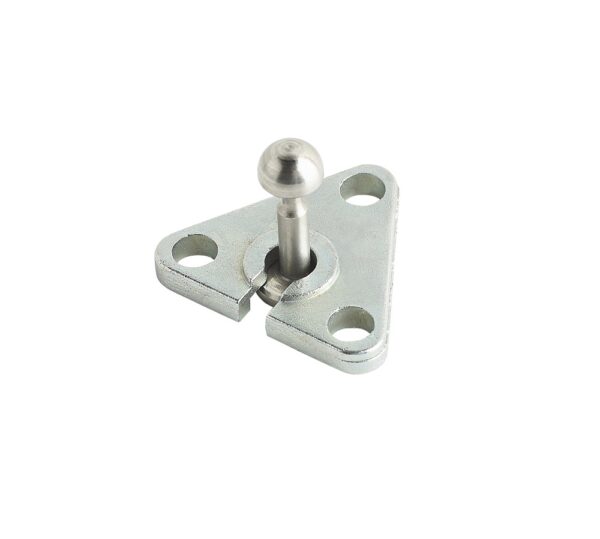

Striker
| Product Code | Description | 'X' Dimension |

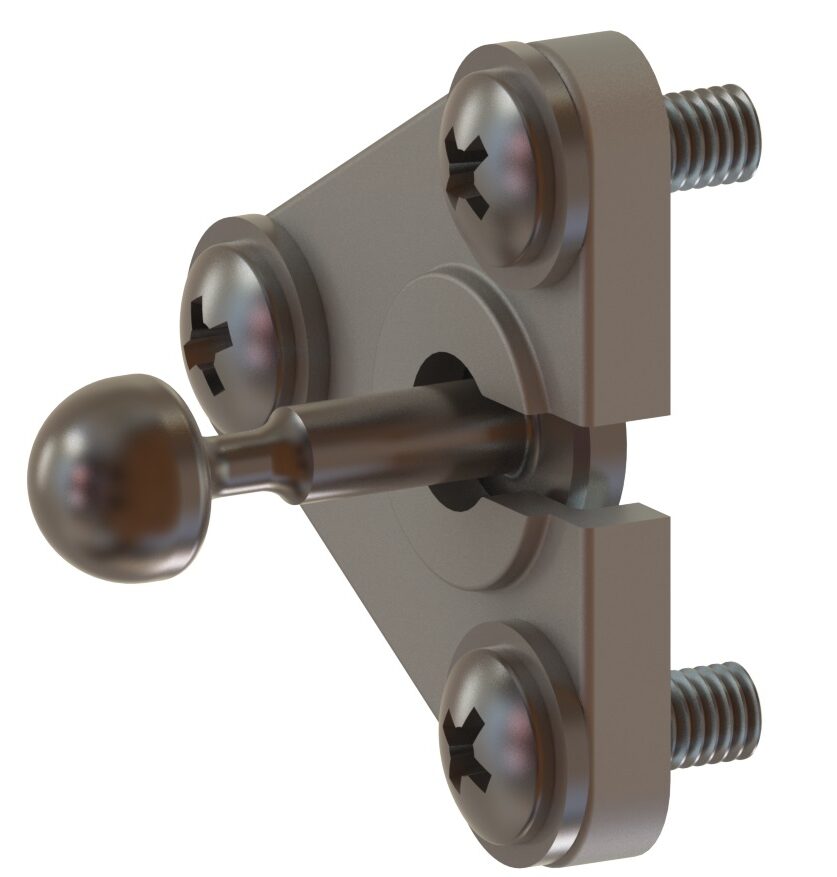

| 9519010 | Striker assembly (flush fit) | 20mm |
| 9519011 | Striker assembly (2mm stand-off) | 22mm |
Plug Barrel Replacement
| Product Code | Description |

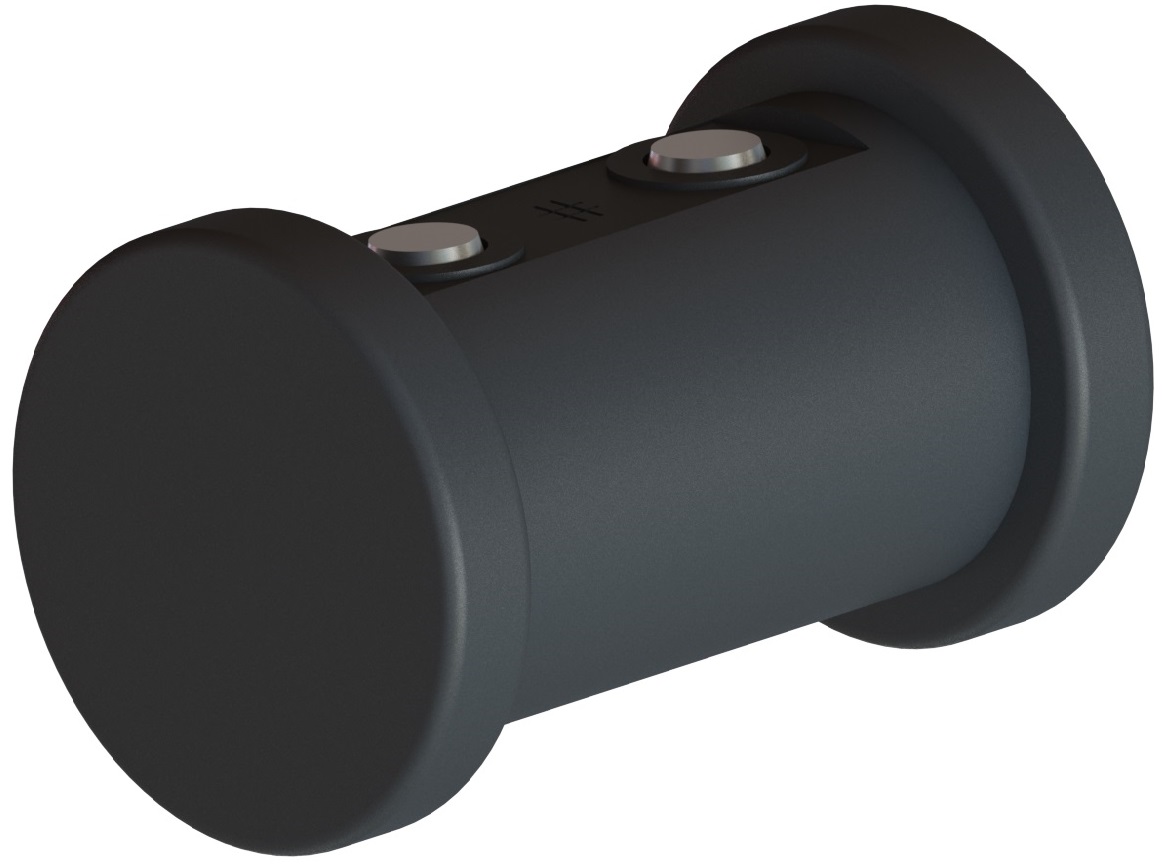

| 9235435 | Plug (barrel replacement with anti-drill pins) |

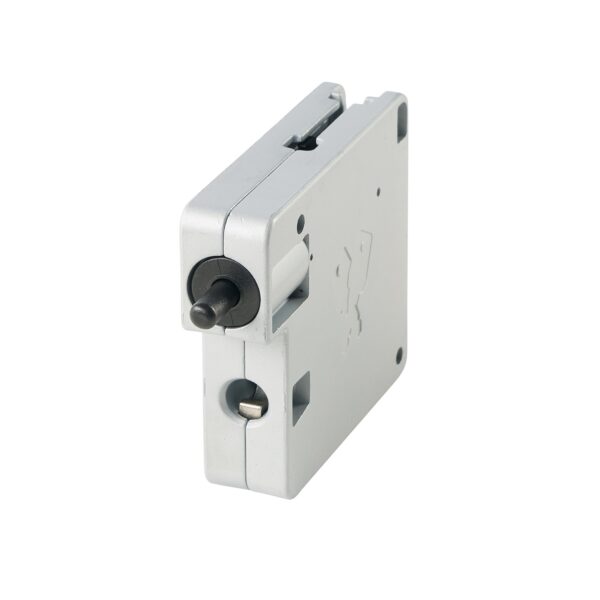

Door Plunger
| Product Code | Description |

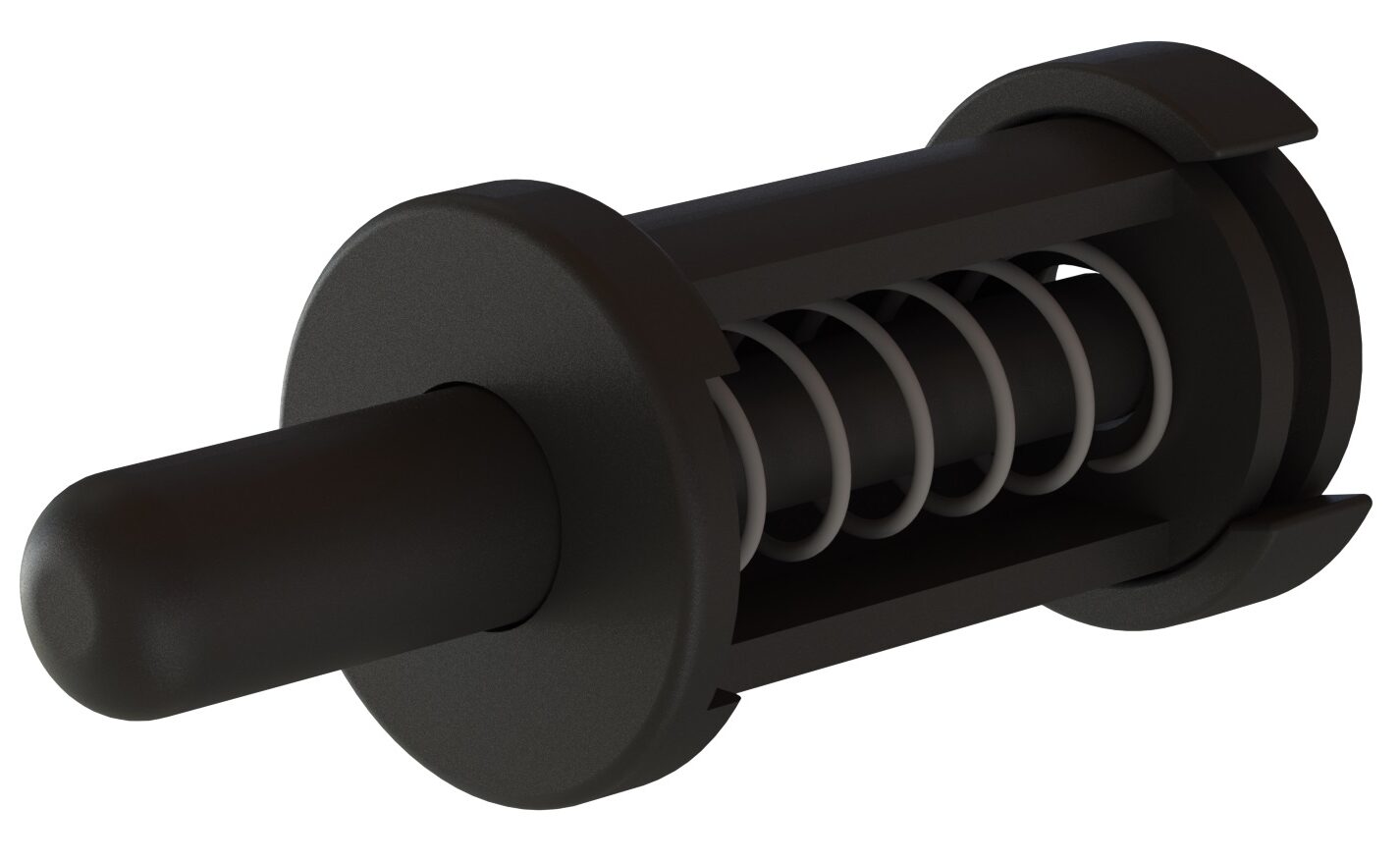

| 9519013 | 13mm Spring Loaded door plunger (Replaces Barrel Override) |

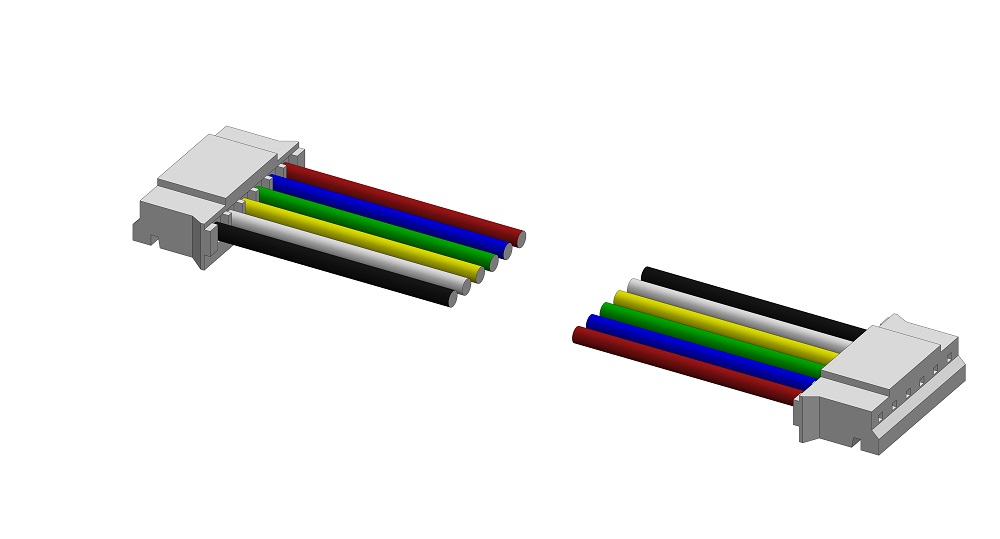

Cable
| Product Code | Description |
| 9560520 | 2 Metre Cable |
| 9560540 | 4 Metre Cable |
NOTE: All cables have male connectors both ends

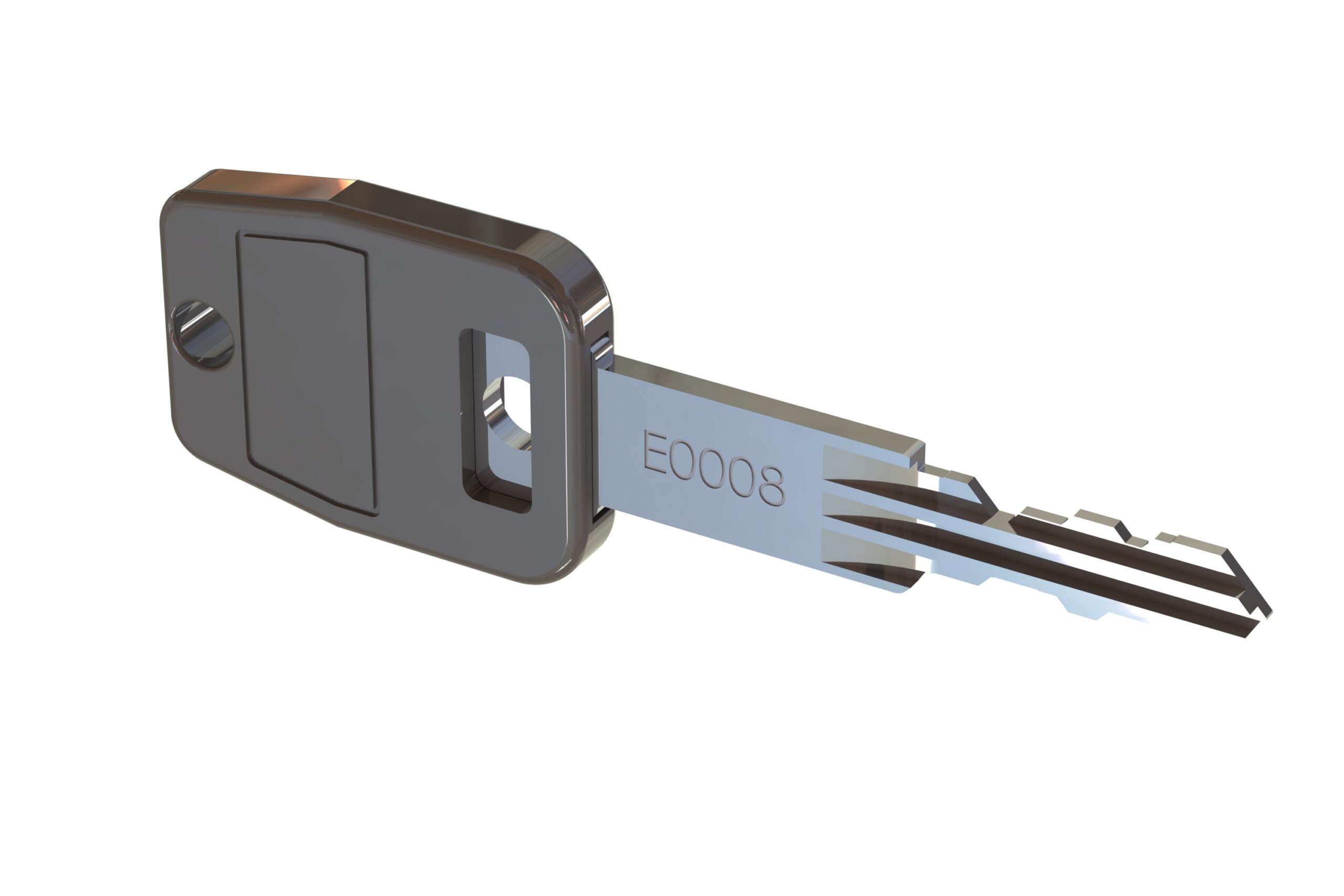

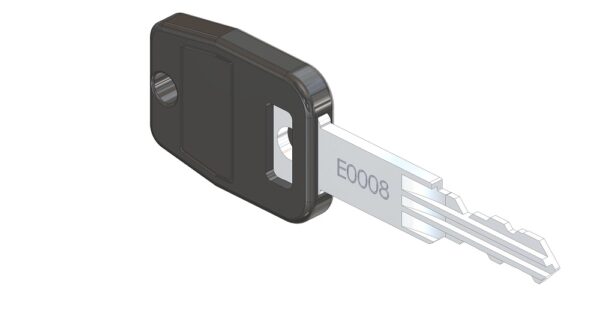

Override Key
| Product Code | Description |
| 9300124 | Extra extended Override Key |
NOTE: One per 50 locks/order as standard
