Electronic Kit Lock for Steel Lockers 3790

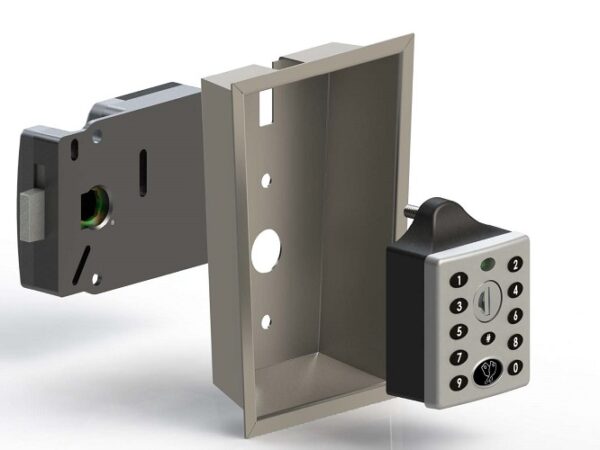

This digital combination lock has been uniquely designed to install quickly and easily to most traditional multi-point metal lockers with a recessed cup. The two-part design simply clicks together and is secured with two nuts.

View Lock Details
Featured Technicals
Lock Description

The lock can be installed to new lockers or retrofitted to existing lockers due to it fitting the standard three-hole footprint.

A 4 digit user code unlocks and locks the lock and an 8 digit master code can be used by a facility manager for programming and override functions. A simple mechanical steel key also ensures the locker can be opened quickly in the event of an emergency, searching, or for user assistance.

The standard AA batteries will last up to 80,000 operations and the status can be checked at any time by simply pressing a button for an indication of remaining battery life. When batteries eventually need to be changed it is a simple operation with no need to remove the lock from the locker .

The lock can be supplied in public mode (also known as day use or shared use mode) for temporary assignment or in private mode for permanent assignment. It can also be changed between public and private modes at any time in the future.

Unique to our electronic kit locks, you can use the steel override key to bypass the go keyless code lock feature when immediate supervisory access is necessary.

For further information download the brochure, email or call us on +1 (616) 994 0490.

User, Programming and Installation instructions can be found under Downloads below.

Have a question?
Lock Options
Product Code Head Height Head Width Head Depth Inquire
3790 73.5 52 28 Contact Sales
Standard Features
  • Public or private user modes

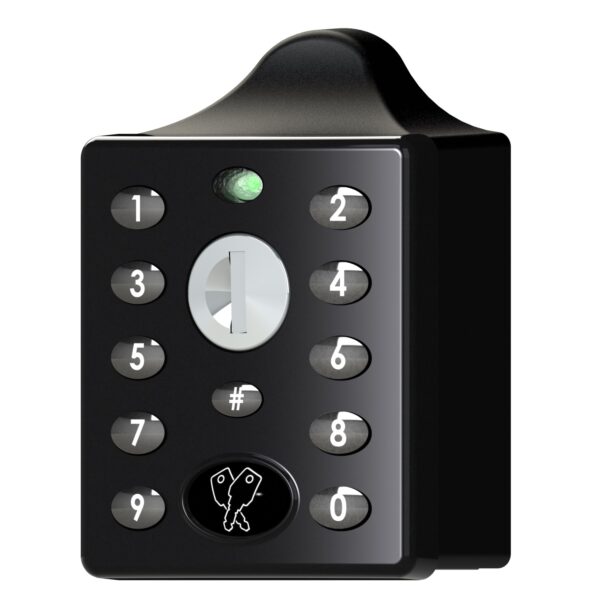

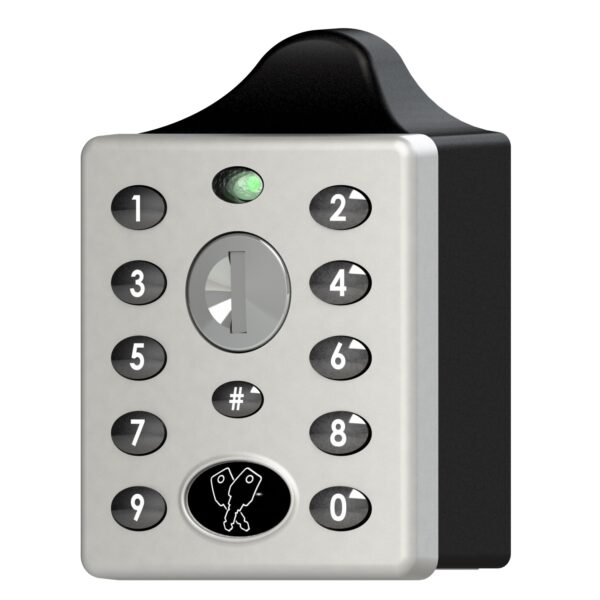

  • Black, silver or white lock face finish
  • 8-digit master code
  • 4-digit user code
  • Mechanical steel override key
  • 2 x AA batteries (included)
  • Up to 80,000 cycles per pair of batteries
  • Battery level indicator
  • Heavy, high quality zinc alloy construction
  • Fits most recessed, multi-point latching systems
  • Simple installation with only two nuts to secure
  • Logo which can be customized with high order volumes
  • User feedback on key press (Audible “beep” which can be disabled)
  • Automatic timed unlock option

Options

  • Can be pre-programmed in public / private mode
  • Can be pre-programmed to specific user and/or master codes
  • Unique key per customer or installation
  • Wide range of colors
  • Customized company logo
