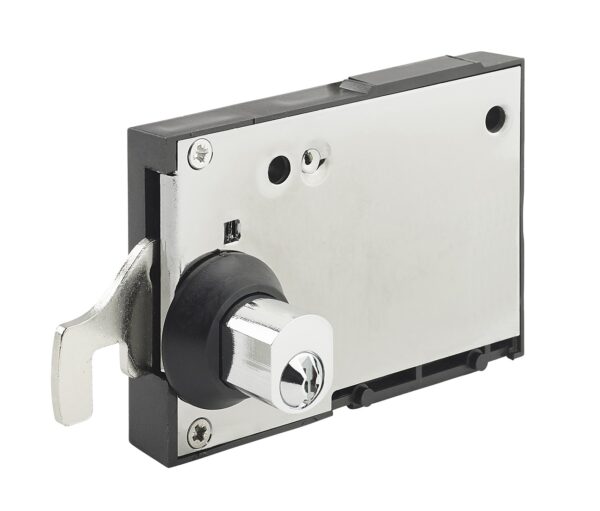

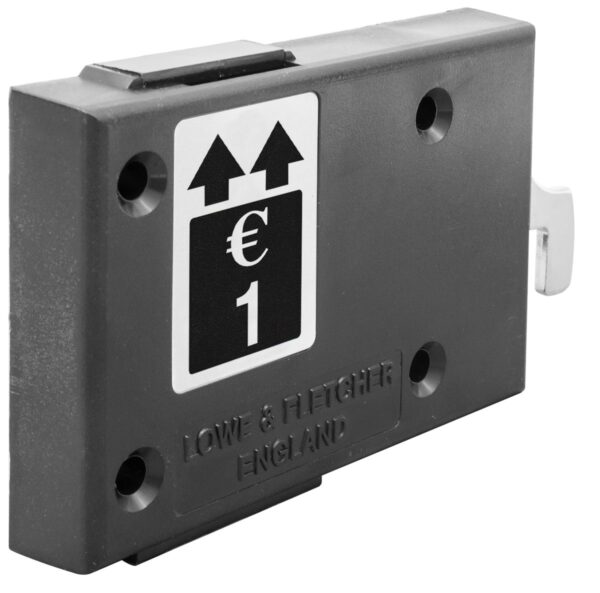

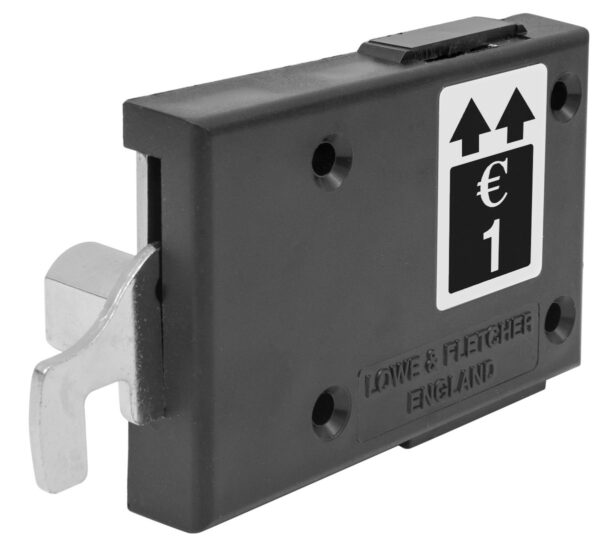

Coin Latch Lock 2764
A coin operated lock 2764 with a slam latch. The lock is available in 2 modes – coin return and coin retain. In both modes the lock is controlled using a master key, making the lock safe and convenient for users and operators. These self-service locks are simple and easy to use and can be installed to lockers or storage units in stadiums or arenas, shopping malls, government buildings, amusement parks and educational institutions to secure personal belongings and valuables.
Lock Description
Please note:
- Right-handed version is to suit a right-hand hinged door
- Left-handed version is to suit a left-hand hinged door
Have a question?
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Height | Head Width | Head Depth | Cylinder | Finish | Handed | Head Shape | Wet Area | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2764512A | 1050 | 5.5 | 22 | 18 | 28.8 | Removable Cylinder | Chrome | Right | Cylindrical | Yes | Contact Sales | |
| 2764522A | 1050 | 5.5 | 22 | 18 | 28.8 | Removable Cylinder | Chrome | Left | Cylindrical | Yes | Contact Sales | |
| 2765512A | 1050 | 5.5 | 22 | 18 | 28.8 | Fixed Cylinder | Chrome | Right | Cylindrical | Yes | Contact Sales | |
| 2765522A | 1050 | 5.5 | 22 | 18 | 28.8 | Fixed Cylinder | Chrome | Left | Cylindrical | Yes | Contact Sales | |
| 2768512A | 2000 | 5.5 | 22 | 18 | 19 | Fixed Cylinder | Chrome | Right | Cylindrical | No | Contact Sales | |
| 2768522A | 2000 | 5.5 | 22 | 18 | 19 | Fixed Cylinder | Chrome | Left | Cylindrical | No | Contact Sales | |
| 2769512A | 2000 | 5.5 | 22 | 18 | 28.8 | Removable Cylinder | Chrome | Right | Cylindrical | No | Contact Sales | |
| 2769522A | 2000 | 5.5 | 22 | 18 | 28.8 | Removable Cylinder | Chrome | Left | Cylindrical | No | Contact Sales |
Standard Features
- Standard finish: Bright chrome nozzle, all components non-ferrous (wet area)
- M Keyed system supplied to order only
- Coin size: Customer selectable – Ø20mm to Ø30mm max, 3.2mm max thickness
- Accessories: Coin tray as standard, lockable coin retain box on request
- 2764 & 2765: in-line pin tumbler cylinder includes escutcheon
- 2768 & 2769: 10 disc barrel supplied with 2 keys fitted with flexible key bows, does not include escutcheon
- Right-Handed Lock is to suit right-hand hinged door
- Left-Handed Lock is to suit left-hand hinged door
Additional Information
Coin Latch Lock 2764 technical drawing
