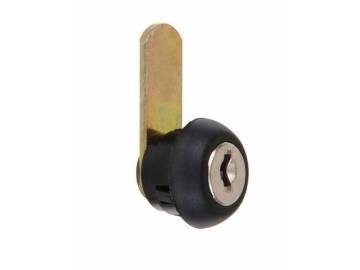

9.5mm Mini Cam Lock F510
A range of 9.5mm mini cam locks available capped or uncapped. These robust cam locks are ideal for use in hygiene and sanitation products such as contactless soap dispensers, paper towel dispensers and hands free liquid soap dispensers.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cap | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| F510 | 200 | 9.5 | 22 | 6 | Uncapped | Black Plastic | Conical | Contact Sales | ||
| F511 | 200 | 9.5 | 22 | 6 | Capped | Black Plastic | Conical | Contact Sales | ||
| F513 | 200 | 9.5 | 22 | 6 | Capped | Black Plastic | Conical | Contact Sales | ||
| F514 | 50 | 9.5 | 22 | 6 | Uncapped | Black Plastic | Conical | Contact Sales | ||
| F515 | 50 | 9.5 | 22 | 6 | Capped | Black Plastic | Conical | Contact Sales | ||
| F578 | 200 | 9.5 | 22 | 6 | Uncapped | Black Plastic | Conical | 0.75 – 2.2 | Contact Sales |
Standard Features
- Standard movements: 1, 8
- Lock Combinations: 50-200
- Standard finish: Black plastic ral 9011
- Mounting hole shape: Round with notches
- 4 fixing clips supplied
- F578: with plastic barrel
- F664: with integrated Mazak insert
- Dimension ‘B’ specification: See Cams
Additional Information
9.5mm Mini Cam Lock F510 technical drawing
