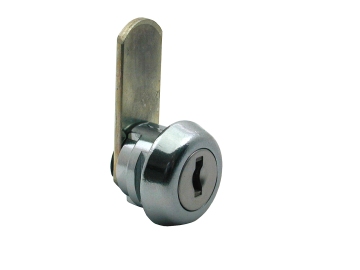

9.5mm Mini Cam Lock F143
A range of 9.5mm mini cam locks suitable for use in sanitation and hygiene products such as restroom combination units, hand sanitizer units and garbage bins. These durable cam locks can be installed flush with the surface of the container making them secure and ideal for use in any public restroom.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cap | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| F143 | 200 | 9.5 | 22 | 6 | Capped | Nickel | Round | 0.8-2.65 | Contact Sales | |
| F292 | 50 | 9.5 | 22 | 6 | Capped | Bright Chrome | Round | 0.8-2.65 | Contact Sales | |
| F324 | 200 | 9.5 | 22 | 6 | Capped | Bright Chrome | Round | 0.8-2.65 | Contact Sales | |
| F336 | 50 | 9.5 | 23 | 6 | Capped | Bright Chrome | Square | 0.8-2.65 | Contact Sales | |
| F337 | 200 | 9.5 | 23 | 6 | Capped | Bright Chrome | Square | 0.8-2.65 | Contact Sales | |
| F338 | 200 | 9.5 | 23 | 6 | Capped | Bright Chrome | Square | 0.8-2.65 | Contact Sales | |
| F347 | 200 | 9.5 | 22 | 6 | Uncapped | Bright Nickel | Round | 0.8-2.65 | Contact Sales | |
| F349 | 200 | 9.5 | 22 | 6 | Uncapped | Bright Nickel | Round | 0.8-2.65 | Contact Sales | |
| F358 | 50 | 9.5 | 22 | 6 | Uncapped | Bright Nickel | Round | 0.8-2.65 | Contact Sales | |
| F387 | 200 | 9.5 | 22 | 6 | Capped | Bright Chrome | Conical | 0.8-2.65 | Contact Sales |
Standard Features
- Standard movements: 3, 8, 9 (F358 moves 3, 8 only)
- Lock Combinations: 50-200
- Standard finish: Bright chrome, bright nickel
- Mounting hole shape: Round with notches
- M Keyed system supplied to order only
- Comprehensive range of cams available: See Cams
Additional Information
9.5mm Mini Cam Lock F143 technical drawing
