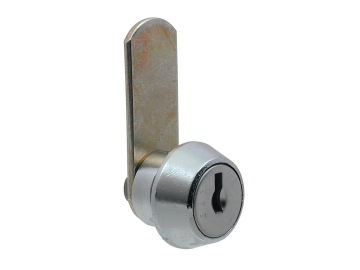

9.5mm Mini Cam Lock 1320
A range of 9.5mm mini cam locks available in bright chrome or bright nickel. Cam locks 4616 and 4617 can be shuttered and greased for greater protection when used outdoors. This makes them ideal for applications such as Automotive Accessories, Enclosures and Mail Boxes.
Lock Options
| Product Code | Key Series | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Max Panel Thickness | Version | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1319 | Snap In Fix | 200 | 9.5 | 23.6 | 8.8 | Bright Chrome | Conical | 1 | Standard | Contact Sales | |
| 1320 | 200 | 9.5 | 23.6 | 8.8 | Bright Chrome | Conical | 5 | Standard | Contact Sales | ||
| 1419 | Snap In Fix | 2000 | 9.5 | 23.6 | 8.8 | Bright Chrome | Conical | 1 | Standard | Contact Sales | |
| 1420 | 2000 | 9.5 | 23.6 | 8.8 | Bright Chrome | Conical | 5 | Standard | Contact Sales | ||
| 4616 | Snap In Fix | 200 | 9.5 | 23.6 | 8.8 | Bright Chrome | Conical | 1 | Shuttered | Contact Sales | |
| 4617 | 200 | 9.5 | 23.6 | 8.8 | Bright Chrome | Conical | 5 | Shuttered | Contact Sales | ||
| 4619 | Snap In Fix | 200 | 9.5 | 23.6 | 8.8 | Bright Chrome | Conical | 1 | Standard | Contact Sales | |
| 4620 | 200 | 9.5 | 23.6 | 8.8 | Bright Chrome | Conical | 5 | Standard | Contact Sales | ||
| 4720 | 500 | 9.5 | 23.6 | 8.8 | Bright Chrome | Conical | 5 | Standard | Contact Sales |
Standard Features
- Standard movements: 1, 2, 3, 4, 8, 9
- Lock Combinations: 200-2000
- Standard finish: Bright chrome
- Mounting hole shape: Round with notches
- M Keyed system supplied to order only
- Dimension ‘B’ Specification: See Cams
Additional Information
9.5mm Mini Cam Lock 1320 technical drawing
