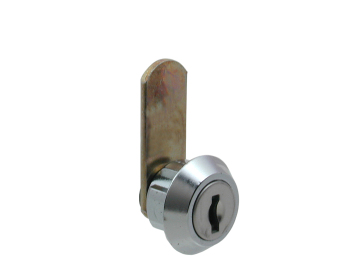

9.5mm Mini Cam Lock 0221
A 9.5mm mini cam lock 0221 in Nickel with a round mounting hole shape. An ideal small cam lock for numerous applications where space is limited or compact dimensions are required such as furniture and personal storage.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Finish | Head Shape | Max Panel Thickness | Movement | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0221 | 100 | 9.5 | 22 | 5 | Clip | Nickel | Conical | 4 | 3 | Contact Sales | |
| 0257 | 200 | 9.5 | 22 | 4.7 | Nut + Washer | Nickel | Conical | 4 | 3 | Contact Sales |
Standard Features
- Standard movements: 3
- Lock combinations: 100-200
- Standard finish: Nickel
- Mounting hole shape: Round with notches
- M Keyed system supplied to order only
- Dimension ‘B’ & ‘X’ Specification: See Cams
Additional Information
9.5mm Mini Cam Lock 0221 technical drawing
