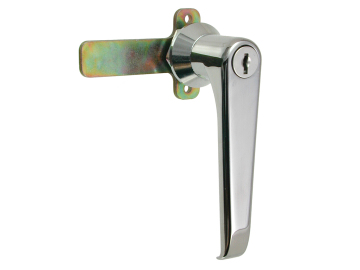

9mm or 11mm IP65 Rated L-Handle B72
A 9mm or 11mm L-handle B72 in bright chrome. This handle is IP65 rated making it ideal for applications such as garage doors, Enclosures and Mail Boxes. An ‘O’ ring prevents water from penetrating into the application through the lock mechanism. It is essential for the customer to fit a sealing ring between the head of the lock and the door of the of the application.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Handle Depth | Cap | Finish | Handle Length | IP65 | Lock Type | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 1697 | 500 | 9 | 44 | Dust Cover | Bright Chrome | 105 | Yes | Locking | Contact Sales | |
| B72 | Contact sales | 9 | 44 | Bright Chrome | 105 | Yes | Locking | Contact Sales | ||
| B85 | Contact sales | 9 | 44 | Bright Chrome | 105 | Yes | Locking | Contact Sales | ||
| B86 | Contact sales | 11 | 44 | Bright Chrome | 105 | Yes | Locking | Contact Sales | ||
| F13 | 11 | 44 | Bright Chrome | 105 | Yes | Locking | Contact Sales | |||
| F239 | 11 | 44 | Bright Chrome | 105 | Yes | Non-Locking | Contact Sales |
Standard Features
- Standard movements: 1, 2
- Lock Combinations: Refer to sales department
- Standard finish: Bright chrome (1697 with dust cover)
- Mounting hole shape: Special (see technical drawing)
- Standards: NF.C. 20010 April 1977 IPF 55 (French); IP65
- Dimension ‘X’ specification: Body Length
- Comprehensive range of Cams available: See Cams and Accessories for IP Rated Locks
Additional Information
9mm or 11mm IP65 Rated L-Handle B72 technical drawing
