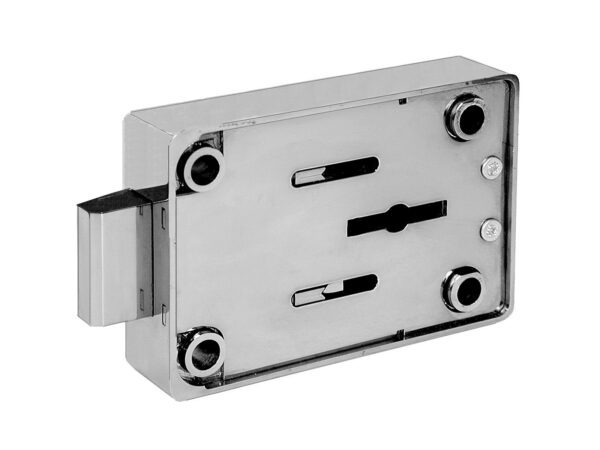

8-Lever Safe Lock 3012
An 8-lever safe lock 3012 available with 80,000 lock combinations. Installed with anti-pick levers as standard, this lock is manufactured without key guide pin and has been tested and certified to a VDS class 1 rating. This means the lock is suitable for use in safes and other high security applications.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Height | Head Width | Head Depth | Door Type | Finish | Key | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3012060A | 80,000 | 7 | 60 | 88 | 22 | Right Hinged | Self color | Retained | 7 | Contact Sales | |
| 3012080A | 80,000 | 7 | 60 | 88 | 22 | Left Hinged | Self color | Retained | 7 | Contact Sales |
Standard Features
- Standard movements: 6, 8
- Lock Combinations: 80,000
- Standard finish: Self colour
- Vds Class 1 rating
- ‘A’ Dimension specification: Double bitted key available in four lengths; 15mm, 40mm, 70mm or 115mm
- Anti-pick levers fitted as standard
- High precision die cast and pressed steel components
- High-strength bolt drilled and tapped M4 x 12
Additional Information
8-Lever Safe Lock 3012 technical drawing
