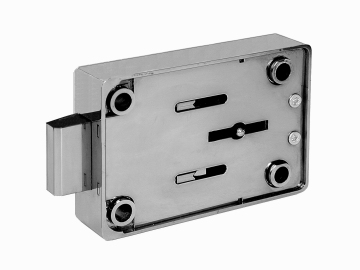

8-Lever Safe Lock 3009
An 8-lever safe lock 3009 available with 10,000 combinations. Installed with anti-pick levers as standard, this lock is ideal for secure applications such as post, package and drop boxes.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Height | Head Width | Head Depth | Door Type | Finish | Key | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3009060A | 10000 | 7 | 60 | 88 | 22 | Right Hinged | Self color | Retained | 7 | Contact Sales | |
| 3009080A | 10000 | 7 | 60 | 88 | 22 | Left Hinged | Self color | Retained | 7 | Contact Sales | |
| 3009160A | 10000 | 7 | 60 | 88 | 22 | Right Hinged | Self color | Removable | 7 | Contact Sales | |
| 3009180A | 10000 | 7 | 60 | 88 | 22 | Left Hinged | Self color | Removable | 7 | Contact Sales |
Standard Features
- Standard movements: 6, 8
- Lock Combinations: 10,000
- Standard finish: Self colour
- ‘A’ Dimension specification: Double bitted key available in four lengths 15, 40, 70 or 115mm
- Anti-pick levers fitted as standard
- High precision die cast and pressed steel components
- High strength bolt drilled and tapped as requested
- Can be keyed alike
Additional Information
8-Lever Safe Lock 3009 technical drawing
