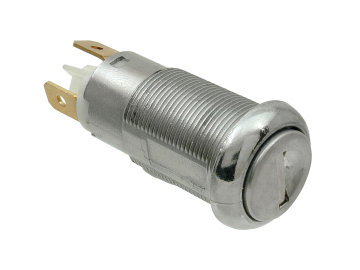

8-Disc In-line Key Switch 5015
A range of 8-disc, shuttered, in-line key switches available with or without a stainless steel cap. Once connected to a C.K. low voltage switch, these key switches form part of a circuit that is controlled by the key. This makes it ideal for use in Enclosure applications such as circuit breakers and switchgears.
Lock Options
| Product Code | Combinations | Body Length | Head Height | Head Width | Head Depth | Cap | Finish | Head Shape | Key Free | Total Movement | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2915-01-2A | 2000 | 45.3 | 23.2 | 23.2 | 5 | Uncapped | Chrome | Round | 1 | 90° | Contact Sales |
| 2915-01-4A | 2000 | 45.3 | 23.2 | 23.2 | 5 | Capped | Chrome | Round | 1 | 90° | Contact Sales |
| 2915-05-2A | 2000 | 45.3 | 23.2 | 23.2 | 5 | Uncapped | Chrome | Round | 1, 4 | 90° | Contact Sales |
| 2915-05-4A | 2000 | 45.3 | 23.2 | 23.2 | 5 | Capped | Chrome | Round | 1, 4 | 90° | Contact Sales |
| 5015-01-2A | 2000 | 45.3 | 23.2 | 23.2 | 5 | Uncapped | Chrome | Round | 1 | 90° | Contact Sales |
| 5015-01-4A | 2000 | 45.3 | 23.2 | 23.2 | 5 | Capped | Chrome | Round | 1 | 90° | Contact Sales |
| 5015-05-2A | 2000 | 45.3 | 23.2 | 23.2 | 5 | Uncapped | Chrome | Round | 1, 4 | 90° | Contact Sales |
| 5015-05-4A | 2000 | 45.3 | 23.2 | 23.2 | 7 | Capped | Chrome | Round | 1, 4 | 90° | Contact Sales |
Standard Features
- Standard movements: Key free 1, 4
- Lock Combinations: 2,000
- Standard finish: Chrome, stainless steel cap (where applicable)
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Switch Type Available: C.K. (Low Voltage) Switch
- Soldering Specification: see Technical Resources
Electrical Specification
- Proof voltage: 1K V
- Current carrying capacity (non-shorting): 2 A
- Contact resistance (switch resistive load): 2 A 24 V
- Insulation resistance: >250G Ohm
- Initial contact resistance: < 100m Ohm
- Minimum operating life: 10,000 cycles
- Contact material: silver plated brass
- Body material: Acetal
- Operating temperature: -20 to 65°C
Additional Information
8-Disc In-line Key Switch 5015 technical drawing
| Product Code | Total Movement | Key Free | Switch Configuration |
| 5015-01-2A | 90° | 1 | 1 Pole Off/On |
| 5015-01-4A | 90° | 1 | 1 Pole Off/On |
| 5015-05-2A | 90° | 1, 4 | 1 Pole Off/On |
| 5015-05-4A | 90° | 1, 4 | 1 Pole Off/On |
| 2915-01-2A | 90° | 1 | 1 Pole/2 Way |
| 2915-01-4A | 90° | 1 | 1 Pole/2 Way |
| 2915-05-2A | 90° | 1, 4 | 1 Pole/2 Way |
| 2915-05-4A | 90° | 1, 4 | 1 Pole/2 Way |
