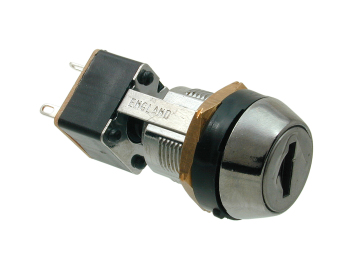

8-Disc Clip-on Key Switch 3726
A series of 8-disc M.S, clip-on key switches available in bright chrome with a double D mounting hole shape. Once connected to a M.S. mains voltage switch, the 3726 key switches form part of a circuit that is controlled by the key. This makes it ideal for use in Enclosure applications such as switchgears and fire alarm systems. It is recommended that, when these locks are installed, the key is turned to position “1” and removed for ease of switch alignment.
Lock Options
| Product Code | Combinations | Body Length | Head Height | Head Width | Head Depth | Head Shape | Max Panel Thickness | Total Movement | Inquire |
|---|---|---|---|---|---|---|---|---|---|
| 3726-05-2A | 2000 | 47.7 | 23 | 23 | 7 | Conical | 3 | 90° | Contact Sales |
| 3726-12-2A | 2000 | 47.7 | 23 | 23 | 7 | Conical | 3 | 180° | Contact Sales |
| 3726-18-2A | 2000 | 47.7 | 23 | 23 | 7 | Conical | 3 | 360° | Contact Sales |
| 3726-46-2A | 2000 | 47.7 | 23 | 23 | 7 | Conical | 3 | 270° | Contact Sales |
| 3726-49-2A | 2000 | 47.7 | 23 | 23 | 7 | Conical | 3 | 150° | Contact Sales |
| 3726-50-2A | 2000 | 47.7 | 23 | 23 | 7 | Conical | 3 | 120° | Contact Sales |
Standard Features
- Standard movements: Key free 1, 4, 7, 10
- Lock Combinations: 2,000
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- M Keyed system supplied to order only
- Switch Type Available: M.S. (Mains Voltage) Switches
- Soldering Specification: see Technical Resources
Additional Information
8-Disc Clip-on Key Switch 3726 technical drawing
| Product Code | Total Movement | Key Free |
| 3726-05-2A | 90° | 1, 4 |
| 3726-50-2A | 120° | 1, 4 |
| 3726-49-2A | 150° | 1, 4 |
| 3726-12-2A | 180° | 1, 4, 7 |
| 3726-46-2A | 270° | 1, 4, 7, 10 |
| 3726-18-2A | 360° | 1, 4, 7, 10 |
