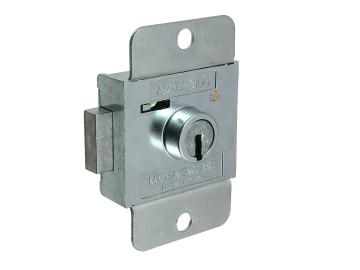

7-Lever Dead Bolt Rim Lock 2201
A range of 7-lever rim locks with a dead bolt closing action available in a zinc plate finish. The mounting holes as shown on the technical drawing below are standard, but can be varied to suit individual requirements. These locks are normally supplied with the key free in the locked and unlocked positions, however they can also be supplied with the key trapped in the unlocked position. Ideal for use on many applications these locks are commonly found on enclosures, post and package boxes.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Max Panel Thickness | X Dimension | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 2201-5100 | 900 | 6.7 | 16 | 6.7 | Zinc Plate | Cylindrical | 6.7 | 6.7 | Contact Sales | |
| 2204-5100 | 900 | 6.7 | 16 | 6.7 | Zinc Plate | Cylindrical | 6.7 | 6.7 | Contact Sales | |
| 2207-5100 | 900 | 6.7 | 16 | 17 | Zinc Plate | Cylindrical | 6.7 | 17 | Contact Sales | |
| 2210-5100 | 900 | 6.7 | 16 | 23.3 | Zinc Plate | Cylindrical | 6.7 | 23.3 | Contact Sales | |
| 2211-5100 | 900 | 6.7 | 16 | 29.6 | Zinc Plate | Cylindrical | 6.7 | 29.6 | Contact Sales |
Standard Features
- Lock Combinations: 900
- Standard finish: Zinc plate
- M Keyed system supplied as standard
- Locks operated by flat-type key
Additional Information
7-Lever Dead Bolt Rim Lock 2201 technical drawing
