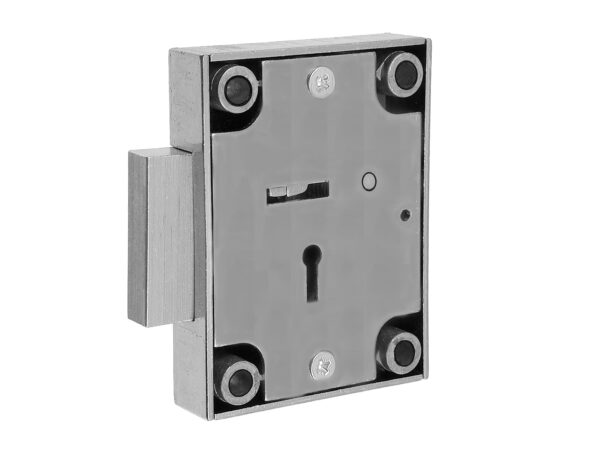

7-Lever Safe Lock 2802
A 7-lever safe lock 2802 available with 1,600 combinations. This lock is supplied with reinforced mounting hole spacers and anti-pick levers as standard. It also has the option of a slam bolt or dead bolt closing action. This makes it ideal for use on post, package and drop box applications.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Height | Head Width | Head Depth | Finish | Lock Type | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 2802 | 1600 | 5.4 | 81 | 60.3 | 16.5 | Zinc Plate | Slam Bolt | 5.4 | Contact Sales | |
| 2802-07016G | 1600 | 5.4 | 81 | 60.3 | 16.5 | Zinc Plate | Dead Bolt | 5.4 | Contact Sales |
Standard Features
- Lock Combinations: 1600
- Standard finish: Zinc plate & passivate, steel case with lever mechanism in brass, phospher bronze springs and steel keys (nickel plated)
- Available with slam bolt or dead bolt
Specification
- Can be fitted with trapped key feature in unlock position
- Lock supplied with reinforced fixing hole spacers
- Anti-pick levers as standard
- Additional differs available on request
- Available with Ø19,5 key entry bush 2802-0200
Additional Information
7-Lever Safe Lock 2802 technical drawing
