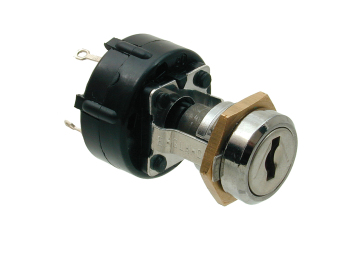

5-Disc Mini Key Switch 5011
A series of 5-disc, mini key switches available in bright chrome with a double D mounting hole shape. Once connected to a C.K. low voltage or M.S. mains voltage switch, the key switch forms part of a circuit that is controlled by the key. This makes it ideal for use in Enclosure applications such as circuit breakers and fire alarm systems. It is recommended that, when these locks are installed, the key is turned to position “1” and removed for ease of switch alignment.
Lock Options
| Product Code | Combinations | Body Length | Head Width | Head Depth | Key Free | Max Panel Thickness | Total Movement | Inquire |
|---|---|---|---|---|---|---|---|---|
| 5011-01-2A | 200 | 37.9 | 17 | 5 | 1 | 3.5 | 90° | Contact Sales |
| 5011-03-2A | 200 | 37.4 | 17 | 5 | 1, 7 | 3.5 | 180° | Contact Sales |
| 5012-05-2A | 200 | 37.4 | 17 | 5 | 1, 4 | 3.5 | 90° | Contact Sales |
| 5012-12-2A | 200 | 37.4 | 17 | 5 | 1, 4, 7 | 3.5 | 180° | Contact Sales |
Standard Features
- Standard movements: key free at 1, 4, 7
- Lock Combinations: 200
- Standard finish: Bright chrome
- Mounting hole shape: Double D
- Switch Type Available: C.K. (Low Voltage) Switches or M.S. (Mains Voltage) Switches
Additional Information
5-Disc Mini Key Switch 5011 technical drawing
| Product Code | Total Movement | Key Free |
| 5011-01-2A | 90° | 1 |
| 5011-03-2A | 180° | 1, 7 |
| 5012-05-2A | 90° | 1, 4 |
| 5012-12-2A | 180° | 1, 4, 7 |
