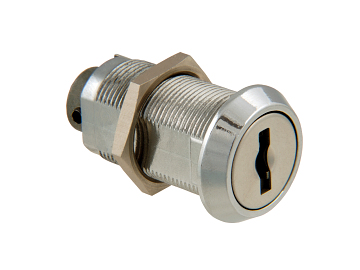

32.2mm Override Lock C235

A 32.2mm override lock that is used in electrical applications such as industrial doors and gates or roller shutters. The lock connects to the circuit and acts as an override in situations where emergency access may be required.

View Lock Details
Featured Technicals
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Head Shape Max Panel Thickness Inquire
C235 2000 32.3 24 4.7 Conical 22 (standard Nut) & 44 (special nut) Contact Sales
Standard Features
  • Lock Combinations: 2,000
  • Panel thickness: Standard nut 22mm, special nut B4768 45mm
  • Fixing hole shape: Double D
  • M Keyed system supplied to order only

Accessories

  • Ø 4mm x 200mm cord
  • Flat and toothed washers

Additional Information

32.2mm Override Lock C235 technical drawing
