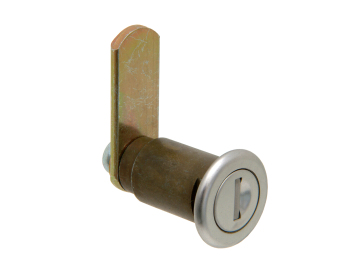

31mm Cam Lock F343
A 31mm cam lock F343 with an olive drab housing and stainless steel cap finish. This cam lock is ideal for various applications including Mail Boxes and Wooden and Metal Office Furniture.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| F343 | 2000 | 31 | 25 | 3.3 | Screw + Washer | Olive Drab | Round | 1.63 – 2.05 | Contact Sales |
Standard Features
- Standard movements: 1, 3
- Lock Combinations: 2000
- Standard finish: Olive drab housing, stainless steel cap
- Mounting hole shape: Round with notches
- M Keyed system supplied to order only
- Barrel assembled with o-ring and greased
- Comprehensive range of cams and accessories available
Additional Information
31mm Cam Lock F343 technical drawing
