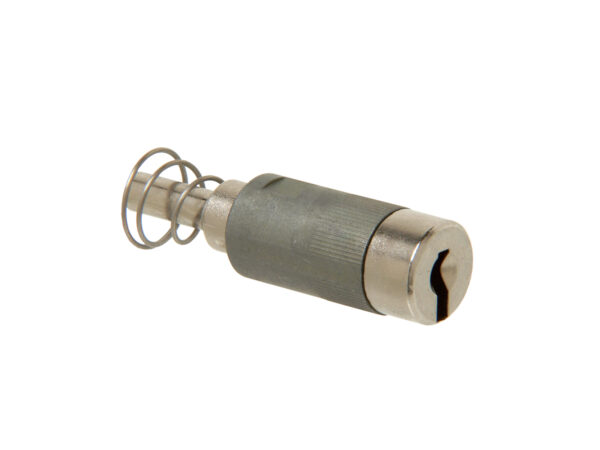

26mm Push Lock B776
A series of 26mm push locks available in nickel. The push-to-lock action makes this lock ideal for many applications including office and healthcare furniture.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Finish | Head Shape | Stroke | Total Movement | X Dimension | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| B776 | 1* | 33 | 12.8 | Nickel | Cylindrical | 6 | 45° | 40 | Contact Sales | |
| B843 | 500 | 33 | 12.8 | Nickel | Cylindrical | 6 | 45° | 41 | Contact Sales | |
| B957 | 1* | 33 | 12.8 | Nickel | Cylindrical | 6 | 45° | 41 | Contact Sales |
Standard Features
- Lock Combinations: 1* – 500 (*other combinations can be supplied upon demand)
- Standard finish: Nickel
- Mounting hole shape: Round
- M Keyed system supplied to order only
- Stroke length: 6mm
Additional Information
26mm Push Lock B776 technical drawing
