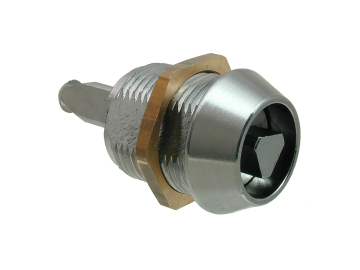

23.7mm Tool Operated Cam Lock 5502
A 23.7mm tool operated cam lock 5502 available in chrome plate. This lock requires a spring clip to be installed to the customers’ cabinet to engage the lock spindle. It is also requires a special tool to open the lock. This makes it ideal for applications such as Enclosures or anywhere additional security is required.
Lock Options
| Product Code | Key Series | Housing Mounting | Body Length | Head Width | Head Depth | Finish | Head Shape | Key Number | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 5502-0100 | Nut mounting | 23.7 | 26 | 8.5 | Chrome Plate | Conical | 8005401 | 15 | Contact Sales |
Standard Features
- Standard movements: 1, 2
- Standard finish: Chrome plate
- Panel thickness: 15mm
- Mounting hole shape: Double D
Additional Information
23.7mm Tool Operated Cam Lock 5502 technical drawing
