22mm Rim Lock 0475
A series of 22mm rim locks available in bright nickel or black KTL. This lock has a removable barrel and is ideal for use on items such as cupboards and cabinets.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Depth | Movement | Nozzle Diameter | Inquire |
|---|---|---|---|---|---|---|---|
| 0471 | 500 | 22 | 2 | 3 | 16.3 | Contact Sales | |
| 0471 B | 500 | 22 | 2 | 3 | 17.8 | Contact Sales | |
| 0475 | 500 | 22 | 2 | 3 | 16.3 | Contact Sales | |
| 0475 B | 500 | 22 | 2 | 3 | 17.8 | Contact Sales |
Standard Features
- Standard movements: 3 (180° CW)
- Standard cam stroke: 14mm
- Nozzle diameter: 16.3mm or 17.8mm
- Lock Combinations: 500
- Standard finish: Bright nickel, black KTL
- Can be supplied with Master Key and Sub-Master Key systems (see below)
Additional Information
22mm Rim Lock 0475 technical drawing
Key Options

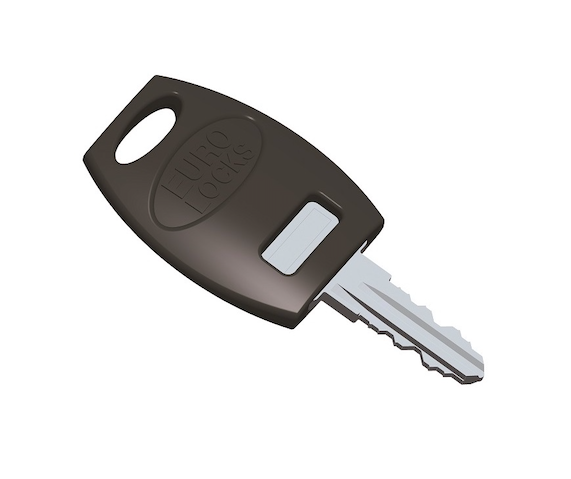

Capped Keys
| Key Code | Key Combinations |
| B8849 | SMT001 – SMT250 |
| B8850 | SMT301 – SMT550 |

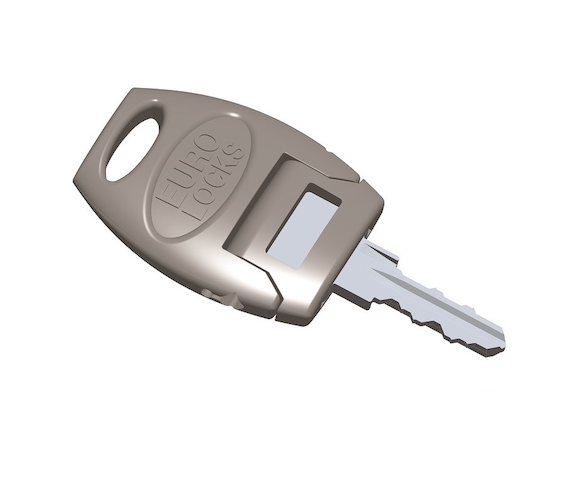

Split Keys
| Key Code | Key Combinations |
| B8752 | SMT001 – SMT250 |
| B8765 | SMT301 – SMT550 |

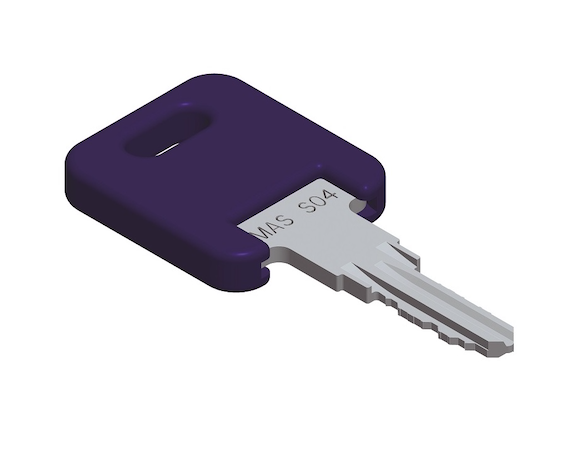

General Master Key
| Key Code | |
| MAS/S04 | Opens the complete range of combinations in this series |

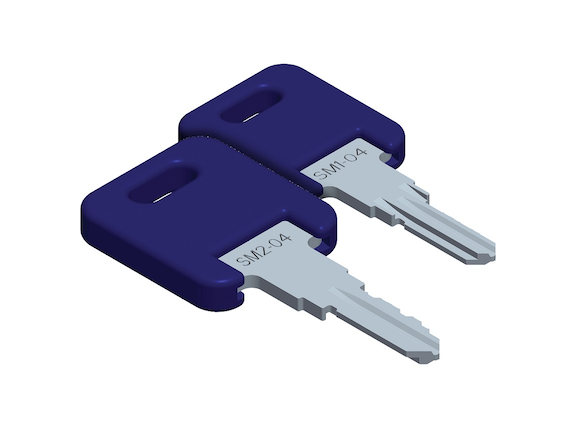

Sub-Master Keys
| Key Code | Key Combinations |
| SM1-04 | SMT001 – SMT250 |
| SM2-04 | SMT301 – SMT550 |

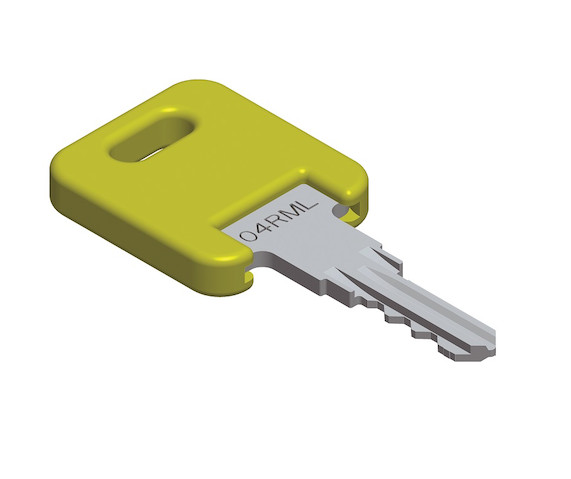

Removal Key
| Key Code | |
| B8754 | Barrel extraction key for all combinations in this series |
