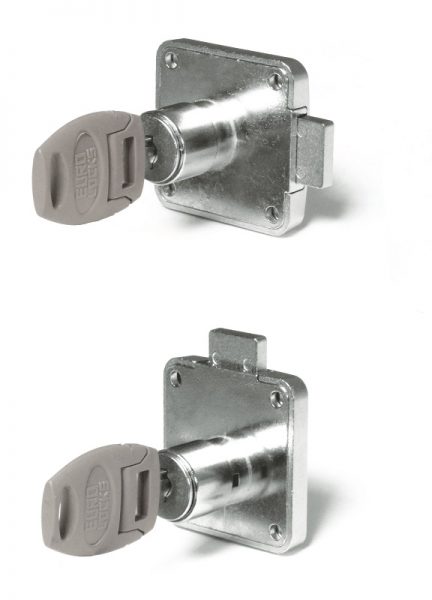

22mm Rim Lock 0456 B
A 22mm rim lock 0456 B available in bright nickel or black KTL. This lock has a removable barrel and is ideal for use on items such as cupboards and cabinets.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Depth | Movement | Nozzle Diameter | Inquire |
|---|---|---|---|---|---|---|---|
| 0456 B | 500 | 22 | 2 | 3 | 17.8 | Contact Sales | |
| 0457 B | 500 | 22 | 2 | 3 | 17.8 | Contact Sales |
Standard Features
- Standard movements: 3 (180° CW)
- Standard cam stroke: 8mm
- Nozzle diameter: 17.8mm
- Lock Combinations: 500
- Standard finish: Bright nickel, black KTL
- Can be supplied with Master Key and Sub-Master Key systems (see below)
Accessories available:
- Rosette C4236 (17,8 mm nozzle)
- Striker plate 7015802
Additional Information
22mm Rim Lock 0456 B technical drawing
Key Options
slide 1 to 2 of 6
Capped Keys
| Key Code | Key Combinations |
| B8849 | SMT001 – SMT250 |
| B8850 | SMT301 – SMT550 |
